| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $95.23 | $93.28 | $90.37 | $86.48 | Contact US |
G1009 10-inch Embedded HD Industrial Monitor 1024x768 Hook Mount TFT Display with BNC/VGA/AV/HDMI-compatible Ports
$109.57
G121SN01 V3 Color Active Matrix LCD Display Panel Designed for Various Industrial Applications
$88.42
RTU-307D NET-07D 8AI-8DI-8DO Data Acquisition Module IO Module (RS485+RS232) for Industrial Use
$76.89

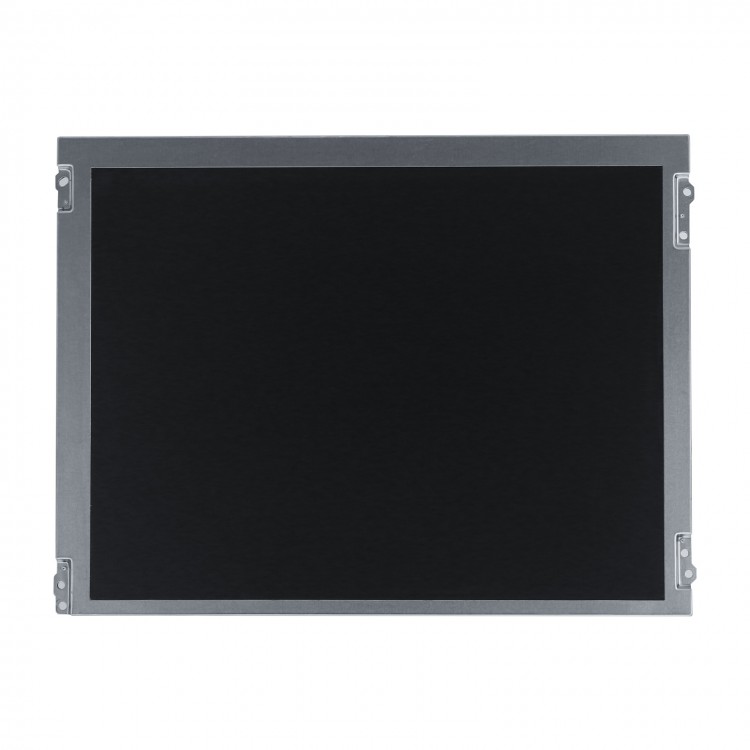

New Original G121SN01 V4 12.1 Inch TFT LCD Display LCD Panel Module for AUO Industrial Application
Basic Parameters:
- Manufacturer: for AUO
- Size: 12.1"
- Resolution: 800x600
- Resolution Name: SVGA
- Display scale: 4:3
- Pixel Arrangement: RGB vertical bar
- Pixel Pitch: 0.1025x0.3075 mm
- Panel Composition: LCD screen
- Technology: a-Si TFT-LCD
- Applications: Industrial
- Panel Features: Grayscale Optional, White LED, Flip Display, With LED Driver, Matte Surface, Wide Viewing Angle, and Wide Temperature
Photovoltaic Parameters:
- Display mode: TN, constant white display and transmissive
- Luminance: 450 nits
- Contrast Ratio: 700:1
- Color: 262K/16.2M
- Color Saturation: 55%NTSC (CIE1931)
- Response: 25/10 (Tr/Td) ms
- Viewing Angle: 65/75/80/80 (Up/Down/Left/Right)
- The Best View: 6 o'clock
- White Field Chroma: X:0.313; Y:0.329
- White Field Dynamic: 1.33 (5 points)
- Scanning Frequency: 60Hz
- Reverse Scan: Flip (180°)
- Kind of Signal: LVDS
- Interface: LVDS
- Signal Interface Definition: LVDS-20P1C8B-080B
- Drive-screen voltage: 3.3V
- Input Current: 280mA
- Kind of Signal Interface: Terminal
- Brand of Signal Interface: for E&T
- Model of Signal Interface: MSB240420E
- Pitch of Signal Interface: 1.25 mm
- Pin of Signal Interface: 5 pins
Structural Parameters:
- Operation Temperature: -30°C to 85°C
- Operation Humidity: 5% ~ 95%
- Storage Temperature: -30°C to 85°C
- Storage Humidity: 5% ~ 95%
- Surface Technology: Matte, Hard coating (3H)
- Active Area: 246.0 x 184.5mm/9.7 x 7.3"
- Display Area: 249.05x188.3
- Outline: 279.00 x 209.00 x 9.00mm/11 x 8.2 x 0.4"
- Touch Panel: none
- Lamp Position: Side-entry light source
- Backlight: WLED
- Lamp Number: 9S2P pcs
- Lamp Shape: 2 strings
- Life Time of Lamp: 50K Hours
- Voltage of Lamp: 28.8V
- Current of Lamp: 80mA
- Driver of Backlight: Includes LED driver module
- Kind of Backlight Interface: Terminals
- Brand of Backlight Interface: for E&T
- Model of Backlight Interface: 3808K-F05N-02R
- Quantity of Backlight Interface: 1
- Pitch of Backlight Interface: 1.25 mm
- Backlight Interface Define: LVDS-20P1C8B-080B
Package Included:
- 1 x LCD Display
