NEWKER NEW990TDCa-2 2 Axis CNC Controller English Version + 5M/16.4FT Cable for CNC Lathe Grinder

NEWKER NEW990TDCa-2 2 Axis CNC Controller English Version + 5M/16.4FT Cable for CNC Lathe Grinder

Features:
- Intelligent human-machine interface
- Bus Modbus, EtherCAT technology and technology for ARM+DSP+FPGA
- U disk and RS232 interface, supporting U disk DNC function
- 128M user program space and unlimited number of programs. It can be expanded to 32G
- Adapt to multi-turn absolute servo motor. Faster and more accurate
- The maximum fast moving speed is 300m/min, and the processing speed is 0.01~30m/min
- Short straight program pre-reading technology to meet high-speed fine cutting needs
- Network remote technology and online online direct diagnosis of user system
- Absolute motor (multi-turn 17-bit) control technology
- The interpolation period is 2ms, and the control accuracy is 0.1um
- Grating ruler full closed-loop control technology and processing accuracy ≤2um

System Functions:
- Number of control axes: 2 axes (X, Z)
- Minimum programming: 0.001mm
- Maximum programming: ±99999.999mm
- Maximum speed: 30m/min
- Feed speed: 0.001~15m/min
- Manual continuous mode: one axis or two axes simultaneously
- Interpolation method: straight, arc and thread interpolation
- Tool compensation: length compensation and tip radius C compensation
- Tool compensation input: trial cut measurement input method
- Spindle function: gear, dual analog control and rigid tapping
- Handwheel function: panel type and external handheld type
- Handwheel machining: programmed handwheel machining function
- Screensaver function: Screen saver function
- Tool post function: 99 in total, including gang tool posts and electric tool posts
- Communication function: RS232 and U disk interfaces
- Compensation function: tool compensation, clearance compensation, screw compensation and radius compensation
- Program editing: relative/absolute programming and hybrid programming
- Limit function: soft limit and hard limit
- Thread function: Metric and imperial, straight thread, tapered thread, etc.
- Read-ahead function: short straight line pre-processing 10,000 rows
- Password protection: Multi-level password protection
- Input and output: bus I/O points 48x32
- PLC programming: Users can freely design PLC functions
- Acceleration and deceleration control: linear acceleration and deceleration, and exponential acceleration and deceleration
- Number of encoder lines: Any setting
- User macro program: Yes
- Electronic gear function: Yes

System G Code:
- Quick positioning: G00
- Linear interpolation: G01
- Circular interpolation: G02/G03
- Thread cutting: G32
- Cylindrical or cone cutting cycle: G90
- End face cutting cycle: G94
- Thread cutting cycle: G92
- Tapping fixed cycle: G93
- Outer circle roughing cycle: G71
- End face roughing cycle: G72
- Closed cutting cycle: G73
- End face deep hole drilling cycle: G74
- Outer diameter grooving cycle: G75
- Composite thread cutting cycle: G76
- Cycle of program: G22, G800
- Local coordinate system: G52
- Detection jump instructions: G31, G311
- Polar programming: G15, G16
- Metric and imperial programming: G20, G21
- Coordinate setting and bias: G184, G185
- Workpiece coordinate system: G54-G59
- Tool radius C compensation instructions: G40, G41, G42
- Accurate positioning/continuous path processing: G60/G64
- Constant line speed cutting: G96/G97
- Feed mode instructions: G98, G99
- Return to the program start point instruction: G26
- Return fixed-point commands: G25, G61, G60
- Return to reference point: G28
- Suspension command: G04
- Accessibility: S, M, T

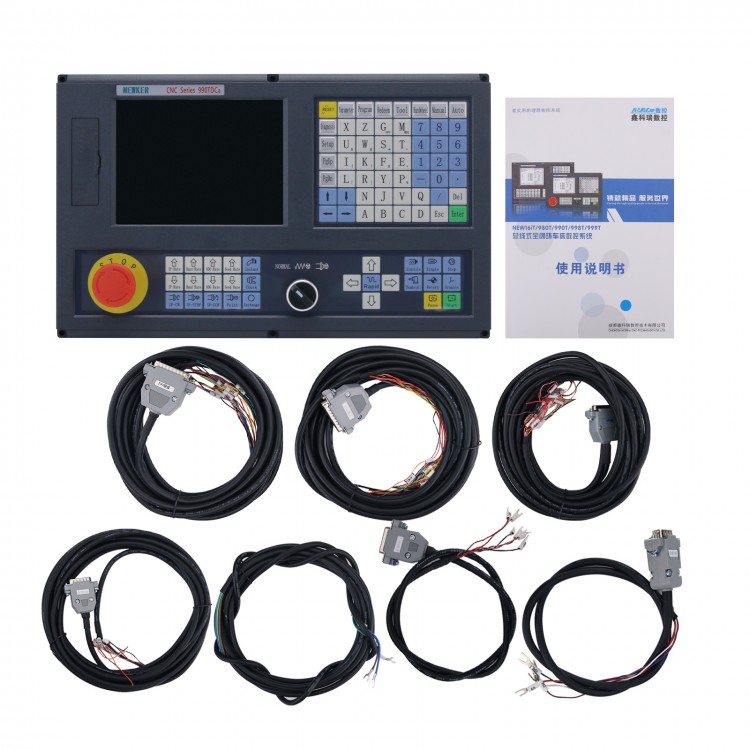

Package Included:
- 1 x CNC Controller
- 1 x 5M/16.4FT Cable
