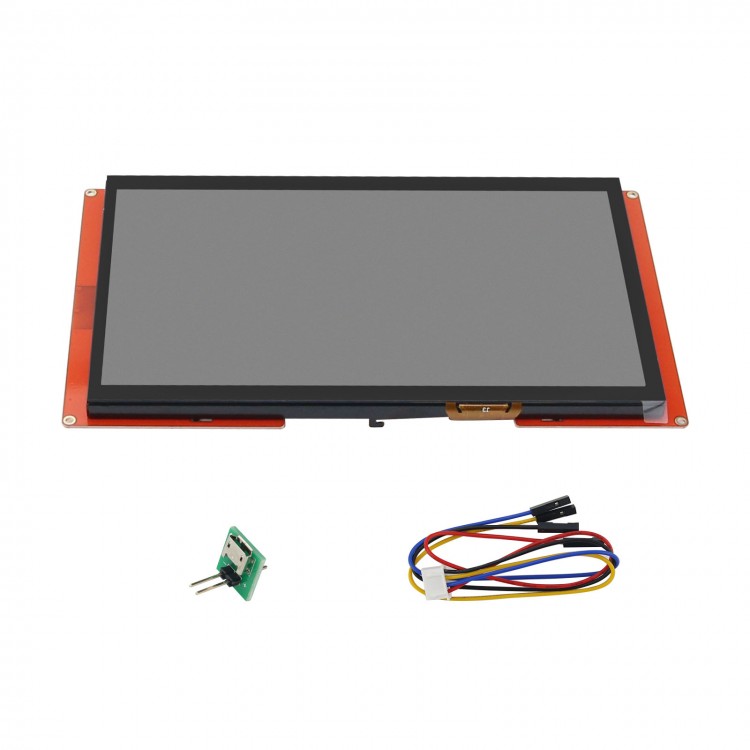

Nextion NX1060P101-011C-I 10.1" HMI Touch Display IPS LCD Module Display Capactive Touchscreen

Availability: In stock, usually dispatched in 1 business day

  • Price:$149.07
  • Price in reward points: 1491 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $146.09 $143.11 $138.64 $132.67 Contact US
Quantity:

Nextion NX1060P101-011C-I 10.1" HMI Touch Display IPS LCD Module Display Capactive Touchscreen

Specifications:
EEPROM: 1024 bytes
RAM: 512 KB
Instruction Buffer: 1024 bytes
Interface: XH2.54 4 pin TTL serial interface
Input Voltage: 4.7-7 V  (5V standard)
Input Current: 800mA (max brightness), 170mA (sleep mode)
Recommended Power: 5V minimum 2A
Speaker: 0.5 watt rated capacity, impedance of 16Ω
Screen Size: 10.1 inch
Screen Resolution: 1024x600 pixels
Screen Brightness: 300cd/m^2, (0~300 nit, the interval of adjustment is 1%)
Backlight Lifetime (average): >30,000 hours
Visual Area: 222.72mm(L)×125.28mm(W)
Size: 258 x 152 x 11.5mm
Certificates: CE/EMC, RoHS

Features:
-Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino.
-RGB 65K true to life colors capacitive IPS touchscreen.
-128MB flash memory for user application code and data.
-More powerful hardware in terms of MCU, flash storage and SRAM
-Ability to play audio, video and animation options
-Supports more advanced software features and functions such as transparent components, loading effects, drag and drop function, etc.
-On board micro-SD card slot for program upgradation, FAT32. Suitable for up to 32GB SD card.
-Micro USB power supply plug.
-Built-in RTC.
-Data can be saved on flash memory.
-GPIO pins (2 PWM capable)
-Larger flash memory.

Package List:
-1 Set of Capactive Touch Display
