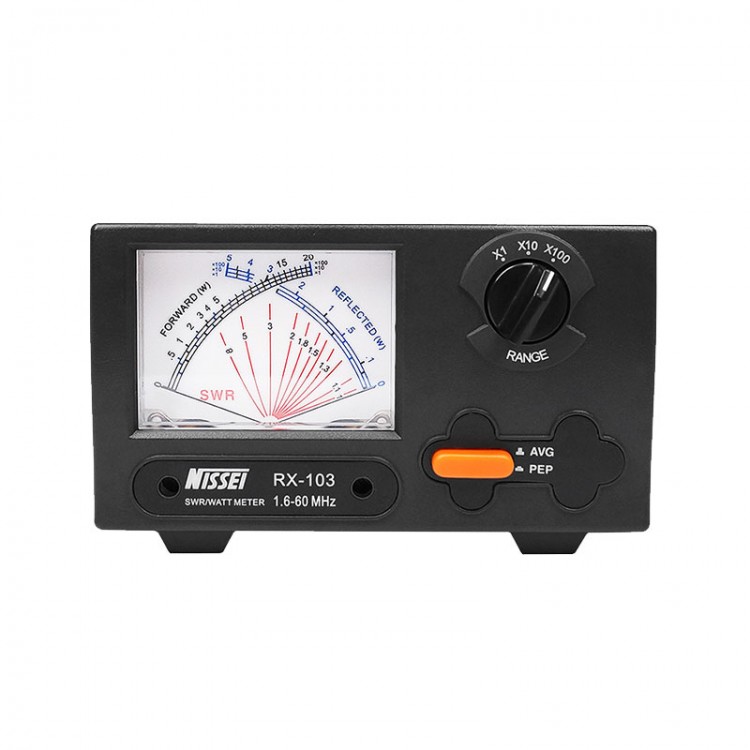

NISSEI Mini RX-103 SWR/Watt Meter 1.6-60MHz HF/V/U Band 2KW High Quality Power Meter for Walkie Talkie
Description:
- RS-103 can measure forward and reverse power, as well as forward RF power readings. It can switch to any peak average power SSB and AM transmitter power (REP).
- The RS-103 has a measurable power range of up to 2KW.
- The structure with low insertion loss (0.3 decibels or lower) allows it to be permanently connected.
Specification:
- Frequency range: 1.6 - 60MHz
- Measurable power range: up to 2KW
- Minimum measuring power: 1W
- Impedance: 50ohm
- Product size: 140 x 84 x 122mm
- Product net weight: 780g
- Connector: M-J connector
Precision (5W Input):
- Average value: ±10%
- Peak value: ±15%
Precision (20-2000W Input):
- Average value: ±5%
- Peak value: ±10%
Package Included:
- 1 x Meter
- 1 x 13.8V DC Power Cable
- 1 x User Manual
