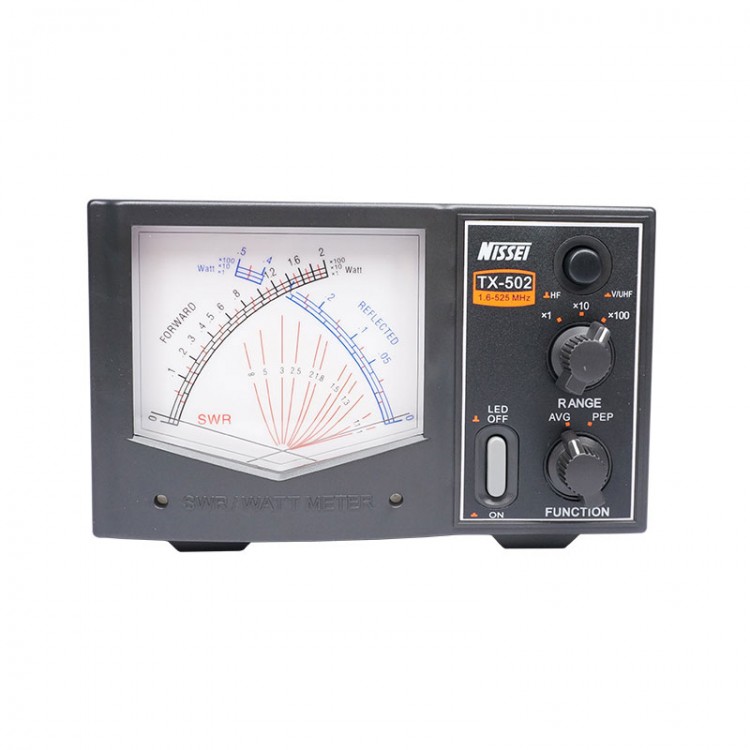

NISSEI Mini TX-502 SWR/Watt Meter 1.6-525MHz HF/V/U Band 200W High Quality Power Meter for Walkie Talkie
Description:
- The TX-502 SWR and power meter can be directly read without any calibration. Three color scale design to improve readability; LED backlight provides smooth and uniform lighting.
- A true directional coupler to improve accuracy beyond frequency. The personal instrument scale for each power range improves the accuracy of readings.
- The RS-103 has a measurable power range of up to 200W.
Specification:
- Frequency range: 1.6 - 525MHz
- Centre calibration: 28.5/145/435MHz
- Power range: 0 - 200W
- Power scale: 2/20/200W
- Maximum power: 200W
- Accuracy: ±10% of full scale or higher proportion (note: 20W/1260MHz)
- Insertion loss: < 1.2:1
- Testing function: electricity power, SSWR, PEP
- Impedance: 50ohms
- Connector: M-type
- Input power: 9 - 14VDC, 200mA
- Product size: 184 x 118 x 131mm
- Net weight: 1070g
Package Included:
- 1 x Meter
- 1 x 13.8V DC Power Cable
- 1 x User Manual
