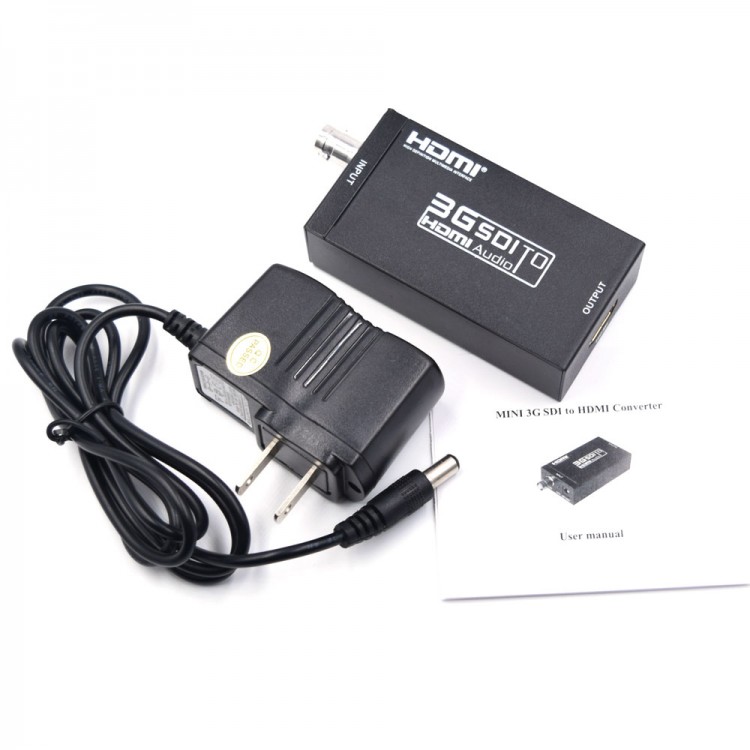

NK-S008 SDI To HDMI Converter Adapter Mini 3G SDI To HDMI Audio For SD-SDI HD-SDI 3G-SDI Signals
Description:
The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.
Features:
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Equalized and re-clocked loop output. Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
Specifications:
1. Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
2. Output Port: 1 x HDMI
3. SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-C
4. SDI Transmission Rates: 2.970Gbit/s and 2.970/1.001Gbit/s
5. In/Output Resolution: 720p at 25/30/50/59.94, 60, 1080i at 50/59.94/60. 1080p at 23.98/24/25/29.97/30/50/59.94/60. 1080PsF at 23.98/24/25/29.97/30
Package Included:
- 1 x Set of SDI To HDMI Converter
