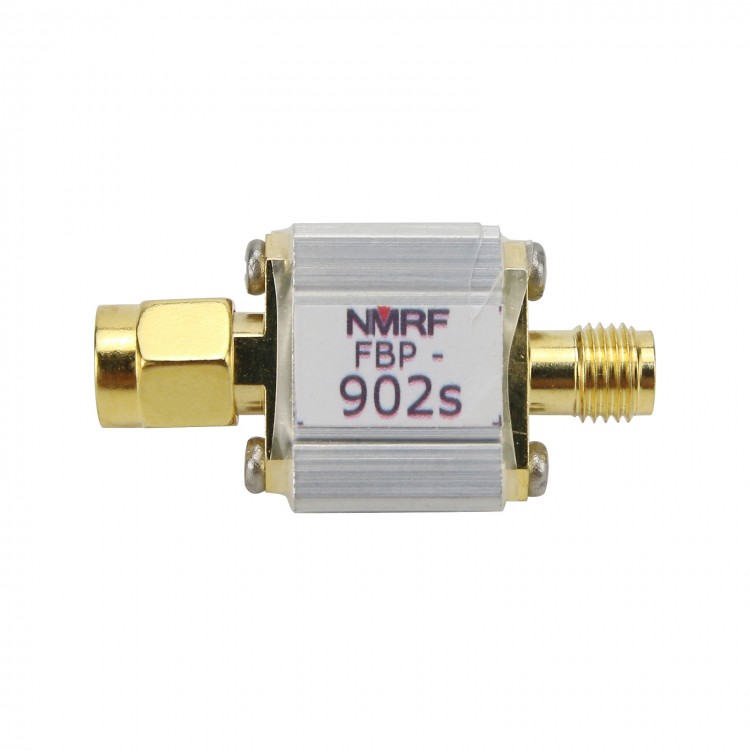

NMRF FBP-902s SAW Filter Band Pass Filter SMA Interface for Testing 902MHz (890-915MHz) GSM900
Description:
This filter has a 1dB bandwidth of 25MHz and a steep cut-off characteristic. It is used for GSM900 testing at 890-915MHz. In addition, it can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Specifications:
- Model: FBP-902s
- Impedance: 50 Ohms
- Center frequency: 902 MHz
- Passband (1dB bandwidth): 890 to 915 MHz
- In-band insertion loss: 2.0 to 2.5 dB (typical value: 2.2 dB)
- Maximum carrying power: 100 mW (20 dBm)

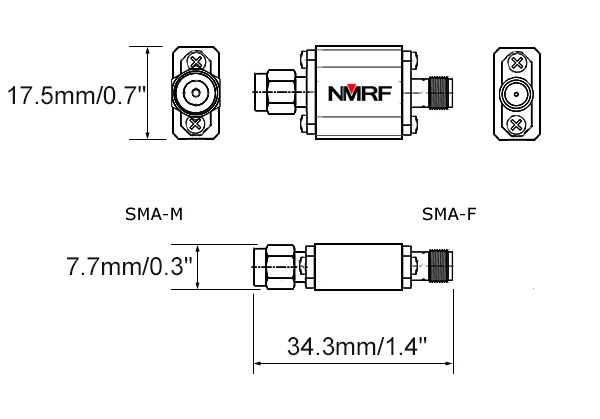

- Interface: SMA-M and SMA-F
Package Included:
- 1 x Filter

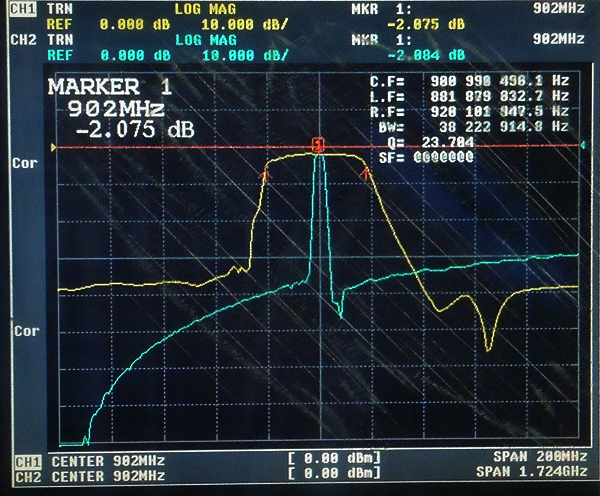

Frequency Response Diagram (labeled as 3dB bandwidth in the diagram):
