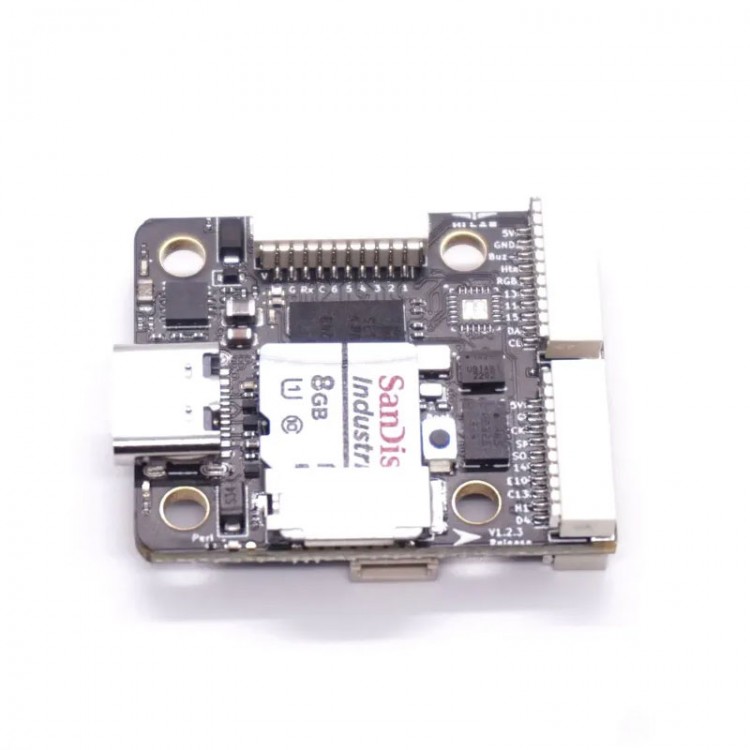

NxtPX4 V1.2.3 Opensource H7 High Performance UAV FPV Flight Control for PX4 (1056KB RAM + 2048KB Flash)
Specification:
Basic Parameter:
- Model: NxtPX4
- Version: V1.2.3
- Supported firmware: for PX4
- Size: 27 x 32 x 8mm
- Weight: 6.5g
Main Control Parameter:
- Processor: STM32H743VIH6 at 480MHz
- RAM: 1056KB
- Flash: 2048KB
Sensor:
- Gyroscope: BMI088/ICM-42688-P
- Accelerometer: BMI088/ICM-42688-P
- Electronic compass: None
- Barometer: BMP388
External Interface:
- UART: 6
- I2C: 1
- SPI: 1
- PWM output: 6
- Buzzer: 1
- Current sampling input: 1
- USB: 1 (Type-C)
- TF slot: 1
Power:
- Power input: 3-6S (10 - 25V)
- Power output:
DC 9V 2.5A (VTX power supply)
DC 5V 3A (external power supply)
Package Included:
- 1 x Flight Control
