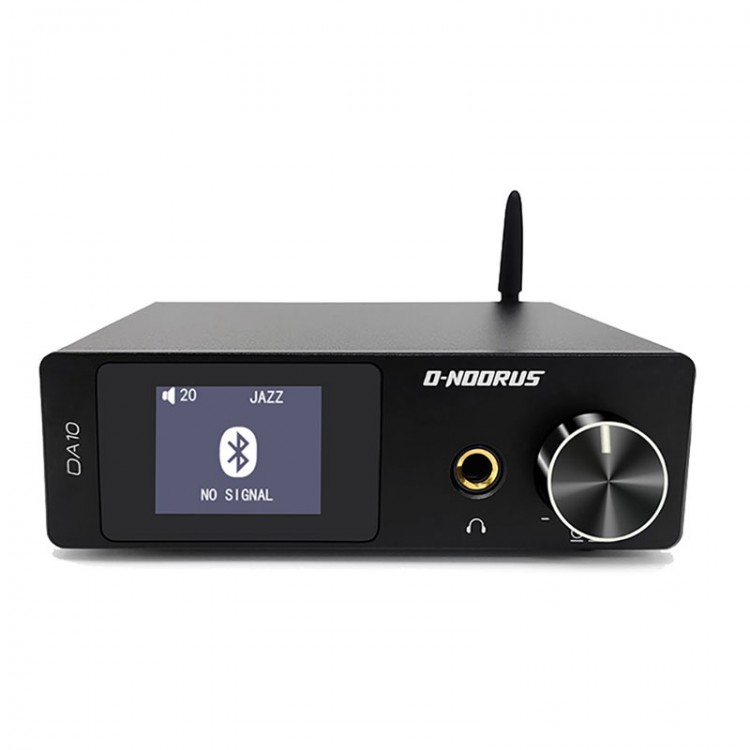

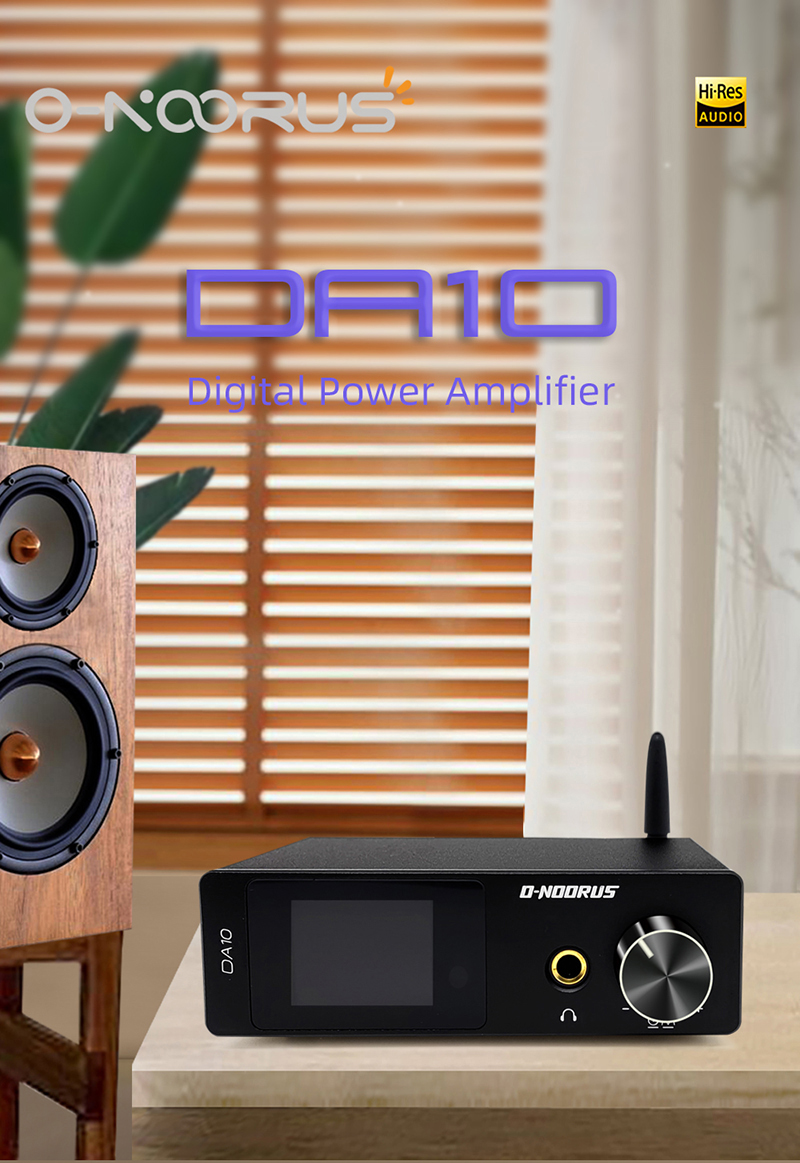

O-NOORUS DA10 80Wx2 Hifi Digital Power Amplifier Bluetooth USB DAC Audio Decoder for Home Theater
Specifications:
- Model: DA10

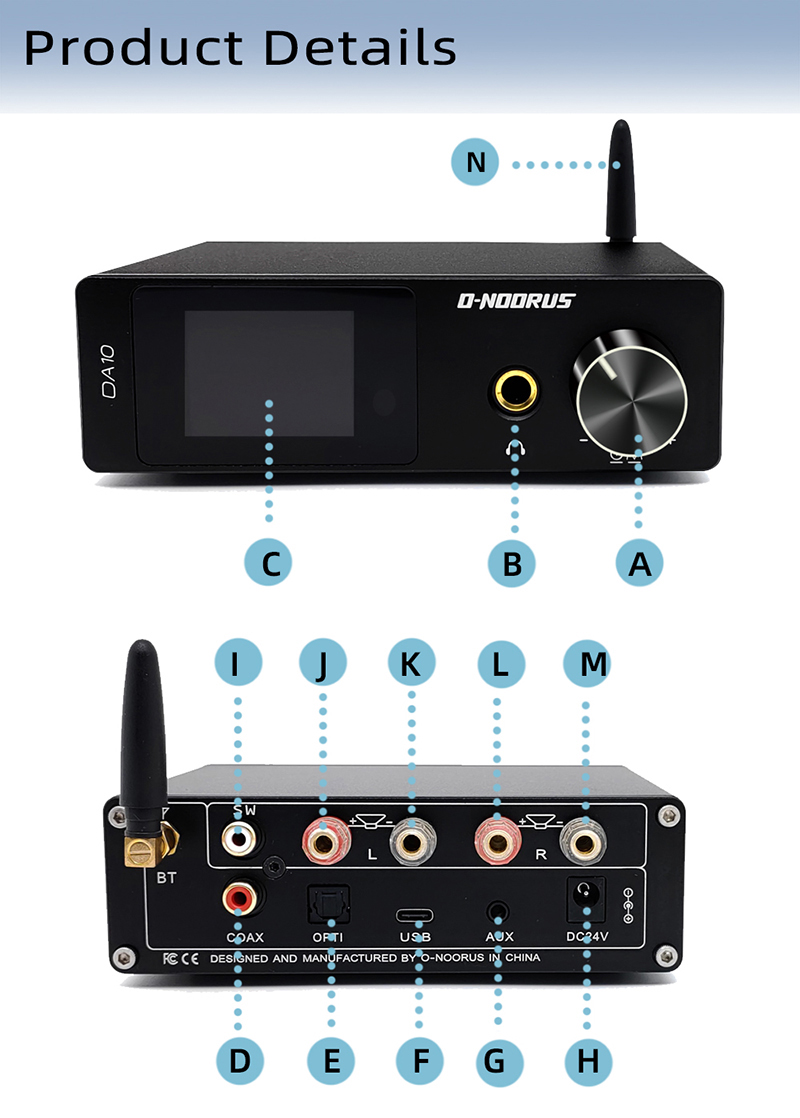

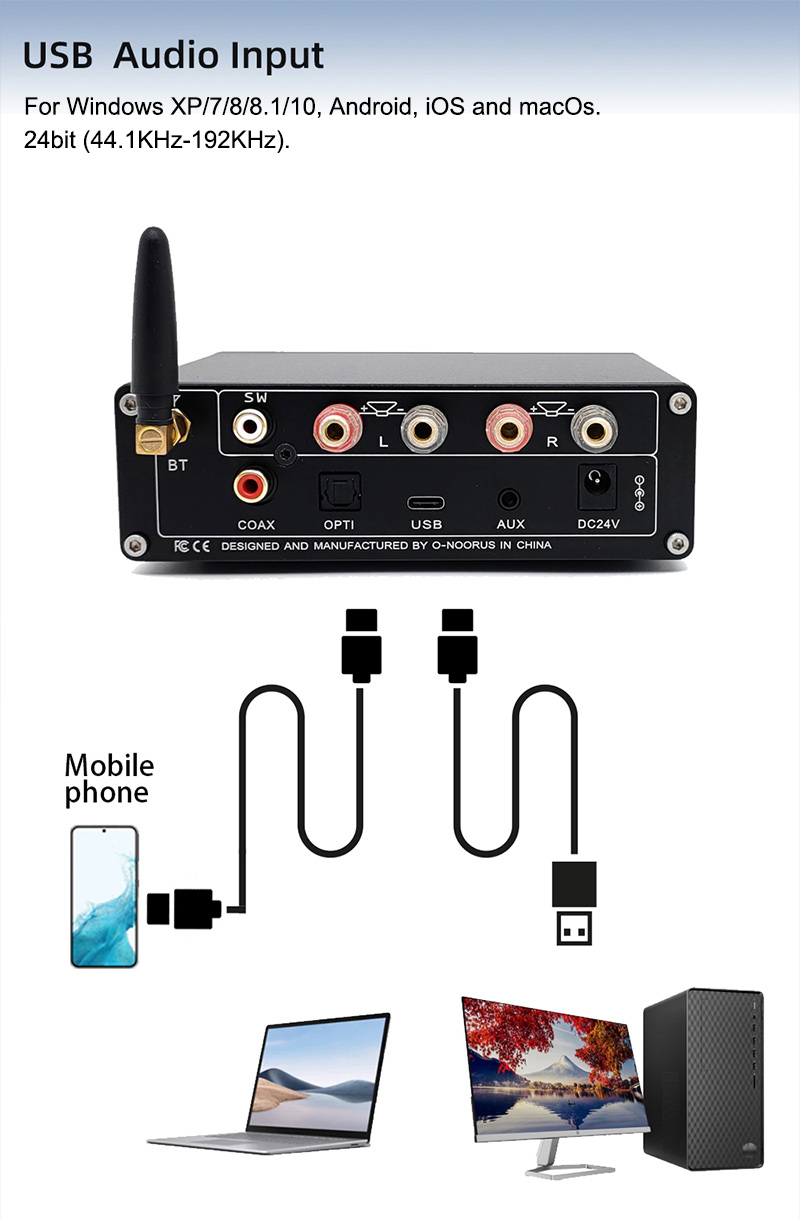

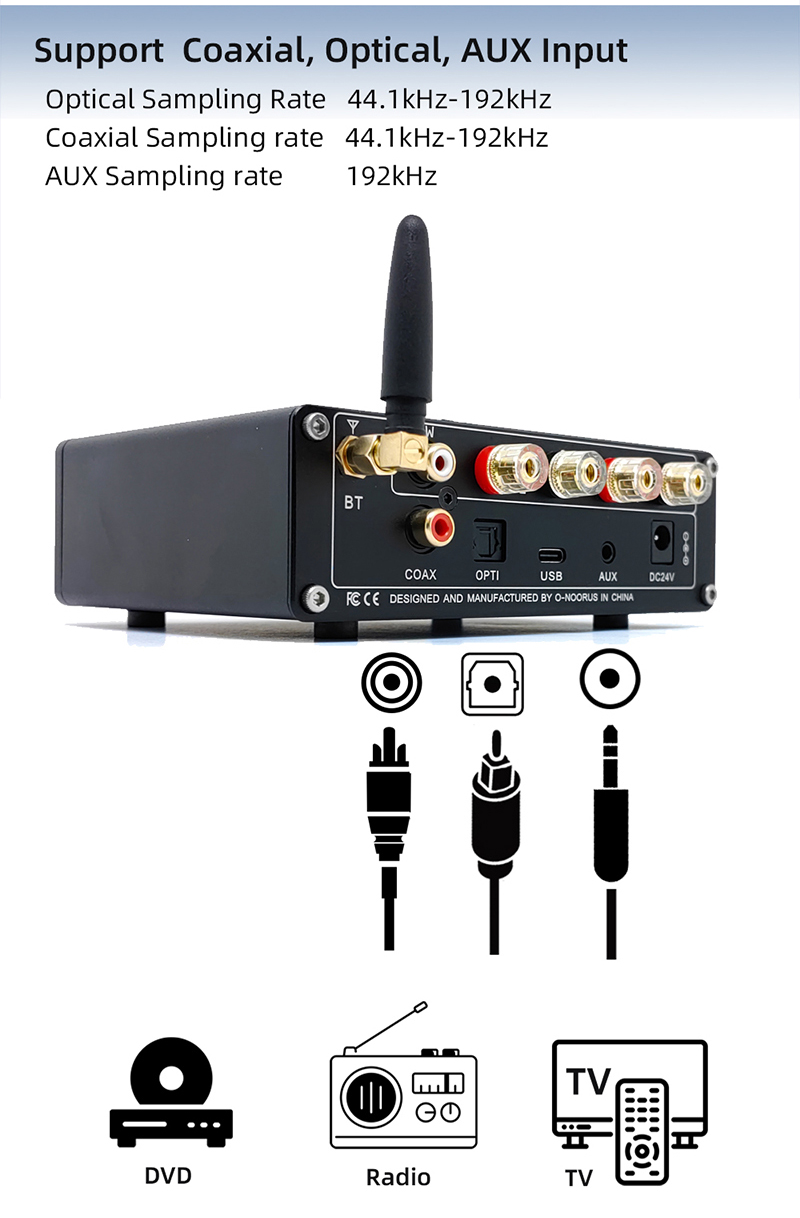

- Input: Bluetooth, USB, RCA, Optical, Coaxial and AUX

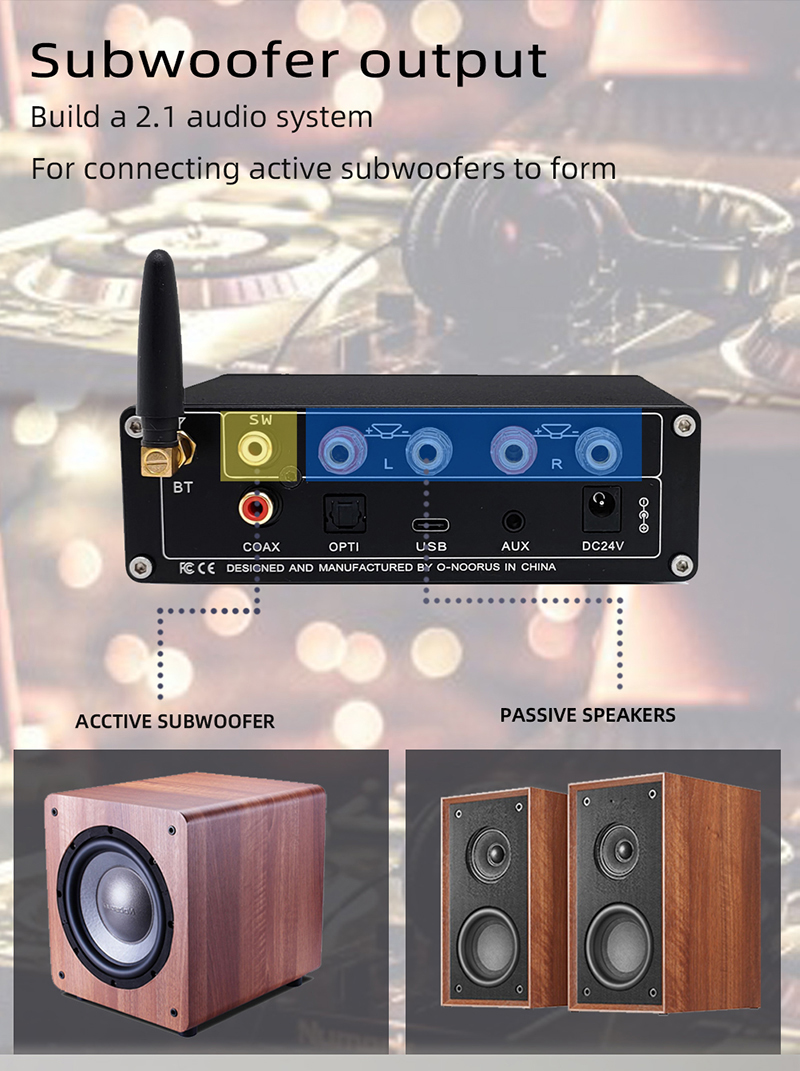

- Output: passive speaker, subwoofer and active speaker
- Amplifier IC chip: TAS5352
- DSP chip: TAS5508C
- AUX: CS5341
- Bluetooth chip: QCC3034
- For CIRRUS LOGIC: CS8422

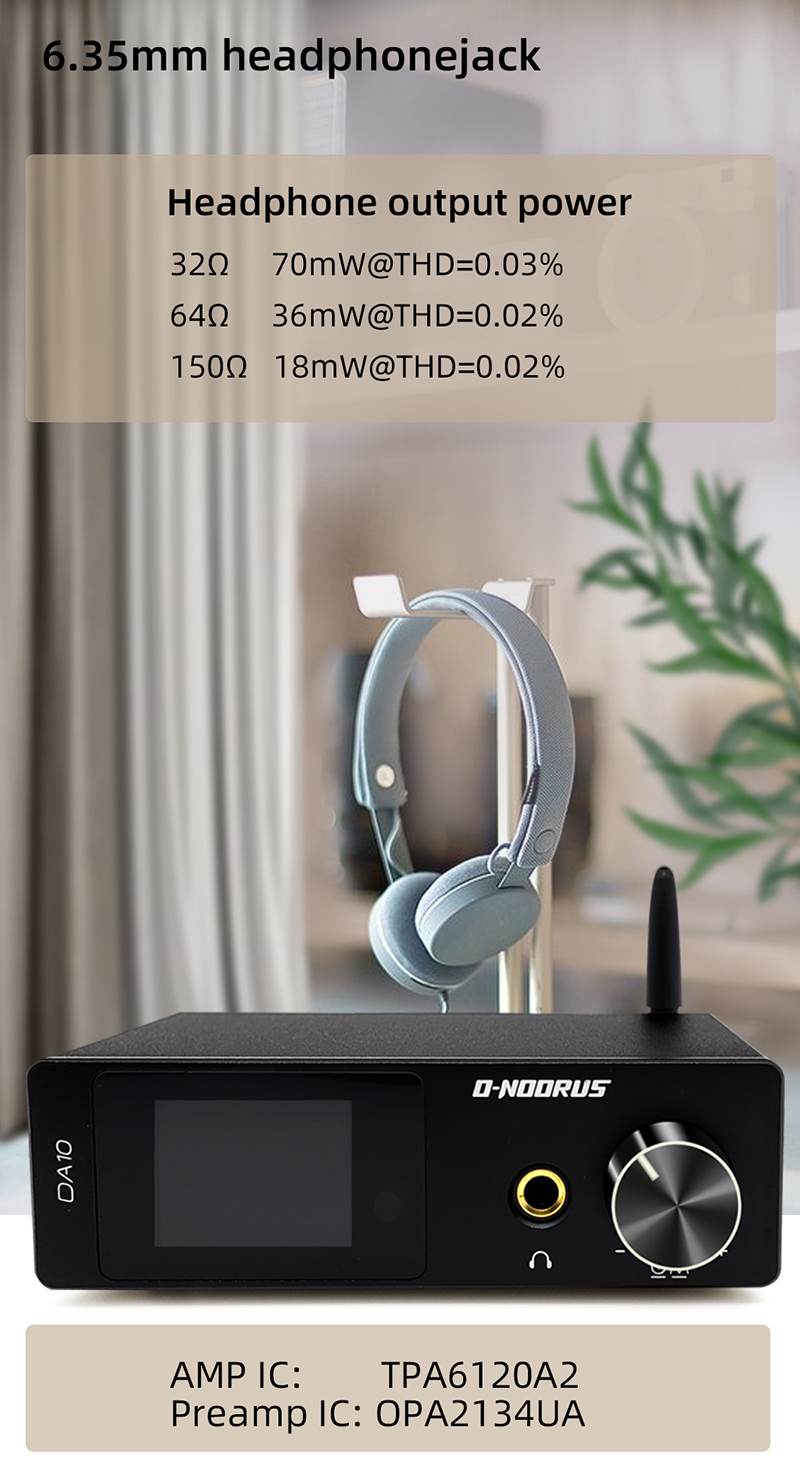

- Headphone Amplifier: TPA6120A2
- Power adapter: 24V/6.75A
- U disk support: WAV/APE/FLAC/MP3

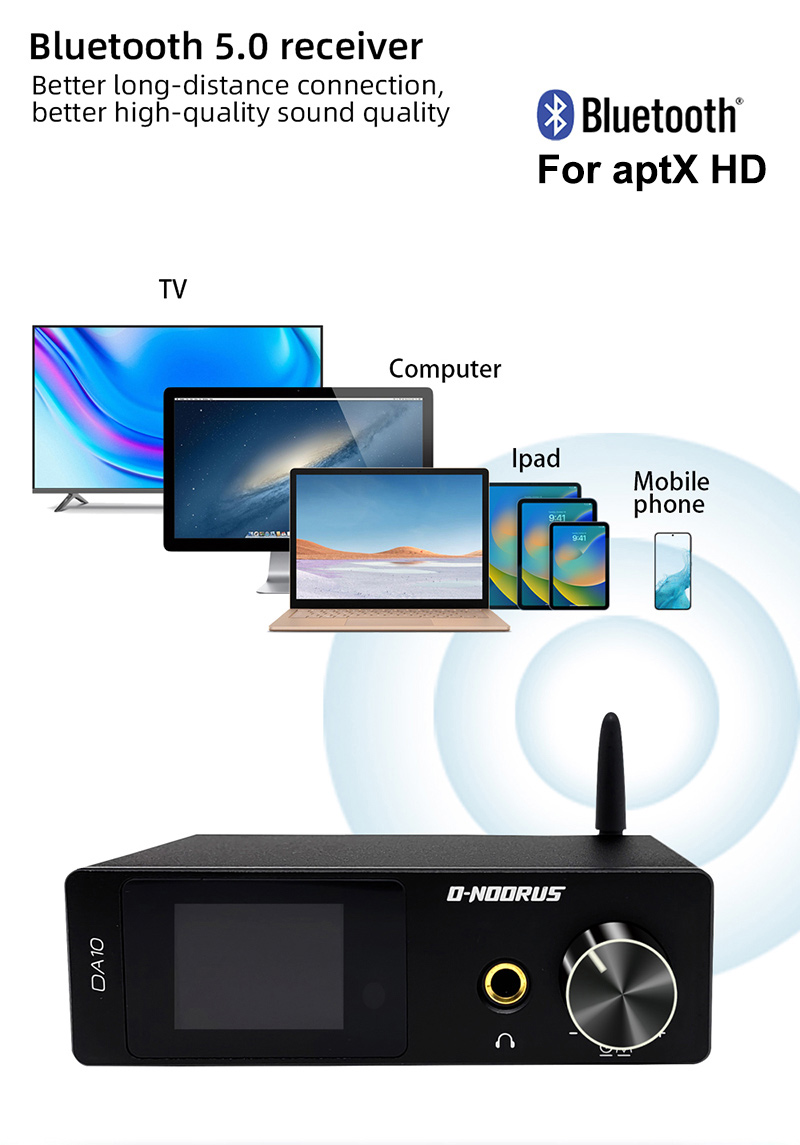

- Bluetooth version: 5.0; for SBC, AAC and APT-X
Performance:
- Frequency range: 10Hz-30kHz
- Input sensitivity: 100mv

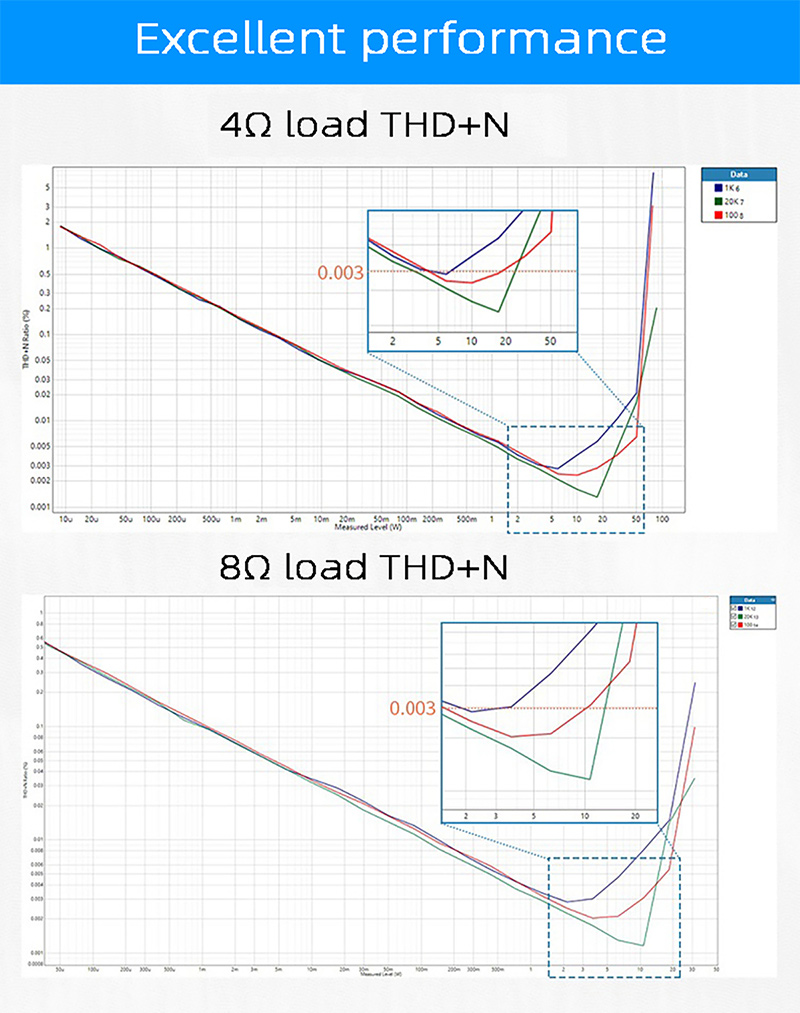

- THD+N Ratio: 0.025%
- THD+N Level: 1.626 mVrms
- THD Ratio: 0.021%
- THD Level: 1.788 mVrms
- Signal to Noise Ratio: 103.4 dB
- Noise Level: 65.1 uVrms
- Maximum power: 80W * 2 (4)
- Terminal impedance: 2 Ohms - 8 Ohms
Package Included:
- 1 x DA10 amplifier
- 1 x 24V 6.75A power supply
- 1 x USB data cable
- 1 x Bluetooth antenna
- 1 x Remote control
- 1 x Manual
