OBDII OBD2 ELM327 USB CAN-BUS Auto Car Diagnostic Scanner Interface V1.5a NEW

OBDII OBD2 ELM327 USB CAN-BUS Auto Car Diagnostic Scanner Interface V1.5a NEW

Product Description:
- OBD-II Software for ELM327 USB is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
- The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive,and you're ready to go.To uninstall the program, simply delete the entire contents of the folder where the program resides.
- The software supports two platforms - DOS and Windows.
Processor: ELM327 USB
OBD-II Protocols: ISO15765-4 (CAN)
ISO14230-4 (KWP2000)
ISO9141-2
J1850 VPW
J1850 PWM
Output protocol: RS232
Baud rate: 9600 or 38400

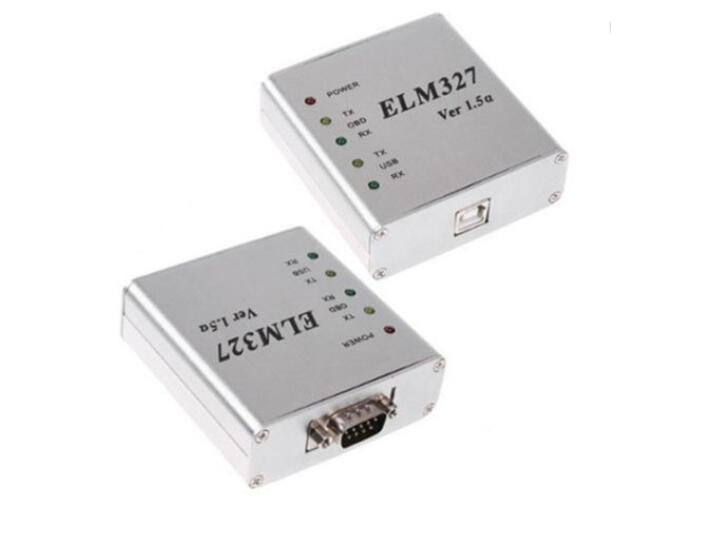

Indicator LEDs: OBD Tx/Rx,RS232 Tx/Rx,Power
Operating voltage: 12V,internal protection from short circuits/overvoltages
Nominal idle current: 45 mA

Features:
- The program lets you perform the following operations:
- Read diagnostic trouble codes,both generic and manufacturer-specific,and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data,including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
Many others...

Upcoming Features:
- Data graphing and logging
- Freeze Frame data
- Continuous and Non-Continuous Oxygen Sensor test results

Free software:
- Scantool.net
GM Mode 22 Scan Tool by Terry
OBD Gauge for PalmOS and Pocket PC by Dana Peters
OBD Logger by Jonathan Senkerik
OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
obd2crazy.com
OBD2 Scantool by Ivan Andrewjeski
OBDII for ELM322 by David Huffman

pyOBD by Donour Sizemore for MacOSX and Linux

RDDTC by Pete Calinski

Real Scan by Brent Harris

ScanTest for Pocket PC by Ivan Ganev aka a-ser
wOBD by WDT
Aavailable cars:
Benz PREFIX = ST1 2001/02/03 W203 C200K (ISO)

BMW X5 2002 (ISO) Chevrolet Aveo (ISO)

Citroen C3 2004 (ISO)?Daihatsu YRV 2005 (ISO)
Daihatsu YRV Turbo 2006 (ISO)
Fiat Tipo 2002 (ISO)
Ford New Focus 2006(CAN)

Honda Accord 2006 JDM (ISO)
Honda Accord Euro R 2004 JDM (ISO)
Honda City GD8 (ISO)
Honda Civic ES 1.6A (ISO)
Honda Integra Type R DC5 JDM (ISO)
Honda Jazz 1.4M (ISO)

Hyundai Accent 2004 (ISO)
Hyundai Getz 1.3A 2004 (ISO)
Hyundai Getz 1.6M 2004 (ISO)
Hyundai Matrix 2004 (ISO)
Hyundai Santa Fe 2.4A (ISO)
Hyundai Sonata GLS (ISO)
Hyundai Sonata 2005 (ISO)
Hyundai Tuscani FX (ISO)
Kia Carens 2005 (ISO)
Kia Magentis 2005 (ISO)
Kia Rio LS (ISO)
Kia Sorento SUV 2005 (ISO)
Lexus es300 Mazda 2 (CAN)
Mazda 5 (CAN)
Mazda 6 (CAN)
Mazda Premacy 2001 (ISO)
Mazda RX8 (CAN)
Mitsubishi Colt 2003 (ISO)
Mitsubishi Colt Plus 2005 (ISO)

Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000;RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)
Mitsubishi Lancer Evolution IX 2006 (ISO)
Mitsubishi Pajero 3.5 V6 2006 (ISO)
Nissan Sunny B14 (ISO)
Nissan Sunny VIP FB15 (ISO)
Nissan X-Trail 2.0L 2004 (ISO)
Nissan X-Trail 2.5L 2004 (ISO)
Peugeot 206 2001 –Only can show RPM
Peugeot 206 (ISO)
Peugeot 307 (ISO)
Peugeot 407 (ISO)
Renault Megane II 2005 (ISO)
Renault Kangoo 2006 (ISO)
Subaru Impreza 1.6TS 2002 (ISO)
Subaru Impreza WRX 2005 (ISO)
ToyotaCamry 2.0A 2004 (ISO)
ToyotaCamry 2.4A 2005 (ISO)
ToyotaCorolla Altis 1.6A 2005 (ISO)
ToyotaCorolla GLXi G8 1999 (ISO)
ToyotaCorolla G9 2002 (ISO)
ToyotaVios 2004 (ISO)

Not available veichles:
Mazda 323 Protege 2003 (OBD-I)
Mitsubishi Lancer 1.6M 2006
Nissan Sunny (N16)
Nissan Cefiro (Teana) 2005
Nissan sentra 1.8 2000/2005
Nissan Cefiro (Teana) 2005
Proton Perdana V6
Subaru Legacy GT 2005
Toyotacamry 2002
ToyotaWish JDM (Missing Pin 5 in DLC)
ToyotaIST JDM (Missing Pin 5 in DLC)
Toyotaaltis 1.8 2004
Peugeot 206 2000
Suzuki Jimny 1.3 2000
Diesel engine

FAQ: What is the difference for the v1.5 elm327,the plastic elm327 and the bluetooth elm327 ?
- There are the same functions for them,the only different is the interface:the v1.5elm327 has both usb com interface,the plastic elm327 just has usb interface,and the bluetooth elm327 just has no cable,it works by the bluetooth

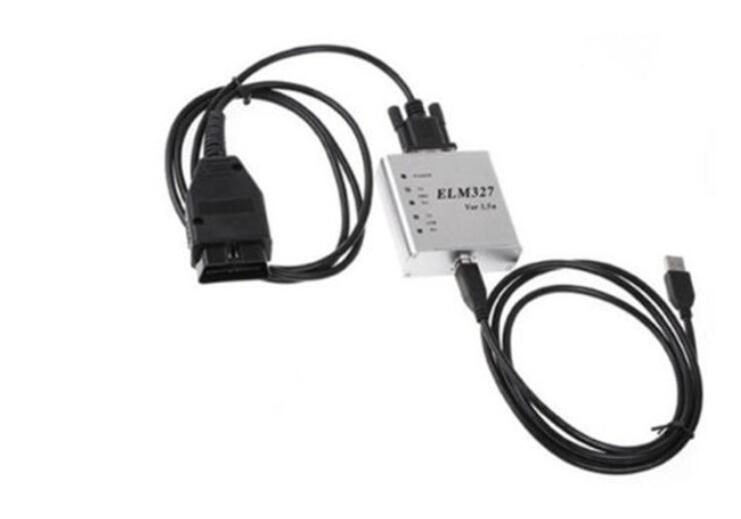

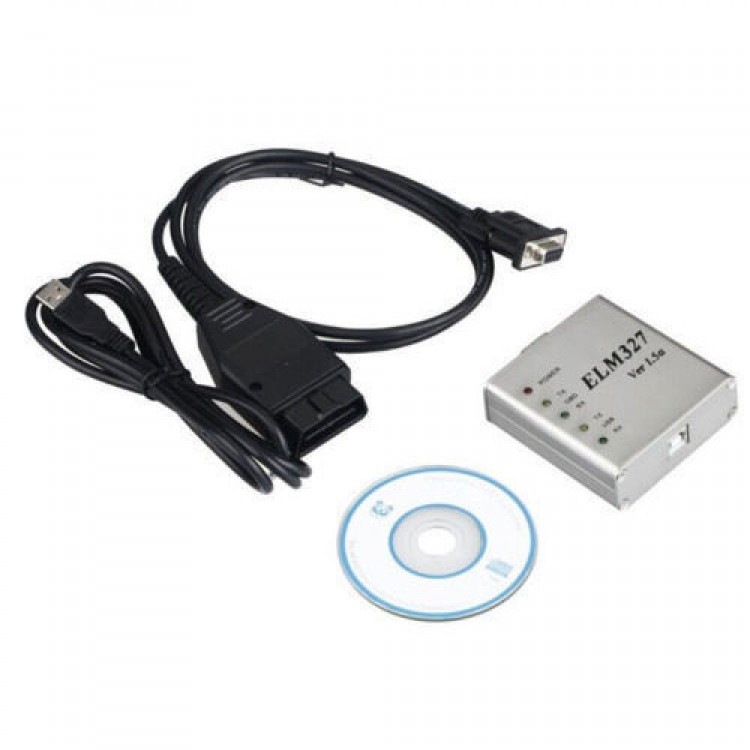

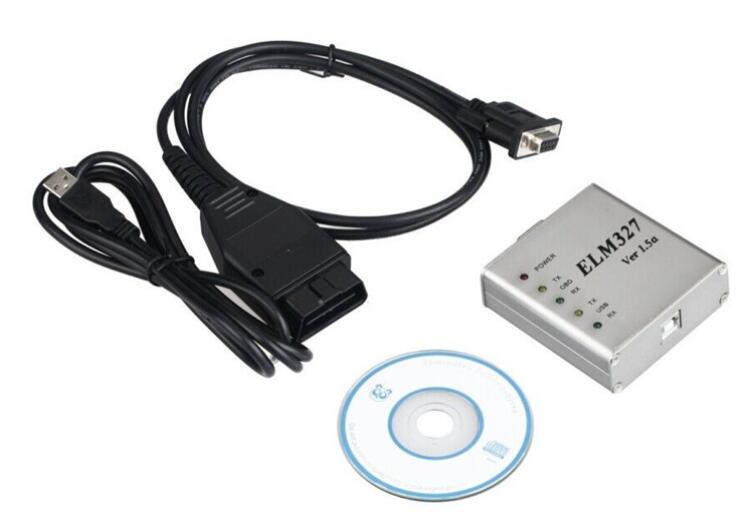

Package List:
- 1 x Elm327 main unit
- 1 x Com interface
- 1 x USB cables
- 1 x CD software
