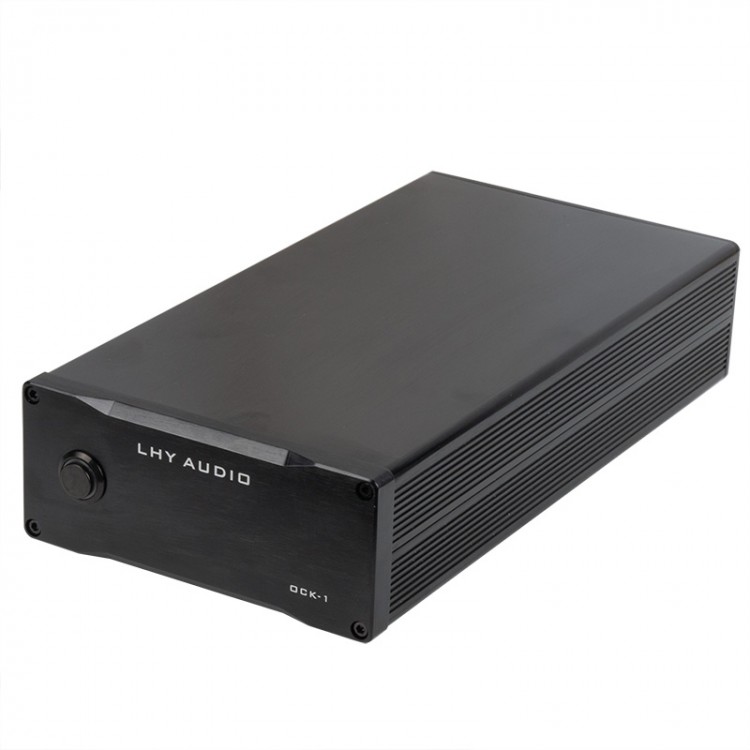

OCK-1 Fever Audio 10Mhz SC Cut OCXO Ultra Low Phase Noise Constant Temperature Clock Ultra Femtosecond Crystal Oscillator

OCK-1 Fever Audio 10Mhz SC Cut OCXO Ultra Low Phase Noise Constant Temperature Clock Ultra Femtosecond Crystal Oscillator

Description:
- This product is equipped with SPXO femtosecond crystal oscillator which with ultra-low noise oscillation core, advanced signal generation, transmission, distribution, drive.User can experience the huge sound quality improvement it brings when used with audio system. the Femtosecond Crystal Oscillator plays an important role in sound system for CD player, digital turntable, decoder and clock , realistic scene and more realistic instrument performance

- The back is equipped with three groups of clock signal interfaces, which can simultaneously provide up to three devices supporting 10MHz input, including USB DAC network player and sa-cd player, which can be connected in parallel. Each group of circuit of ock-1 is output from the power supply part to the buffer driver of the phase. The isolation design is adopted to prevent cross interference and flicker when multiple devices are connected to the BNC interface. By adding a buffer driver in each circuit, when all three groups of generated clock signals are shared, the signal waveform is not easy to decay. Therefore, each BNC interface output provides an ultra-high precision 10MHz clock signal

Specifications:
- Model:OCK-1
- Output frequency:10Mhz
- Output port:3
- Output accuracy:<+-300ppb
- Frequency stability:< +-50ppb
- Output range:>7dbm @50Rz
- Output wave: Sine Wave,square wave
- Output Impedance: 50ohm
- Noise:-110dBc
- Voltage: AC110-115 and AC220-230V optional
- Power comsulption: <15W
- Product size:130x270x65mm
- Weight:2.7kg
