Optical Power Meter + 15KM Red Light Optical Multimeter NK302

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.90
  • Price in reward points: 259 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.38 $24.86 $24.09 $23.05 Contact US
Quantity:

Optical Power Meter + 15KM Red Light Optical Multimeter NK302

Description:

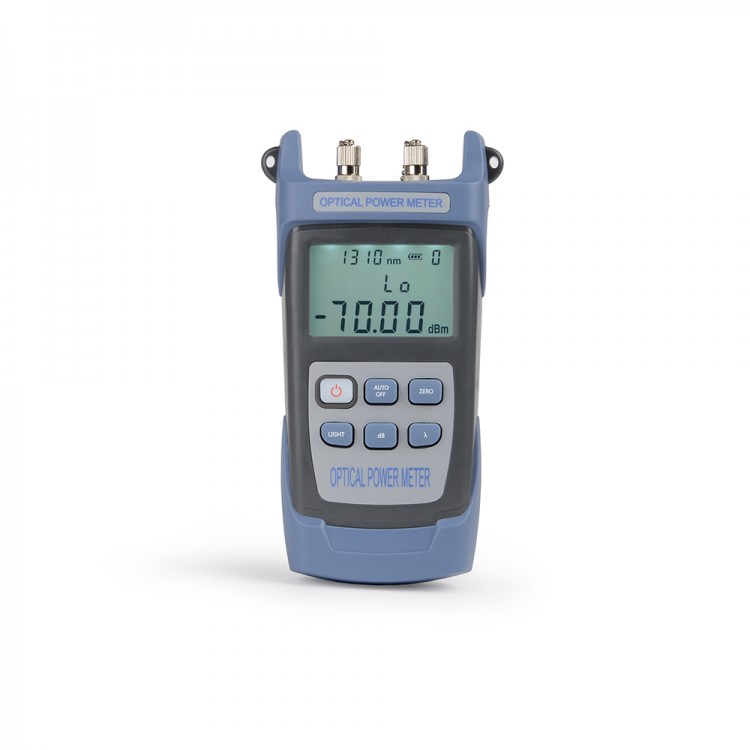

NK302 optical multimeter is a hand-held, intelligent and multi-functional test instrument that integrates the functions of light source and optical power meter. In addition to the absolute and relative power tests, it can also complete the tests of optical fiber, optical cable and optical passive components. It is suitable for the construction and maintenance of optical fiber communication and cable TV systems.

Features:
- Thanks to its compact size and light weight, it is convenient to carry and easy to use
- Can be powered by built-in rechargeable batteries or 3*AA Alkaline dry batteries (Batteries are not included)
- Universal Micro-USB Interface: Support multiple power supplies such as charger adapter, power bank, and PC tablet, featuring long working hours
- Smart Switchable Power Supplies: Priority to using power adapter, followed by built-in rechargeable batteries, and then dry batteries
- Designed with dustproof cover, the optical interface is well protected from pollution
- One-button zero calibration ensures accurate tests of weak signals
- Typical Application: It can be applied to construction and maintenance of fiber-optic communication and cable TV systems, as well as loss tests of optical passive components.

Optical Power Meter:
- Optional Module No.:
  P1: Power Range (-70dBm to 10dBm)
  P2: Power Range (-50dBm to 26dBm)

- Calibration Wavelengths: 850/980/1300/1310/1490/1550/1625/1650 nm
- Degree of Uncertainty: ±5%(-10dBm, 1310nm)
- Resolution: Linear Mode: 0.1%; Logarithmic Mode: 0.01dB/0.001dB

Red Light:
- Central Wavelength: 650±20nm
- Optional Output Power: 5mW/10mW/20mW/30mW/50mW

Optical Light Source:

- Central Wavelength: 1310±20nm, 1550±20nm
- Output Power: ≥-5dBm
- Stability: ±0.05dB/15min

Other Parameters:
- Optical Interface: FC/UPC
- Electrical Interface: USB
- Optional Power Supply: AC/DC Power Adapter (220V AC± 10%, 50-60Hz, Output 5V)
- Power Consumption: ≤0.5W
- Operating Temperature: 0℃ to 50℃
- Storage Temperature: -40℃ to 70℃
- Relative Humidity: 5% to 95%, no condensation
- Size: 110 x 186 x 50mm
- N.W.: 240g

Package Included:
- 1 x Optical Power Meter + 15KM Red Light Optical Multimeter

Note: Please tell us your desired Module NO. and Output Power. If power adapter is needed, please leave a message. Thank you!
