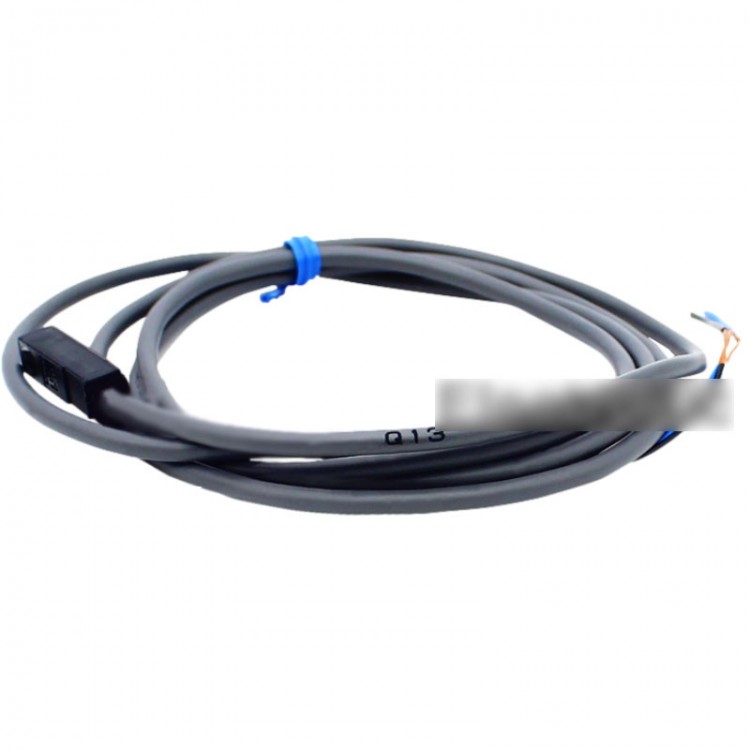

Original New E2S-Q13 Mini Proximity Sensor Switch with NPN Output for Ferromagnetic Metal Detection
Specification:
- Model: E2S-Q13
- Detection surface: front
- Detection distance: 1.6mm±15%
- Setting distance: 0 ~ 1.2mm
- Difference: less than 10% of the detection distance
- Detectable objects: ferromagnetic metal (the detection distance of non-magnetic metals is relatively short)
- Standard detection object: iron 12 x 12 x 1mm
- Frequency response: > 1kHz
- Power supply voltage: DC12 ~ 24V ripple (p-p) 10% below (DC10 ~ 30V)
- Current consumption: < 13mA (DC24V, no load)
- Controlling output:
Switch capacity: NPN open collector output 50mA below (DC30V below)
Residual voltage: < 1V (load current: 50mA, wire length: 1m)
- Indicator: action display (orange)
- Operating mode: 3-type: NO; 4-type: NC
Package Included:
- 1 x Proximity Sensor
