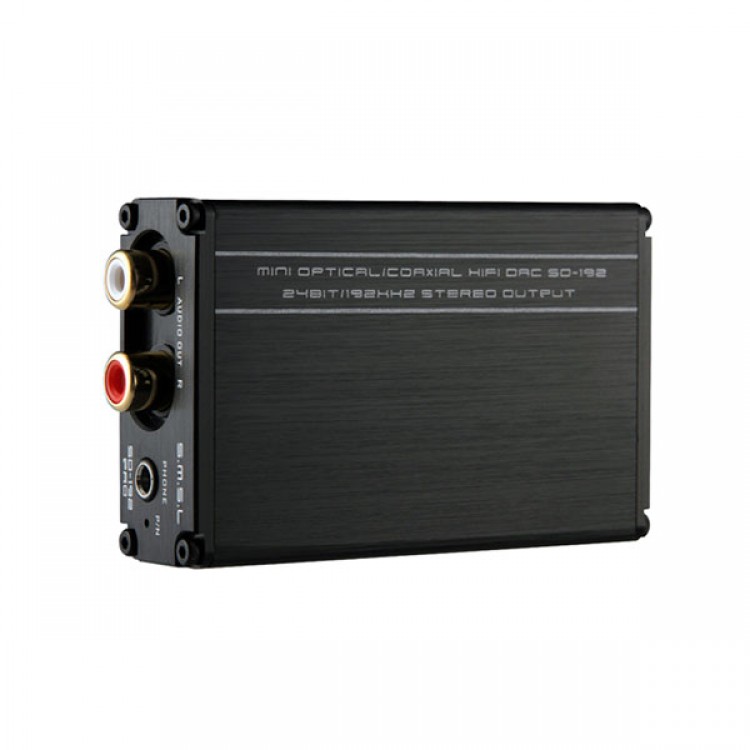

Original SMSL SD-192 pro 24BIT/192Khz Upgrade Version Fiber / Coaxial Decoder MINI DAC /3.5mm/RCA input decoder Digital DAC

Original SMSL SD-192 pro 24BIT/192Khz Upgrade Version Fiber / Coaxial Decoder MINI DAC /3.5mm/RCA input decoder Digital DAC

Description:
- SD-192 PRO is an upgraded version of SD-192. The receiver circuit  of SD-192 PRO uses WM8805 as a digital receives the demodulation,decoding section using ES9023, reach 192Khz/24Bit. Chipset with very sound, stable and superior performance.
- SD-192 PRO can be connected to a computer with an optical or coaxial output • LCD TV set-top boxes • • • Hard disk player game console • CD • DVD • MD and other audio equipment. Now a large number of high-end LCD TV • STB with no analog audio output with optical fiber or coaxial output, SD-192 PRO will decode. Sound quality is very good.
- SD-192 PRO provides RCA lotus seat and 3.5 headphone port two kinds of output, allowing you to wire match. Although there is no added 3.5headphone port zoom function, but 2V ES9023 output enough to drive most of the headphones
- SD-192 PRO is compatible with DC9-15V wide voltage power supply. Inside the machine to receive and decode the independent regulator powerto the machine provides the basis for superior performance. Similar components of the machine are the same brand of choice in order to avoidunnecessary coloration. Whether with optional components or PCB traces are reflected double wooden Salim engineers responsible for product quality attitude and pursuit.

Technical Parameters:
1: optical fiber interface
2: RCA coaxial interface
Output interface: 3.5 MM headphone jack/RCA analog interface
Power: AC100-240V
External dimensions: 90 deep x 50 wide x 21 H mm
Color: Black
Weight: 350G
Case Material: Aluminum
