• OSC201 OCXO Frequency Reference Thermostatic Crystal Oscillator 10MHz Sine Wave Frequency Standard Radio Network Analyzers Electrical Instrument

OSC201 OCXO Frequency Reference Thermostatic Crystal Oscillator 10MHz Sine Wave Frequency Standard Radio Network Analyzers Electrical Instrument

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.66
  • Price in reward points: 267 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.13 $25.59 $24.79 $23.73 Contact US
Quantity:

OSC201 OCXO Frequency Reference Thermostatic Crystal Oscillator 10MHz Sine Wave Frequency Standard Radio Network Analyzers Electrical Instrument

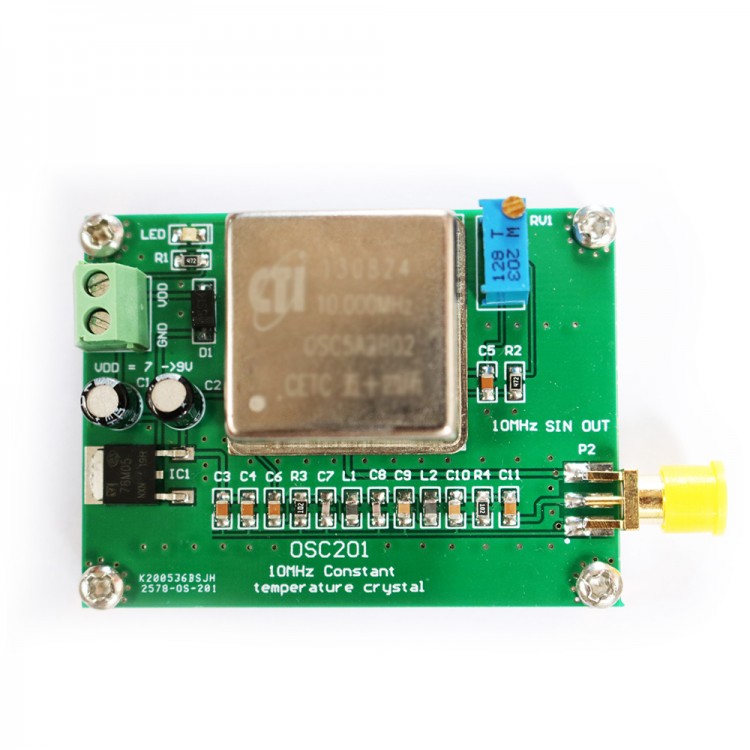

Description:

The frequency accuracy of this module output 10MHz signal (+/-200ppb), there is a standard 10MHz sinusoidal signal output,

1. P1: Power input interface; (7~9V 500MA).
2. P2: 10MHz sine signal output interface; (10Mhz amplitude: 2.5Vpp) SMA interface
3. RV1: Correct the deviation of 10Mhz output frequency (+/-2.0ppm)

Length X width X height:56mm*45mm*25mm
