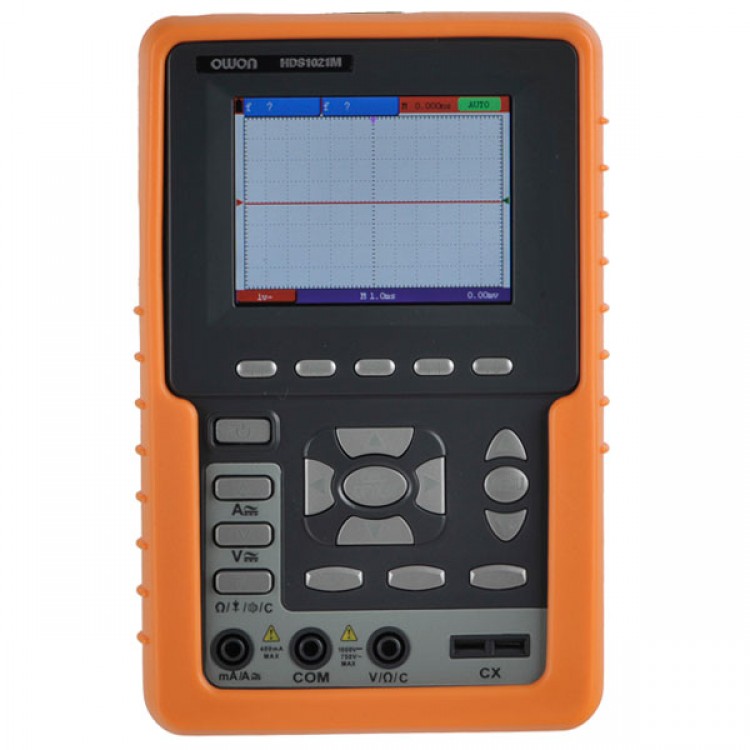

OWON HDS1021M 1 Channel 20 MHz Scopemeter Oscilloscope & Multimeter
The HDS2102M can be attached to your PC via USB with the included software. It also comes with a carrying case, the two types of probes, the AC power adapter, USB cable, Manual, and the software CD.
Features:
- 20MHz bandwidth
- 100MSa/S real time sampling rate
- 4000 count DMM resolution with AC/DC at 400V/1000V, 20A
- 3.8 inch TFT color LCD display
- USB connectivity
- 7.4 V, 6 hour Li-ion battery
- AC Power 100V-240V, 50/60 Hz
| Oscilloscope Specification | ||||
| Model Name | HDS1021M | HDS1022M | HDS2062M | |
| Bandwidth | 20MHz | 20MHz | 60MHz | |
| Sample Rate ( Real time ) | 100MS/s | 100MS/s | 250MS/s | |
| Horizontal Scale(S/div) | 5ns/div~100s/div,step by 1~2.5~5 | 5ns/div~100s/div,step by 1~2~5 | ||
| Rise time(at input, typical) | ≤17.5ns | ≤5.8ns | ||
| Display |
3.5'' color TFT display (320×240 pixels) |
3.8'' color TFT display (320×240 pixels) |
||
| Channels | Single | Dual | ||
| Input impedance |
1MΩ±2% in parallel with 20pF±3pF |
1MΩ±2% in parallel with 20pF±5pF |
||
| Record length | Max. 6000 points on each channel | |||
| Interpolation | (sin x)/x | |||
| Probe attenuation factor | 1X,10X,100X,1000X | |||
| Input coupling |
DC, AC, GND |
DC, AC | ||
| DC accuracy(Average) |
Average>16:±(3% reading +0.05div) for ?V |
Average>16:±(5% reading+0.05div) for ?V | ||
| Vertical Sensitivity | 5mV/div~5V/div (at input) | |||
| Vertical resolution (A/D) | 8 bit | |||
| Max. Input Voltage | 400V (PK-PK) (DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1) | |||
| Trigger Type | Edge, Video | |||
| Trigger Mode | Auto, Normal, Single | |||
| Trigger level | ±6 divisions from screen center | |||
| Acquisition modes | Sample, Peak Detect and Average | |||
| DC gain accuracy | ±3% | ±5% | ||
| Automatic Measurement |
Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot, Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B Delay A→B |
|||
| Waveform math | Unavailable | +, -, ×, ÷ | ||
| Waveform storage | 4 waveforms | |||
|
Lissajou’s figure |
Bandwidth | Unavailable | 20MHz | 60MHz |
| Phase difference | Unavailable | ±3 degrees | ||
| Communication interface | USB | |||
| Power supply | 100V-240V AC, 50/60Hz | |||
| Li-ion battery | 7.4V, 6 hours operation | |||
| Multimeter specifications | |||
| Full scale reading | 3 3/4 digits (Max.4000-count) | Diode | 0V-1.5V |
| Input Impedance | 10 MΩ | On/Off measurement | <50(±30) beeping |
| Capacitance | 51.2nF-100uF:±(3%±3 digit) | ||
| Voltage |
VDC:400mV,4V, 400V: ±(1±1digit) Max.input:DC 1000V, VAC:4V,40V, 400V:±(1±3digit) Frequency:40Hz-400Hz, Max:input:AC 750V(virtual value) |
||
| Current |
DCA:40mA, 400mA:±(1.5%±1 digit) 20A:±(3%±3digit) DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 20A:±(3%±3digit) |
||
| Impedance | 400Ω:±(1%±3digit), 40Ω | ||
| General specifications | ||
| Interface | USB Data Cable (Transfer waveform data to a PC) | |
| Power | Supply:100V~240V AC,50/60Hz DC input: 8.5VDC, 1500mA. Battery: 6 hours | |
| Dimension | 180mm x 115mm x 40mm | |
| Weight | 455g | 645g |
