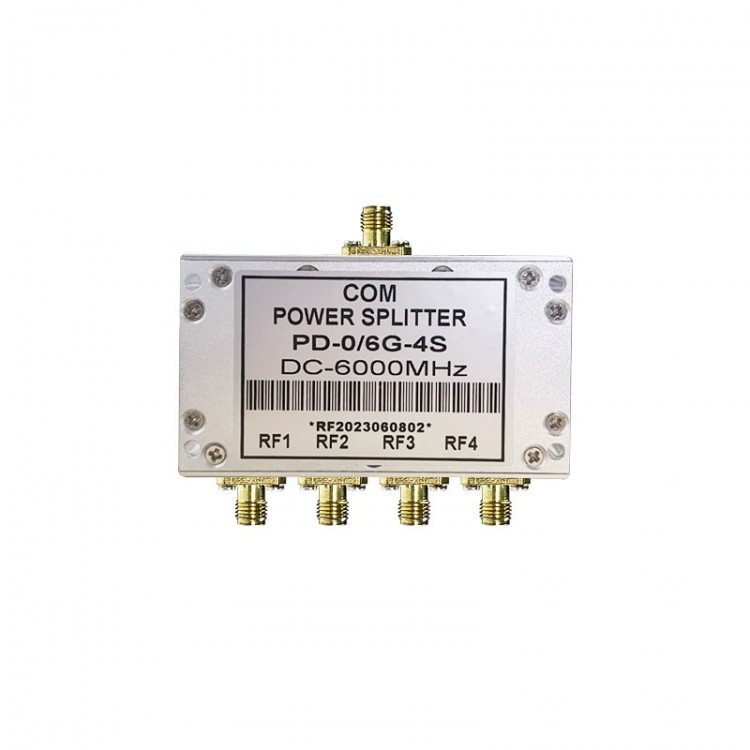

PD-0/6G-4S DC-6000MHz 4-Way Power Splitter RF Power Divider with SMA Female to Female Connector
Features:
* 4-way power divider with SMA connectors
* Low insertion loss, low VSWR, and high isolation
* The product undergoes rigorous testing before shipment
* High stability
* Frequency: Wideband starting from DC
* Connector: Thickened plating, wear-resistant and durable
* Comes with mounting holes for easy installation
Specifications:
* Product Model: PD-0/6G-4S
* Product Name: 4-Way Power Divider
* Frequency Range: DC-6000MHz
* Insertion Loss (Including Power Split Ratio): Typical 13.5dB and Maximum 14.0dB
* Isolation: Typical 5.9dB and Minimum 5.6dB
* Input VSWR: Typical 1.25 and Maximum 1.35
* Output VSWR: Typical 1.25 and Maximum 1.35
* Amplitude Balance: Typical 0.3dB and Maximum 0.5dB
* Phase Balance: ±6°
* Impedance: 50Ω
* Connector Type: SMA-K
* Power Capacity: Forward: 2W (average)
* Operating Temperature: -20°C to 80°C

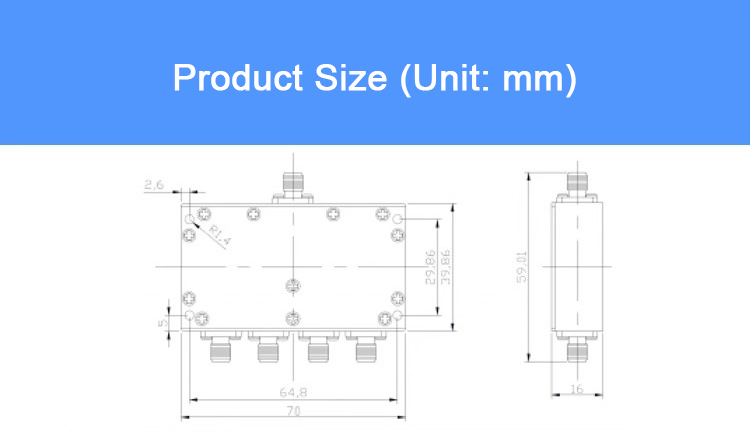

* Dimensions: 70 × 40 × 16mm
Packing List:
* 1 x RF Power Divider
Packaging Details:
* Weight: 0.3kg
