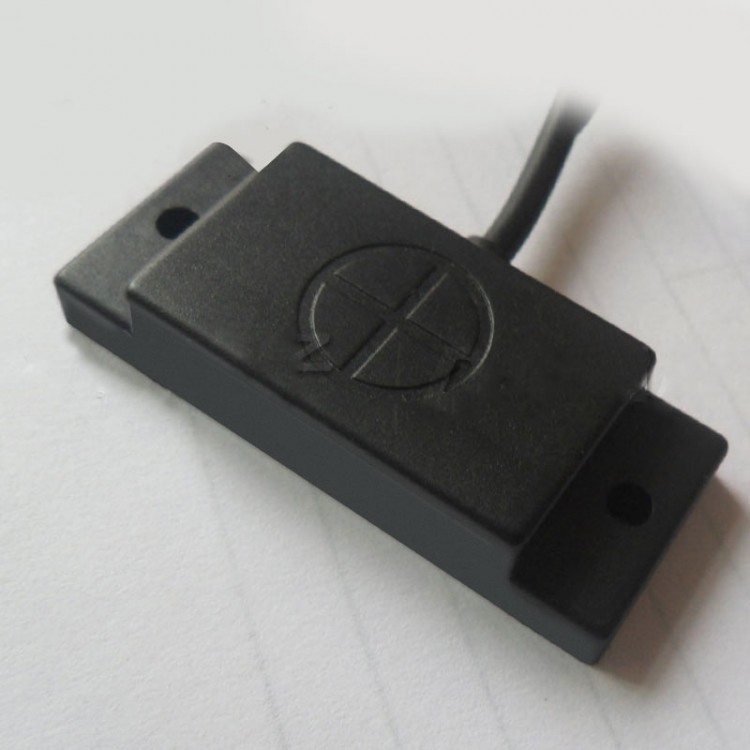

• PF-R20PA-A1 Original Capacitive Square Proximity Switch for the Induction Detection of Non-metallic Objects

PF-R20PA-A1 Original Capacitive Square Proximity Switch for the Induction Detection of Non-metallic Objects

Availability: In stock, usually dispatched in 1 business day

  • Price:$35.38
  • Price in reward points: 354 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $34.67 $33.96 $32.90 $31.49 Contact US
Quantity:

PF-R20PA-A1 Original Capacitive Square Proximity Switch for the Induction Detection of Non-metallic Objects

Parameter:

- Model: PF-R20PA-A1
- Detection distance: 4-20mm (metal grounding)
- Installation mode: Non buried
- Connection mode: 3-core cable (diameter: 3mm)
- Power voltage: 12-24VDC
- Controlled output: NPN.NO/PNP.NO
- Flexibility adjustment: Yes
- Maximum output current: 100mA
- Power consumption: <8mA
- Power polarity reverse connection protection: Built-in
- Leakage current: <0.1mA
- Residual voltage: <1.5VDC
- Switch response: 50Hz
- Short circuit protection: Built-in
- Hysteresis loop: 10%
- Environment temperature and humidity: -10℃~55℃/35%~85% relative humidity
- IP protection grade: IP67
- Dimension: 50 x 20 x 10mm

Package Included:

- 1 x PF-R20PA-A1 Proximity Switch
