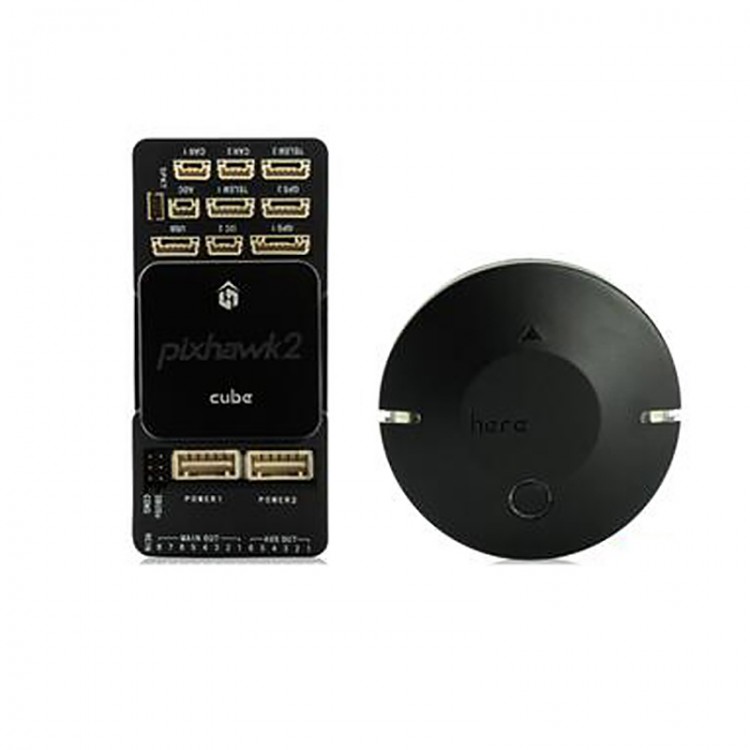

PixHawk 2.1 Flight Controller + Here 2 GNSS GPS Module for Drone UAV Package 3

PixHawk 2.1 Flight Controller + Here 2 GNSS GPS Module for Drone UAV Package 3

PixHawk 2.1 Flight Controller:
Main Features:
- Modular design for flexibility
- Ready for RTK GPS & multiple GPS
- Triple redundancy IMU system
- Isolated, dampened and temperature controlled IMU

Key Design Points:
- Built-in IMU heating system, allowing flights at extreme temperature (below ice point)
- Robust DF17 interface connectors, enhance drop and shock resistance
- Airframes: VTOL, Plane, Multicopter, Traditional Helicopter, Rover, Boat, Sub, General Robotics

Specifications:
Isolated and Dampened IMU
- Separated IMU and FMU system, effectively reducing interference to sensors.
- Foam effectively filter high frequency vibration, reducing noise to IMU measurements.
Temperature-controller IMU
- Built-in generating resistor for temperature-controlled IMU system, applicable for operations below ice point
Triple Redundant IMU system
- 3x Accelerometer
- 3x Gyroscope
- 3x Magnetometer
- 3x Barometer
Modular Flight Controller
- Modular cube design for simplicity. All inputs/outputs in one single DF17 connector so user may use different carrier board for specific application or design and make their own carrier board with ease.

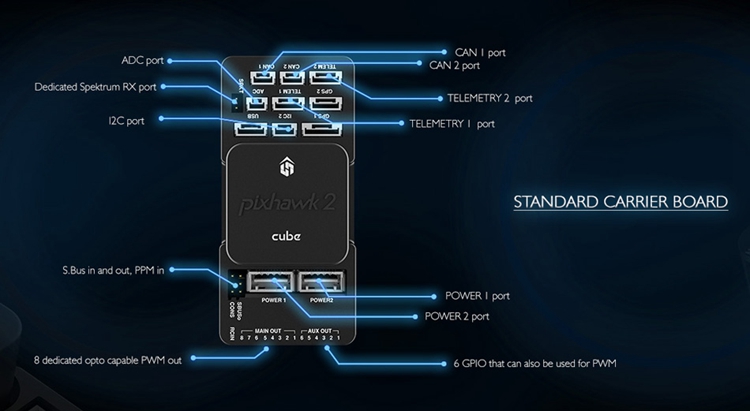

Standard Carrier Board:
- ADC port
- Dedicated Spektrum RX port
- I2C port
- S.Bus in and out, PPM in
- 8 dedicated opto capable PWM out
- 2 CAN ports
- 2 Telemetry ports
- 2 power ports
- 6 GPIO that can also be used for PWM

Package 1:
- 1 x Pixhawk 2.1 Cube
- 1 x Carrier Board
- 1 x Buzzer Cable
- 1 x GPS2 Cable
- 1 x GPS1 Cable
- 1 x Power2 Cable
- 1 x Power Cable
- 2 x Telem Cables
- 1 x I2C Cable
- 1 x Micro USB Cable
- 9 x 3M Stickers
- 4 x Screws
- 1 x I2C Board
- 1 x Power Brick Mini
- 1 x Pixhawk 2.1 User Manual
- 1 x Tips Card

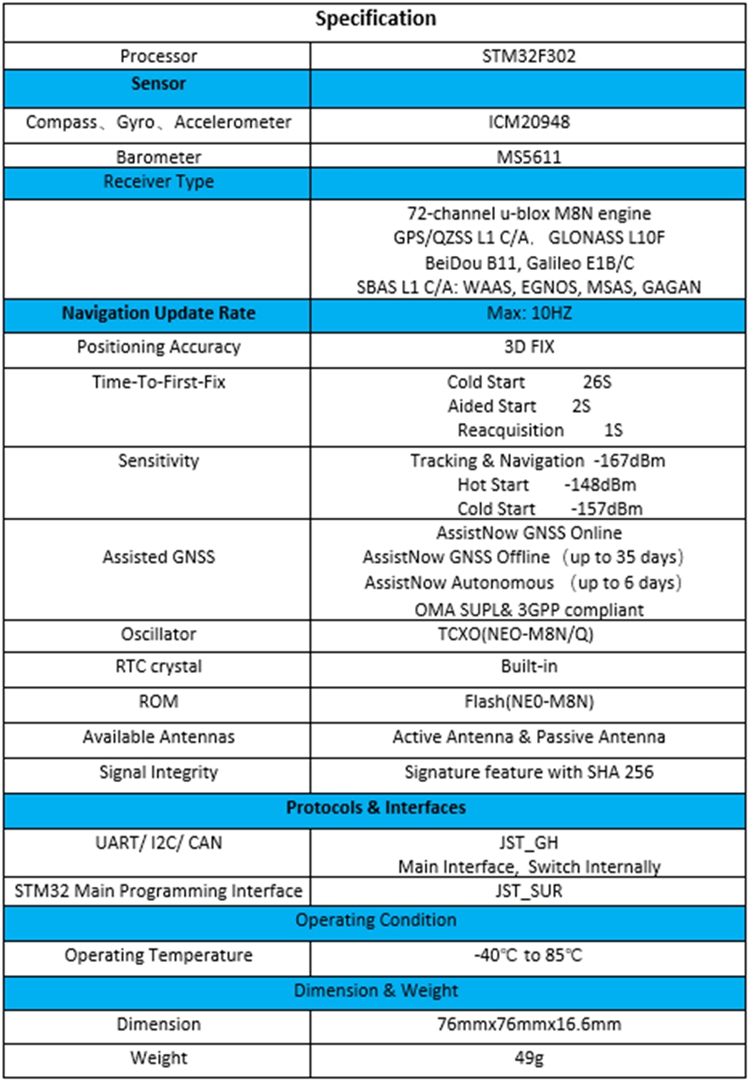

Here 2 GNSS GPS Module:
Description:

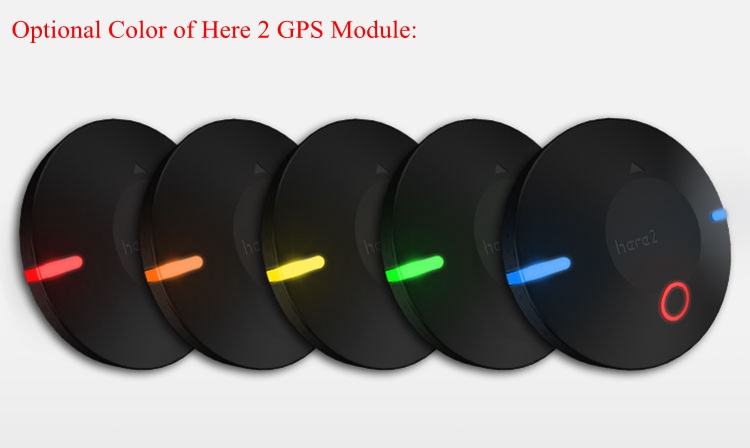

The Here 2 GPS module is a new version based on Here GNSS GPS unit. Compared with Here GNSS GPS unit, Here 2 GPS mudule features more accurate positioning, faster response, and colorful LED lights for visible indications of UAV status. Here 2 GPS Unit is compatible with Pixhawk2.1 and most of the other open source flight controllers.

Package 2:
- 1x Here 2 GNSS (M8N) GPS Unit
- 1 x GPS Cable for Pixhawk
- 1 x GPS CAN Cable
- 1 x Wrench
- 1 x User Manual
- 1 x 3M Sticker




PixHawk 2.1 Flight Controller + Here 2 GNSS GPS Module:
Package 3:
- 1 x Pixhawk 2.1 Cube
- 1 x Carrier Board
- 1 x Buzzer Cable
- 1 x GPS2 Cable
- 1 x GPS1 Cable
- 1 x Power2 Cable
- 1 x Power Cable
- 2 x Telem Cables
- 1 x I2C Cable
- 1 x Micro USB Cable
- 9 x 3M Stickers
- 4 x Screws
- 1 x I2C Board
- 1 x Power Brick Mini
- 1 x Pixhawk 2.1 User Manual
- 1 x Tips Card
- 1x Here 2 GNSS (M8N) GPS Unit
- 1 x GPS Cable for Pixhawk
- 1 x GPS CAN Cable
- 1 x Wrench
- 1 x User Manual
- 1 x 3M Sticker
