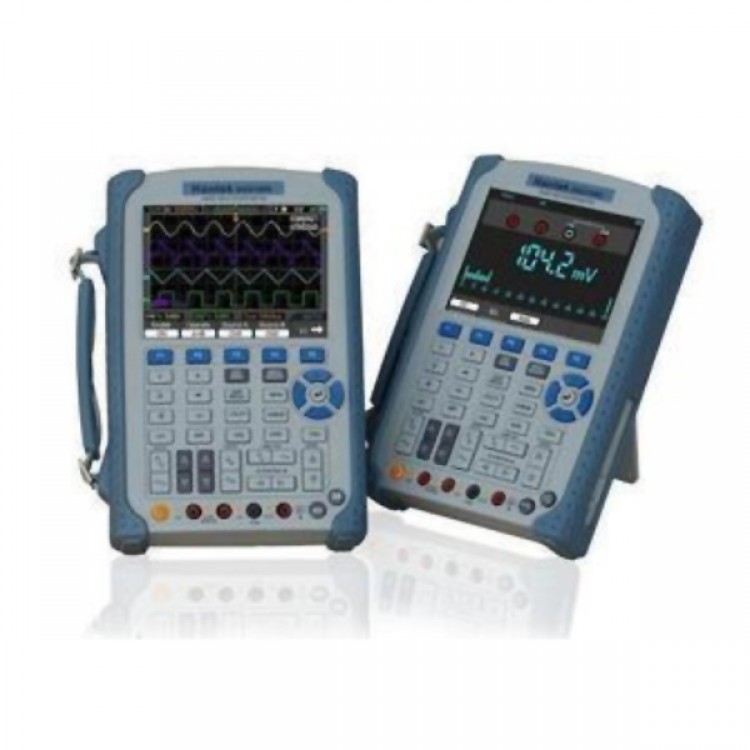

Portable Handheld Oscilloscope Scopemeter DSO1060 60Mhz Multimeter
Hardware Specification :
- Excellent Industrial Design .Direct key for Each Channel ,Time base ,Trigger and DMM,easy to operate.
- Large 5.7 inch TFT Color LCD Display ,Led backlight,Display clearly.
- USB Host/Device 2.0 full-speed interface ,support removeable disk, RS-232/LAN Optional ,Easy to control by PC or long-distance.
- High Bandwidth 60MHz-600MHz Oscilloscope ,and 6000 COUNTS high precision DMM.
- High refresh rate，High Real-time Sample Rate 150MS/s-2GS/s, 50GS/s Equivalent-time Sample Rate.
- FFT , + , - , * , / ,X-Y, 22 kinds of auto measurements, PASS/FAIL Check ,easy to use on production line.
- Multiform Trigger mode ,2 separate Time Base in ALT Trigger mode ,easy to see 2 signal with different frequency.
- 1000 waveforms save and record.
- Battery Power Operation (Installed) Industrial Design.
- Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
- Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
- Labview\VB\VC Second Design instance.
Software:
- Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
Second Design:
- Supply DEMO code (VC,VB,LABVIEW)
| MODE | DSO1060 | ||
| VERTICAL | Channels | 2 | |
| Bandwidth | 60MHz | ||
| Rise Time | 5.8ns | ||
| Input Impedance | Resistance: 1M ; Capacitance: 15 pF | ||
| Input Sensitivity | 10mV/div to 5V/div | ||
| Input Coupling | AC, DC and GND | ||
| Vertical Resolution | 8 bits | ||
| Maximum Input | 400V (DC+AC Peak) | ||
| HORIZONTAL | Real-Time Sampling Rate | 150MSa/s | |
| Equivalent Sampling Rate | 50GSa/S | ||
| Time Base Range | 5ns/div~1000s/div | ||
| Memory Depth | 32k at Single Channel, 16k at Dual Channel | ||
| Time Base Precision | ±50ppm | ||
| TRIGGER | Source | CH1, CH2 | |
| Mode | Edge, Pulse Width, Alternative | ||
| X-Y MODE | X-Axis Input | Channel 1 | |
| Y-Axis Input | Channel 2 | ||
| Phrase Shift | Max.3 degree | ||
| CURSORS AND MEASUREMENT | Voltage Measuremet | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot | |
| Time Measuremet | Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle | ||
| Delay Measuremet | Delay time from ch1 rising edge to ch2 rising edge | ||
| Delay time from ch1 falling edge to ch2 falling edge | |||
| Cursors Measuremet | Manual, Track, Auto Measure Modes | ||
| Waveform Signal Process | | CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert | |
| Storage | Storage | 15 Waveforms and Setups | |
| METER MODE | Maximum Resolution | 6,000 Counts | |
| DMM Testing Modes | Voltage, Current, Resistance, Capacitance,Diode & Continuity | ||
| Maximum Input Voltage | AC: 600V, DC: 800V | ||
| Maximum Input Current | AC: 10A, DC: 10A | ||
| Input Impedance | 10 MΩ | ||
| DISPLAY | TFT LCD Type | 5.7 Inch with LED Backlight Display | |
| Display Resolution | 240 (Vertical) x 320 (Horizontal) Dots | ||
| INTERFACE | USB | USB Host / Device 2.0 Full Speed Supported | |
| Optional | RS232, LAN | ||
| POWER SOURCE | Line Voltage Range | AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA | |
| Battery Power (Installed) | 6 Hours (Li-ion Battery) | ||
| MECHANICS | Dimension | 245 x 163 x 52 (mm) | |
| Weight | 2.5Kgs | ||
| Other | GND Reference | Oscilloscope and Multimeter Independence | |
