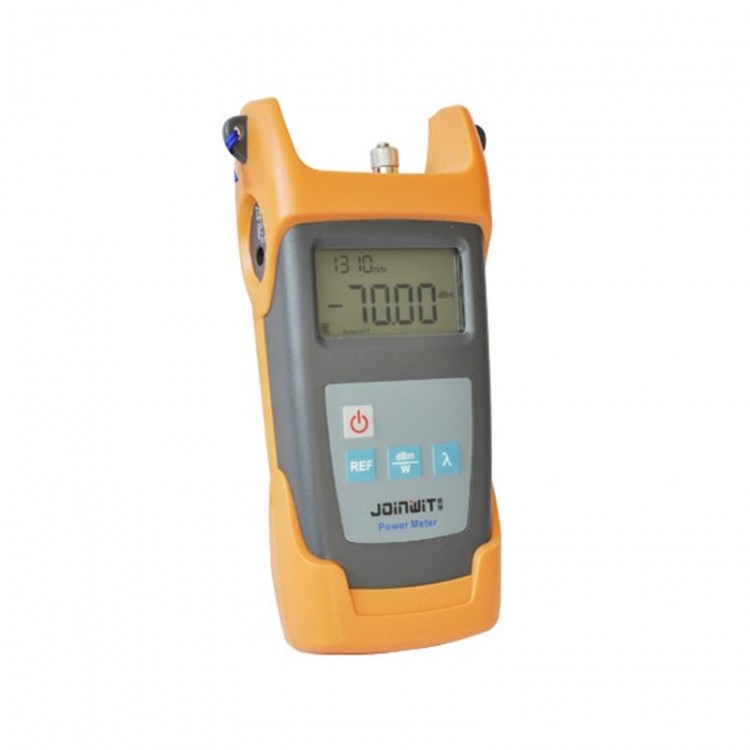

Portable JW3211C Optical Power Meter -50~ +30 dBm for Maintenance CATV

Availability: In stock, usually dispatched in 1 business day

  • Price:$83.99
  • Price in reward points: 840 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $82.31 $80.63 $78.11 $74.75 Contact US
Quantity:

Portable JW3211C Optical Power Meter -50~ +30 dBm for Maintenance CATV

Description:
- W3211 optical power meter is a handheld optical power meter, newly released in 2007, which can be used for absolute optical power measurements as well as for relative loss measurements in optic fiber networks. An Ø1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, wide range of power measurement, high accuracy, user self-calibration function and reference power level storage.

Features:
-  Wide dynamic measurement range (up to 80dB)
- Reference power level storage(Ref Setting)
- User self-calibration function
- Comfortable LCD display and backlight LCD display supports night operation.
- Power measurements in dBm or mw and insertion loss in dB
- 10 minutes Auto-off function can be activated or deactivated.
- AA alkaline batteries can last more than 140 hours, AC adaptor also available
- Low battery indication

Applications:
-  Telecom Maintenance
- CATV Maintenance
-  Fiber Optic lab testing
- Other Fiber Optic Measurements

Specifications:

Model
JW3211A
JW3211C
Wavelength(nm)
800~1700nm
Detector type
InGaAs
Detector Size
Ø 1.0mm
Measurement Range (dBm)
-70~+10
-50~+30
Uncertainty (dB)
±5%
Calibrated Wavelength(nm)
850, 1300, 1310, 1490, 1550, 1625
Resolution(dB)
0.01
Optical Connector
FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply
Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
Battery Operating Time
140 h with 1.5V Battery(3pcs)
Operation Temperature (°C)
-10~+60
Storage Temperature (°C)
-25~+70
Relative Humidity
0 to 95% (non-condensing)
Dimension(mm)
190 x 100 x 50
Weight(g)
370
