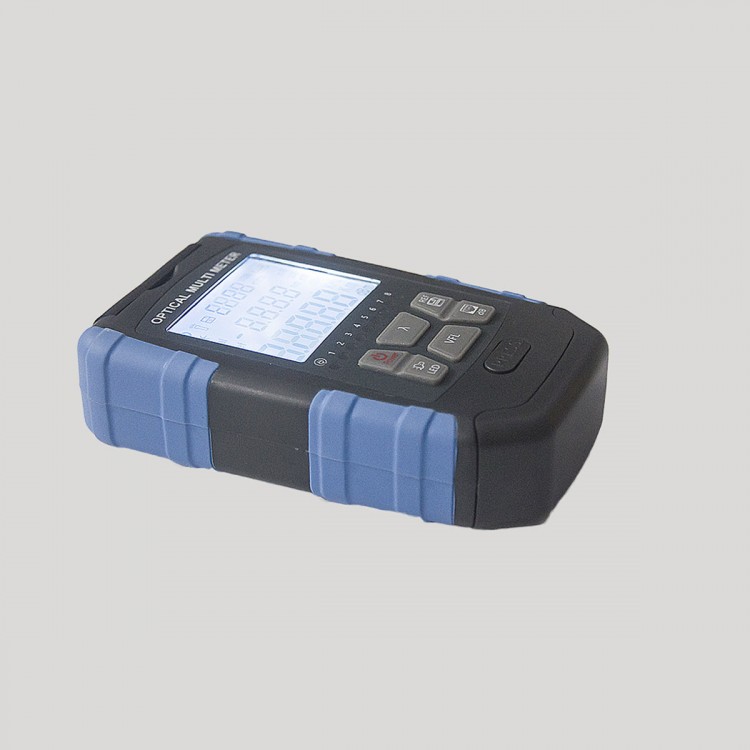

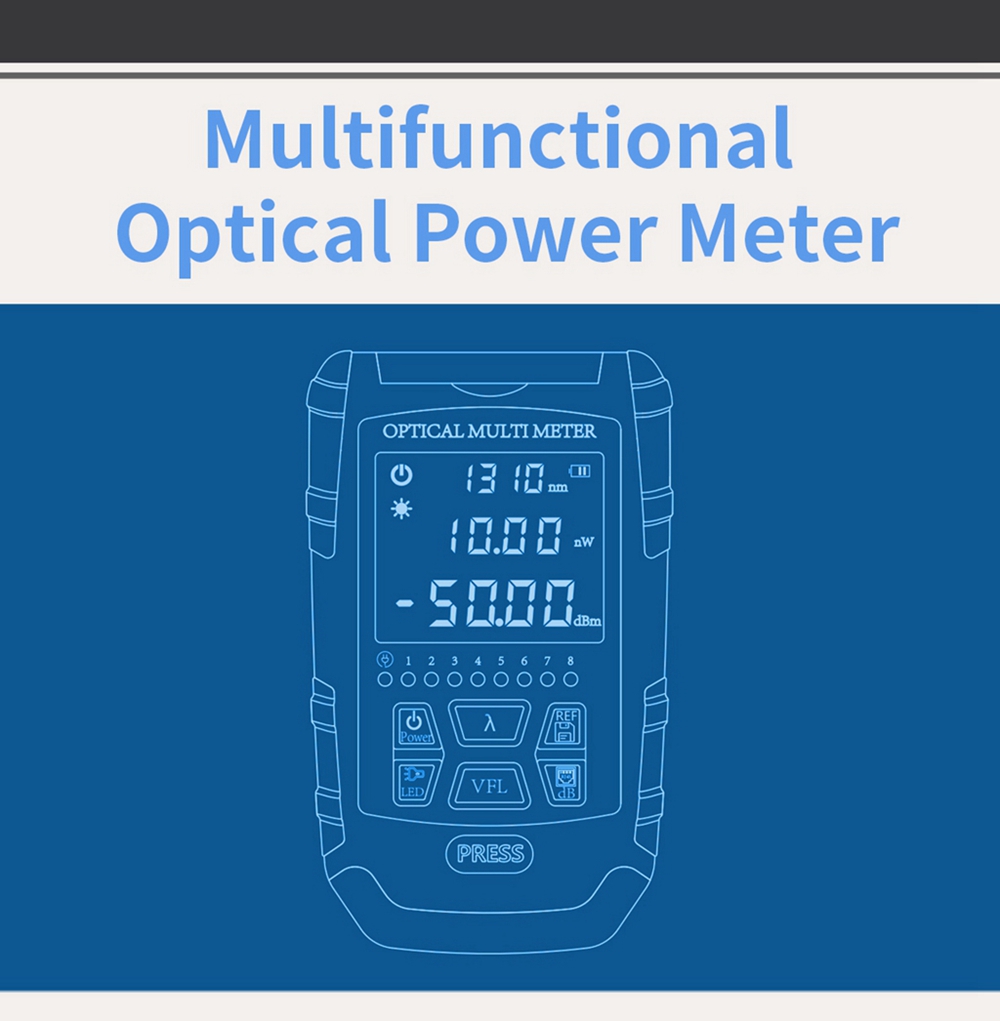

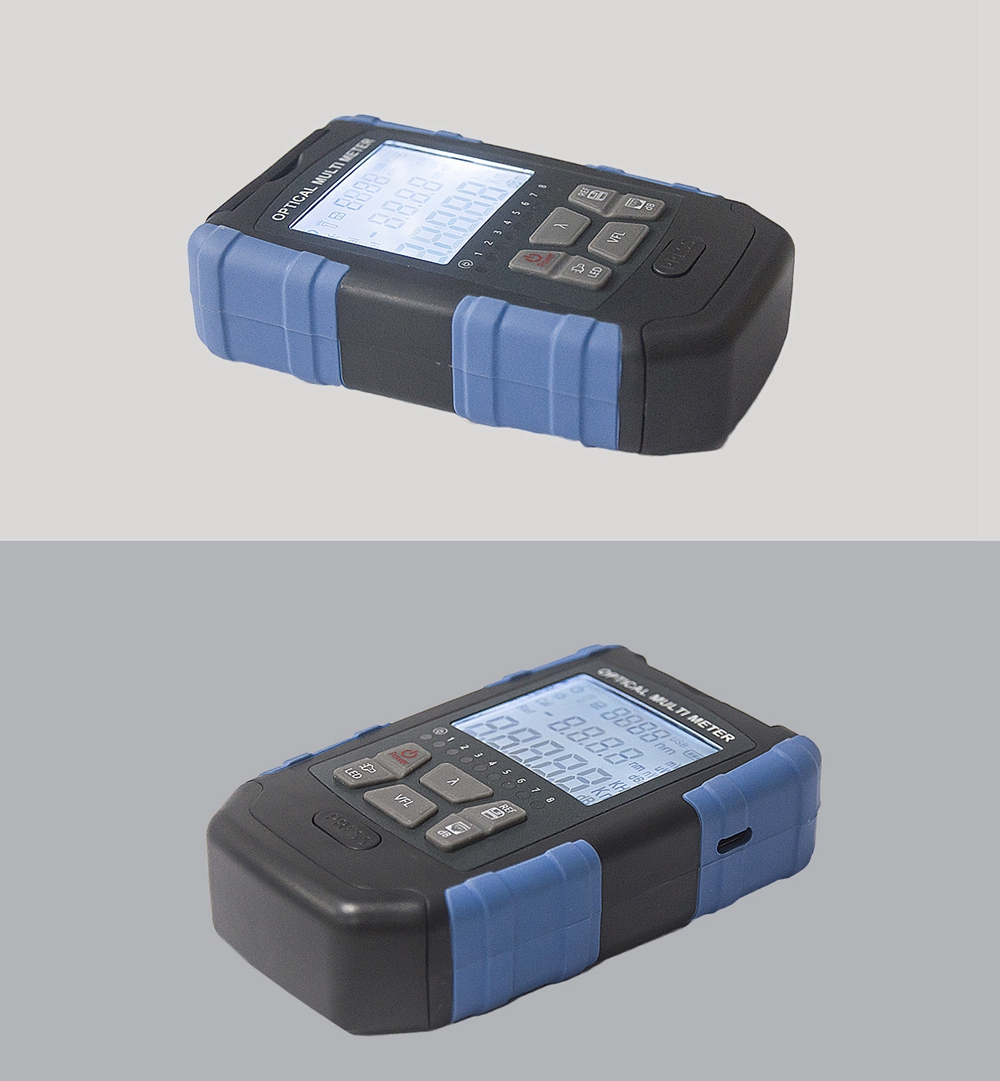

JW3225 800-1700nm Portable Multifunctional High Precision Optical Power Meter for Fiber Optic Measurements

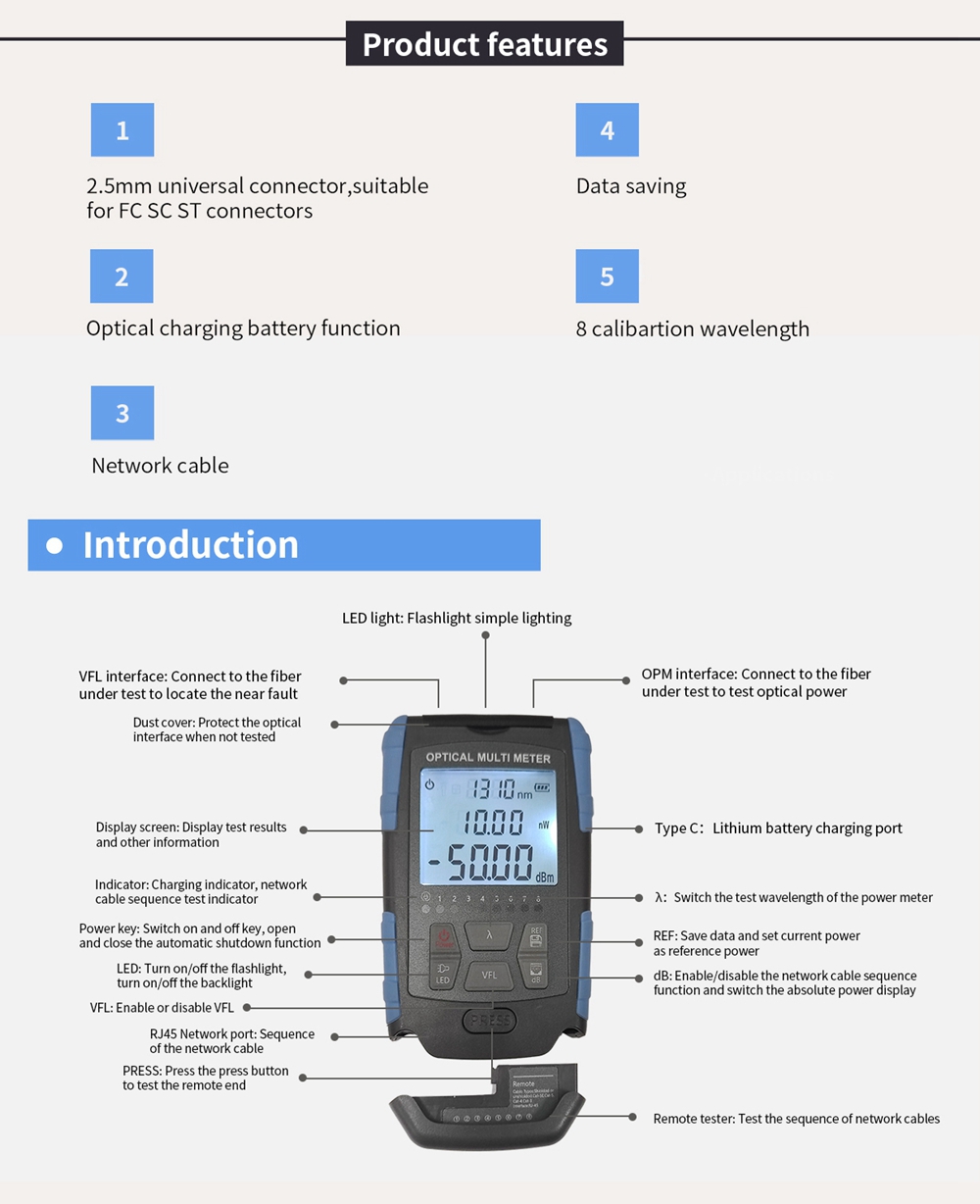

Features:
- High precision, low error, large dynamic range.
- Mini type ergonomic design, single hand operation, flexible and convenient to use.
- Low battery consumption, more than 240 hours continual operation time for two AAA battery.
- Support dry battery, lithium battery.
- 10 minutes Auto-off function can be activated or deactivated.
Application:
- Maintenance in Telecom
- Maintenance CATV
- Fiber Optic Lab Testing
- Other Fiber Optic Measurements

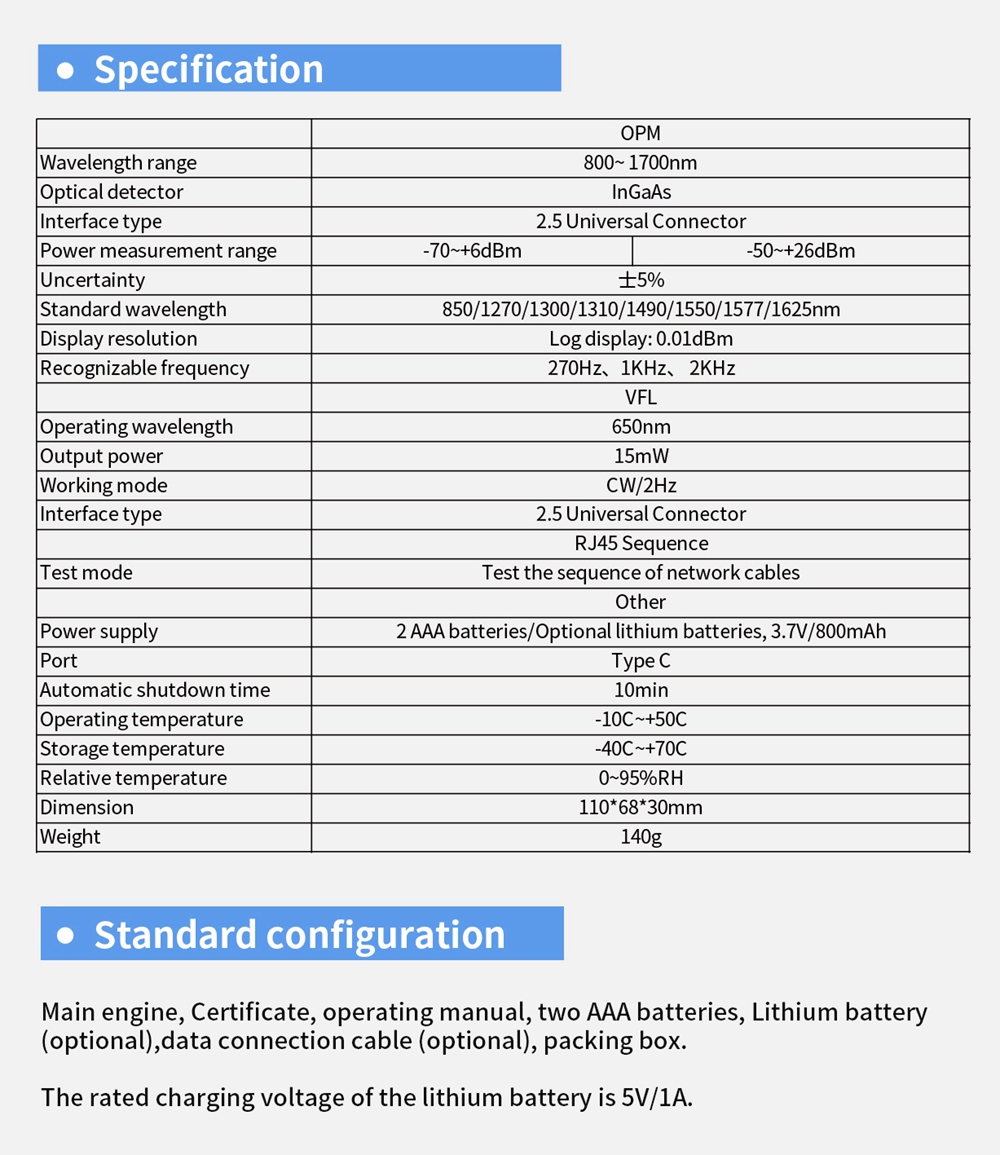

Specification:
Optical Power Meter:
- Wavelength(nm): 800 ~ 1700nm
- Connector: 2.5 Universal Joint
- Detector: InGaAs
- Measurement Range (dBm): -70 ~ +6; -50 ~ +26
- Uncertainty: ±5%

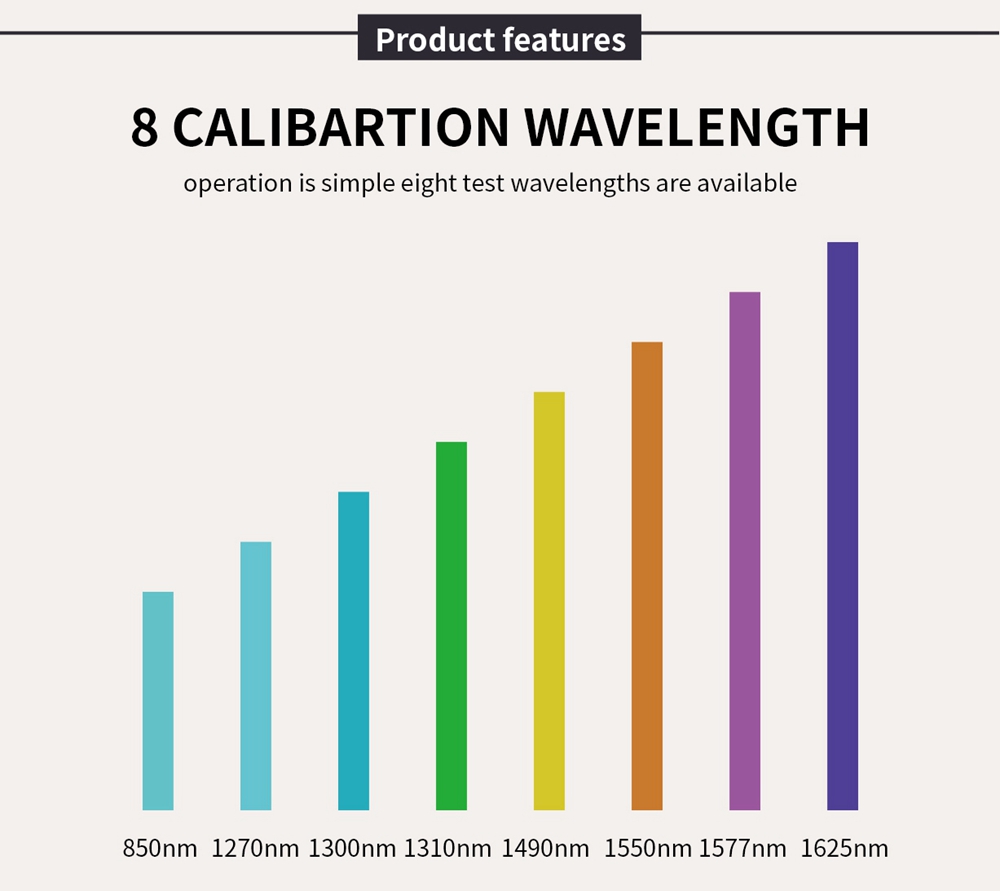

- Calibrated Wavelength(nm): 850, 1270, 1300, 1310, 1490, 1550, 1577, 1625
- Resolution(dB): logarithmic display: 0.01dBm
- Recognizable Frequency: 270Hz, 1kHz, 2kHz

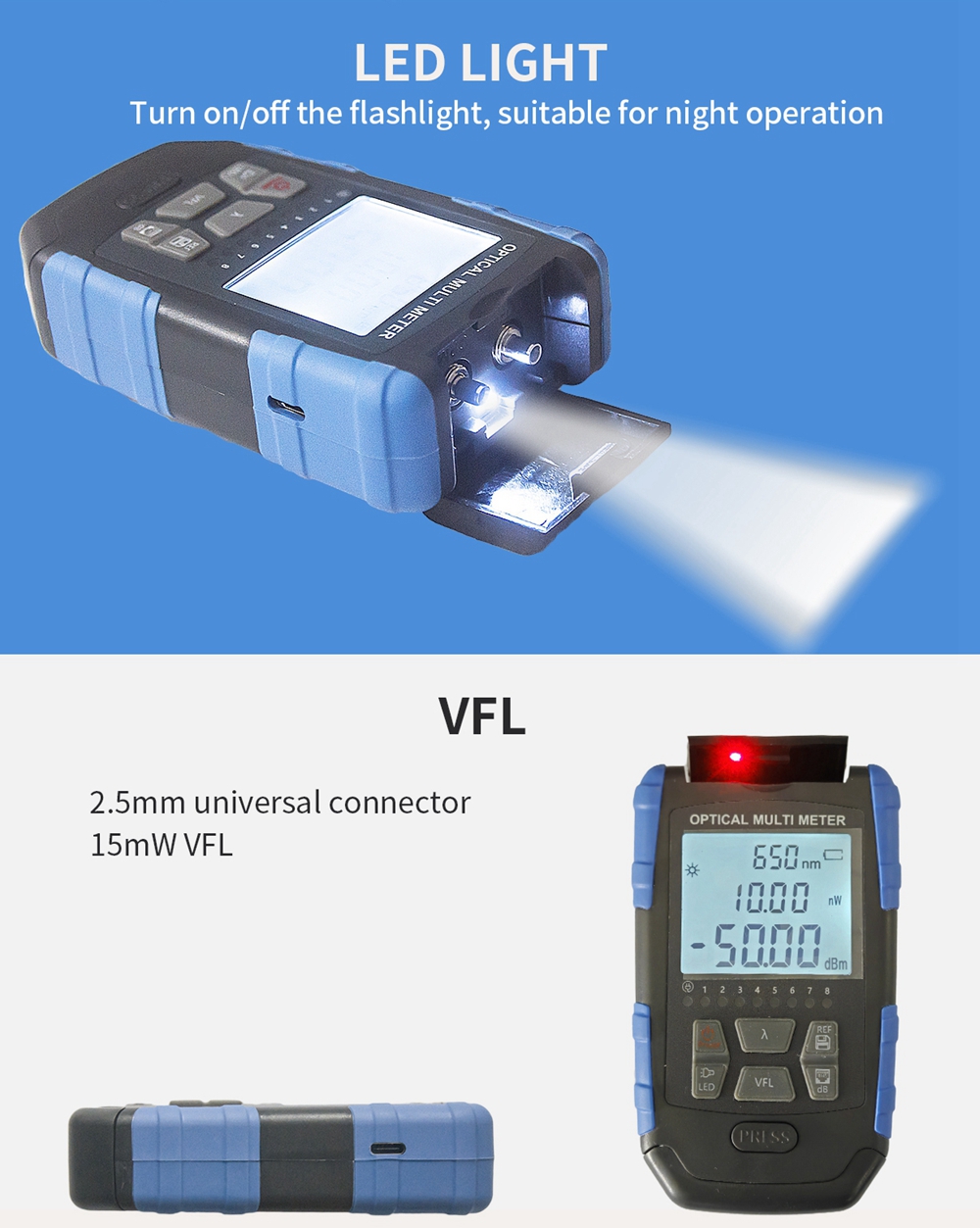

VFL:
- Wavelength: 650nm
- Output Power: 15mw
- Mode: CW/2Hz
- Connector: 2.5 Universal Joint

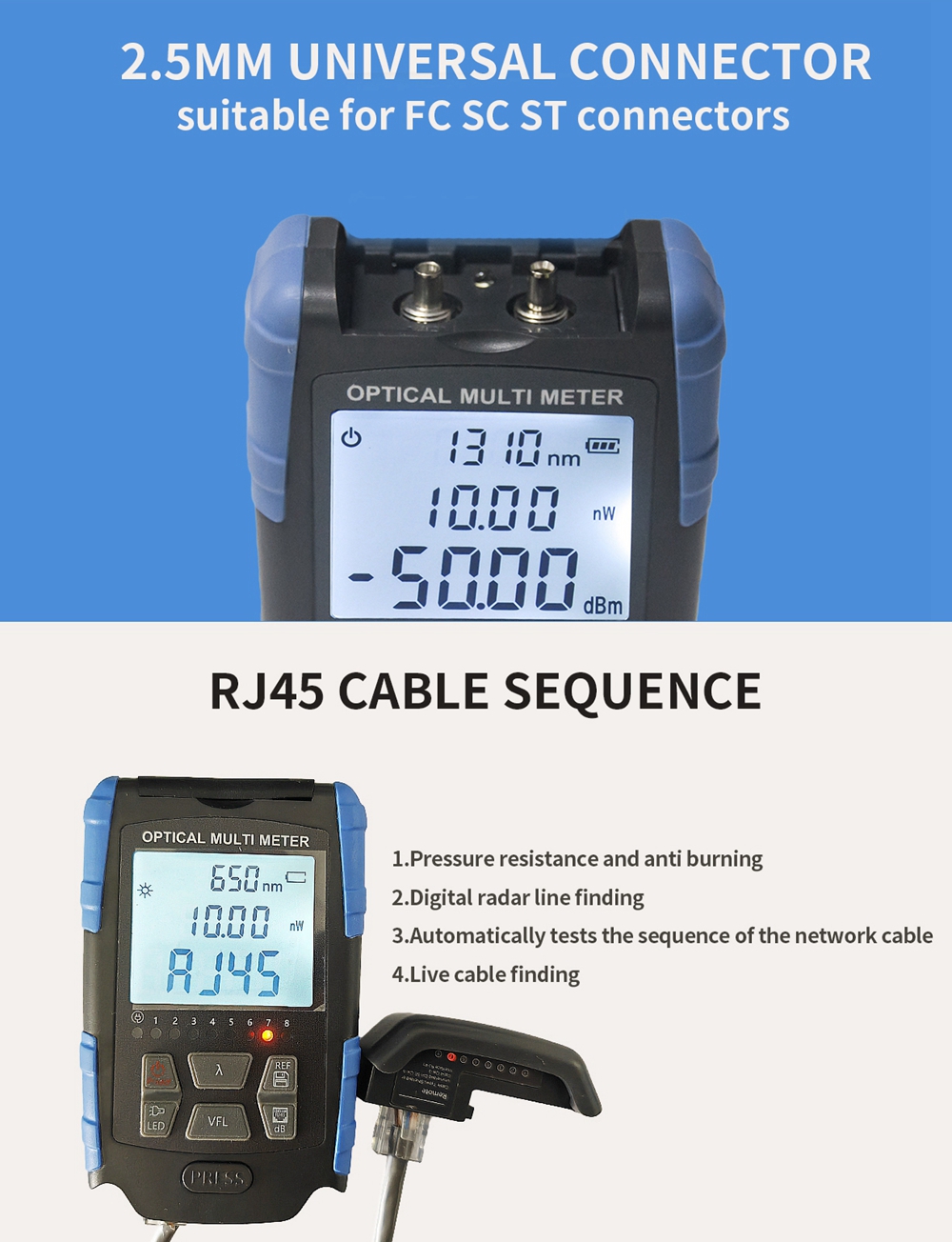

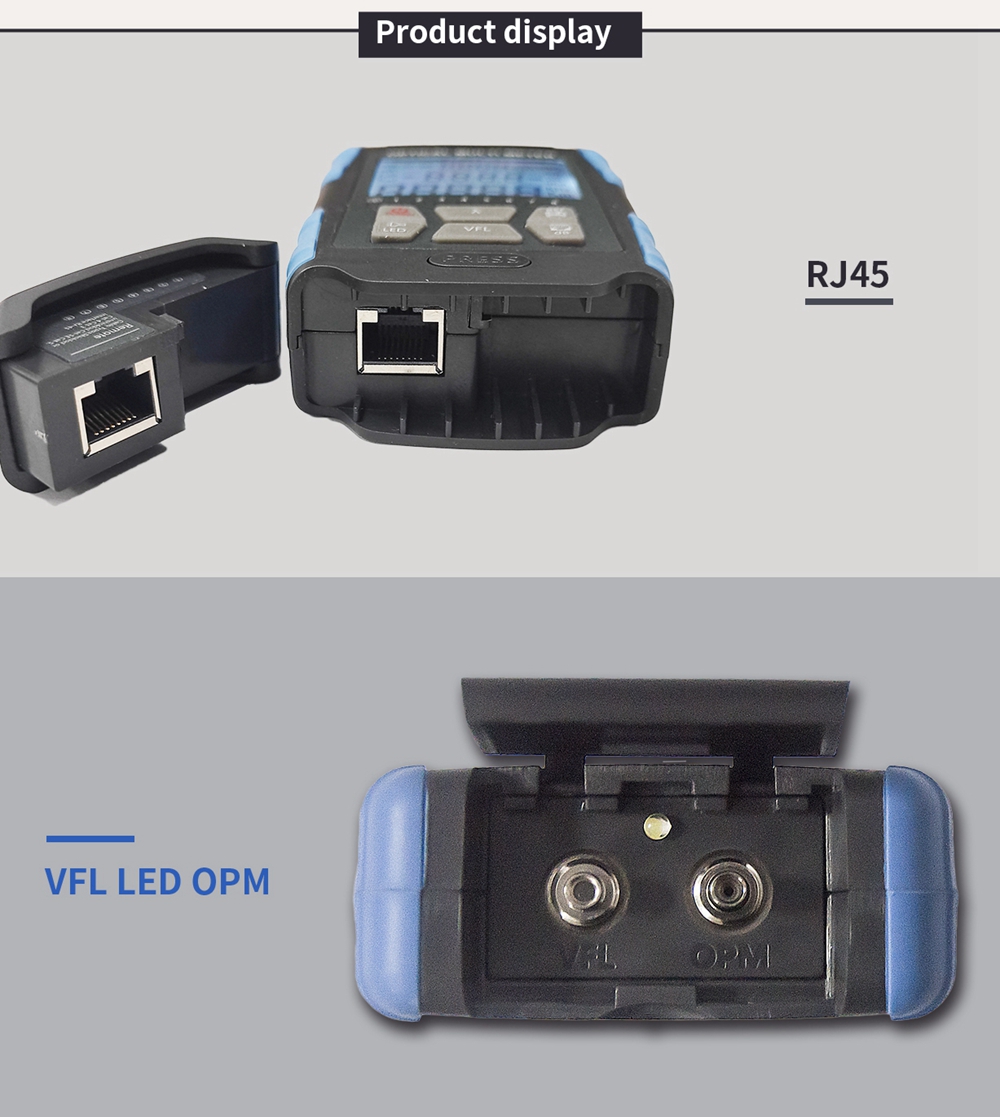

RJ45 Cable Sequence:
- Test mode: test the sequence of network cables
Others:
- Power Supply: 2AAAbatteries/Lithium battery, 3.7V/800mAh (not included)
- Port: Type C
- Automatic Shutdown Time: 10mins
- Working Temperature: -10℃ ~ +50℃
- Storage Temperature: -40℃ ~ +70℃
- Relative Humidity: 0 ~ 95%RH
- Dimension: 110mm x 68mm x 30mm
- Weight(g): 140g
Package Included:
- 1 x Optical Power Meter
Note:
- Battery is not included.
