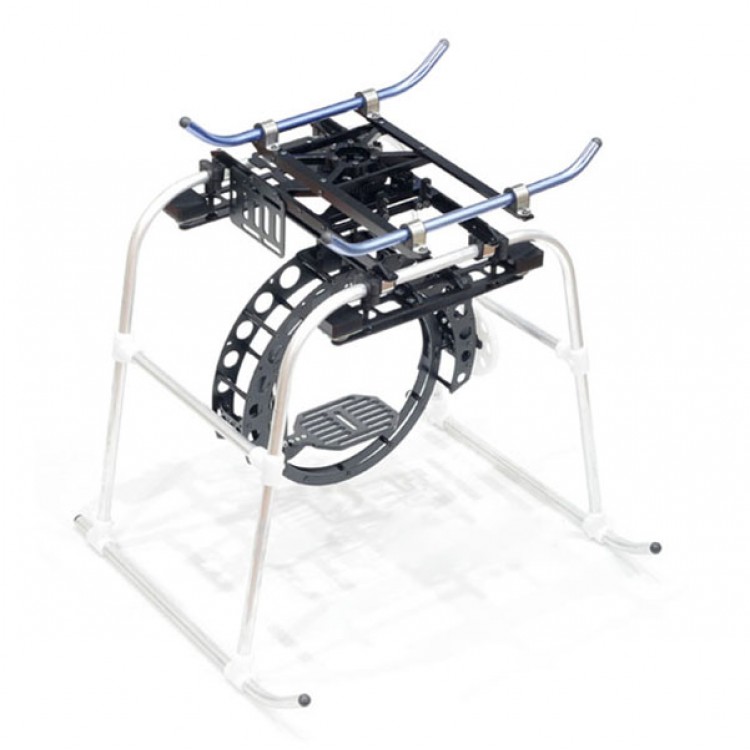

Professional FPV Aerial Application Designed 2-axis Pan-tilt for 50--120 Class Helicopter
Description:
- This product is designed for the professional aerial application of 2-axis pan-tilt, work great for rc helicopter from 50 to 120 petrol helicopter, either electric or oil moving helicopter can be installed. It is excellent with a four-point link performance shock suspension system, on the inhibition by helicopter in the high-frequency vibration generated significant results. X, Y two-dimensional axial motion design, X-axis and Y axis can rotate 360 degrees. X-axis with a unique worm control (see photo following ), you must use special rotary actuator (closing round of the steering gear), this control method can make it spin more smoothly, thereby providing fluid Tracing shooting. This product is sturdy aluminum alloy material, the structure is stable and reliable.
- This product Weight 1.96kg (Excluding steering gear --servo), the maximum load 2kg. Factory assembled most parts, customer just need simplely assemble it when you got it . This product does not contain the steering gear--servo and electronic equipment, user will purchase the two steering gear--servo and remote control.
- X-axis control options suggested Futaba S5801 Servo proposed special rotary actuator, Y-axis can choose other large torque, high-speed steering gear--servo, or use the GY401 +9254 this kind classic match equipment. The products and the helicopter's connection--- O-ring soft connect , O-ring user need to prepare yourself.
Specifications:
- Size: 410mm (length) x 440mm (width) x 450mm (high)
- Net weight: 1.88kg
- Can set the size of objects: 150mm (W) x 130mm (high)
- Can carry the weight of the object: 2000g
- Control of Axial: 2-axis
- Control: X-axis worm, Y-axis straight-tooth
- Accessories: Compatible Futaba standard servo gears 2 pc
- Shipping method: assembly of spare parts (not including steering gear--servo)
