PZCT-2 Smallest Split Base AC Current Transformer CT 100A 100mA for Electric Energy Meter

PZCT-2 Smallest Split Base AC Current Transformer CT 100A 100mA for Electric Energy Meter

Description:

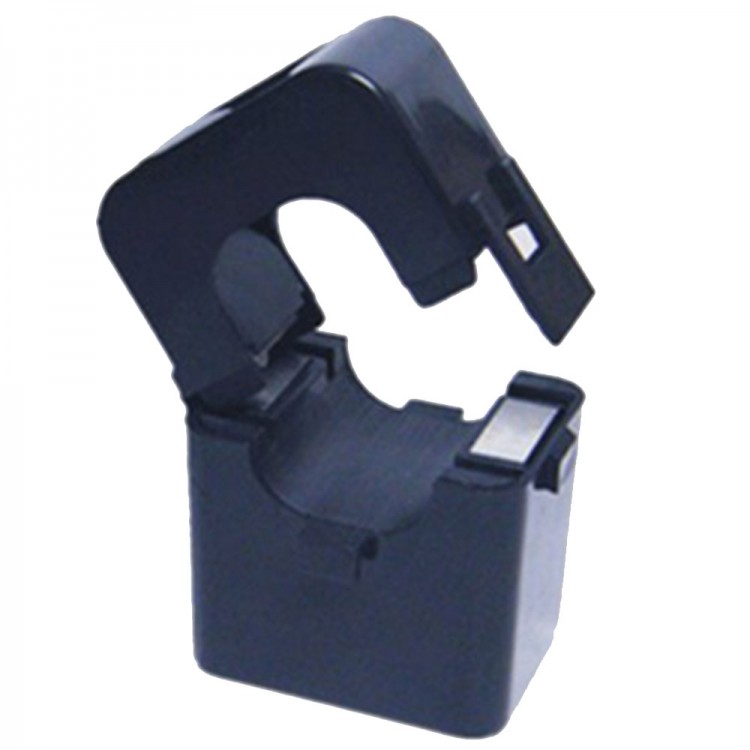

This is a mini split base current transformer, it’s smal (output 100MA), the diameter of inner hole is 16mm, the accuracy is ≤0.5 grade, using snap joint structure, it can be fixed to the cable directly through nylon ties, it has many advantage such as bijou, occupy small space, quick installation and so on.

Range of Application:
- The energy meter which mating this transformer, AC 220v, 380v power supply can both  be applied.
- When you fix the energy meter, you don’t need to cut off the power if you use this product.

Features:
- Input coil is built-in; small and light, easy to install
- Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability

Specification:
- Temperature: -40~+85 deg c
- Relative humidity: <=90% when 40 deg C
- Operating frequency: 50Hz-60Hz
- Insulation endurance grade: B (130 deg C)
- Insulation resistance: >1,000MOhm
- Dielectric strength: Can support 1000V/1 minute
- Flame resistance: Conform to UL94-Vo grade
- Internal resistance: 42Ohm

Precautions:
1. The CT primary should be connected in series with the test current loop, the secondary should be as work in the short-circuit state
2. The secondary circuit is not allowed open circuit, so please do not install fuse.

Package included:
- 1 x Current Transformer
