QBD-RF-PA-3G-4GHz-0.5W RF Power Amplifier Module RF Power Amp for Signal Transmission Amplification
Application Scenarios:
1. Video transmission
2. Data transmission module and satellite signal transmitting
3. Electromagnetic compatibility transmitting system
4. Software radio transmitter
Parameters:
1. Power supply: TYPE-C cable (red and black line)
2. Module frequency range: 3G-4GHz (broadband power amplifier)
3. Gain: 27DB (depends on frequency)

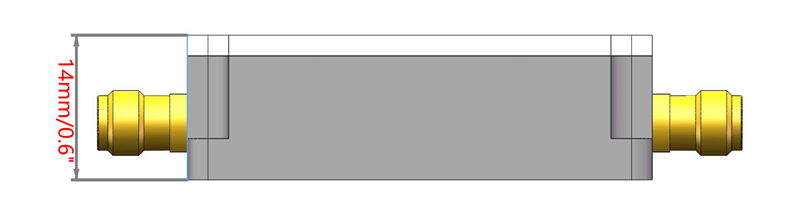

4. Size: 4.5 x 3 x 1.4cm/1.8 x 1.2 x 0.6" (excluding the size of SMA connectors). Net weight: 66G/0.1LB (including amplifier and type-c cable)
5. Current: 0.5A (5V/0.5A power adapter is recommended)
6. P1dB=27dBm at 3.5GHz (0.5W)
7. Output interface: SMA female connector. Input and output impedance: 50 ohms

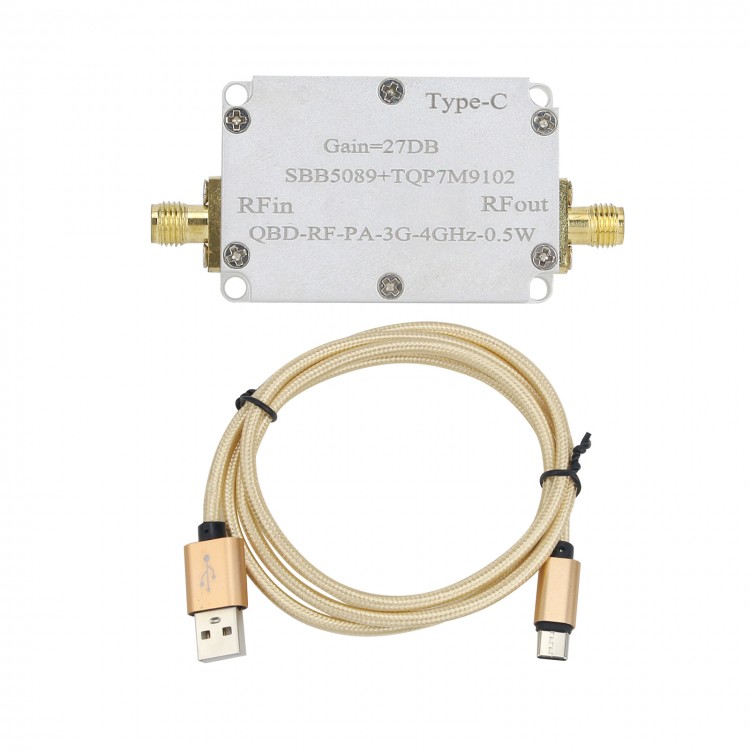

Package Included:
- 1 x RF Power Amplifier
- 1 x Type-C Cable
