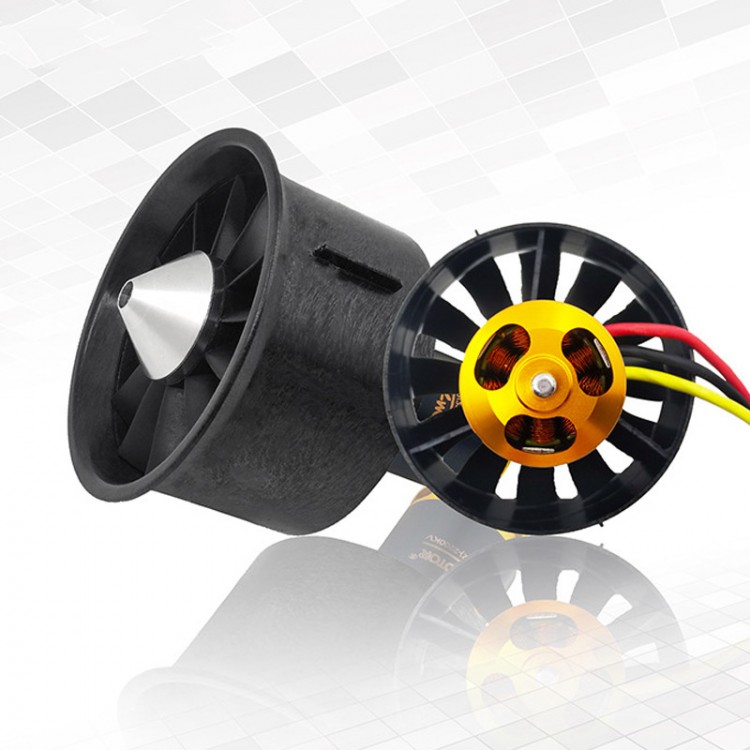

QF2822-3800KV 64MM Ducted Fan Motor 12-Blade EDF Remote Control Model Airplane Brushless Motor

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.29
  • Price in reward points: 373 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.54 $35.80 $34.68 $33.19 Contact US
Quantity:

QF2822-3800KV 64MM Ducted Fan Motor 12-Blade EDF Remote Control Model Airplane Brushless Motor

Description:

With QF2822-3800KV motor and 12 blades, 64mm duct is powerful and efficient! It features low temperature. Suitable for power modification of ducted UAV below 1200g. It is an ideal choice for you!

Motor Parameters:
- Motor series: QF2822 (2222)
- KV: 3800KV
- Structure: 9N6P
- Stator diameter: 22MM
- Stator length: 22MM

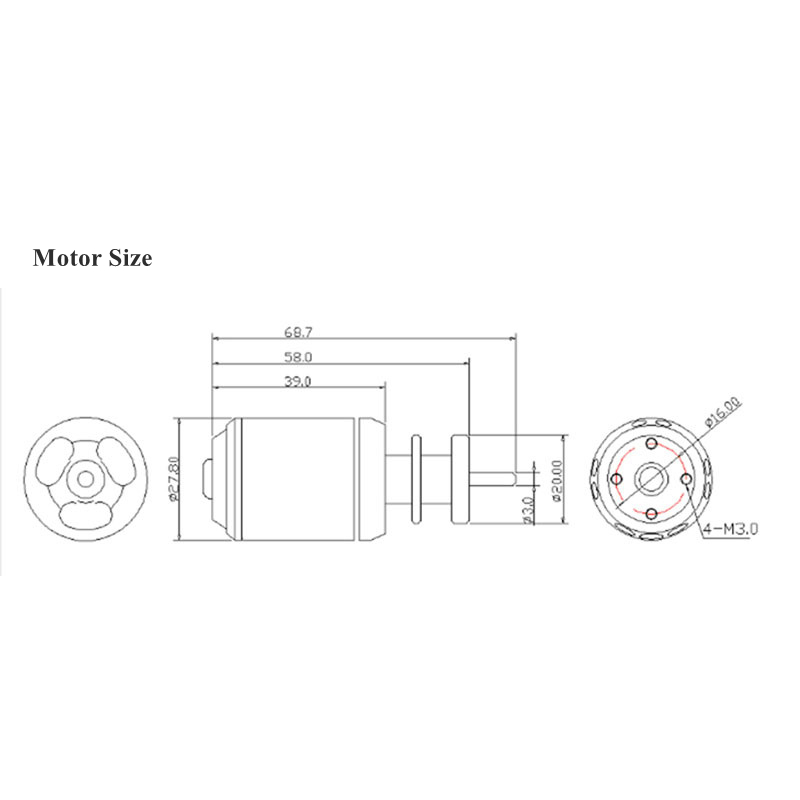

- Motor size: 28*60MM
- Motor weight: 90g
- No-load current: 3.5A
- Maximum continuous power/3min: 1000W/3min
- Maximum continuous current in 1min: Within 70A/1min

Package Included:

- 1 x Set of Ducted Fan Motor

Note:
- It is recommenced to use 3-4S lithium battery which is not included.
