QI Wireless Charger Tester Aging Wireless Charging Tester with LED Screen Supports 5W 7.5W 10W 15W

QI Wireless Charger Tester Aging Wireless Charging Tester with LED Screen Supports 5W 7.5W 10W 15W

Features:
* Full-featured wireless charging tester with a magnetic base: It can measure 5W, 7.5W, 10W and 15W. It is compatible with 99.9% of mainstream schemes on the market.
* Application: for temperature control tests, R&D verification, quality inspection, production testing and aging inspection.
* Multi-function button: It can measure conventional parameters of wireless chargers such as output voltage and current. It is also optimized for the relevant test items in the development process of engineers, adding many additional functions.

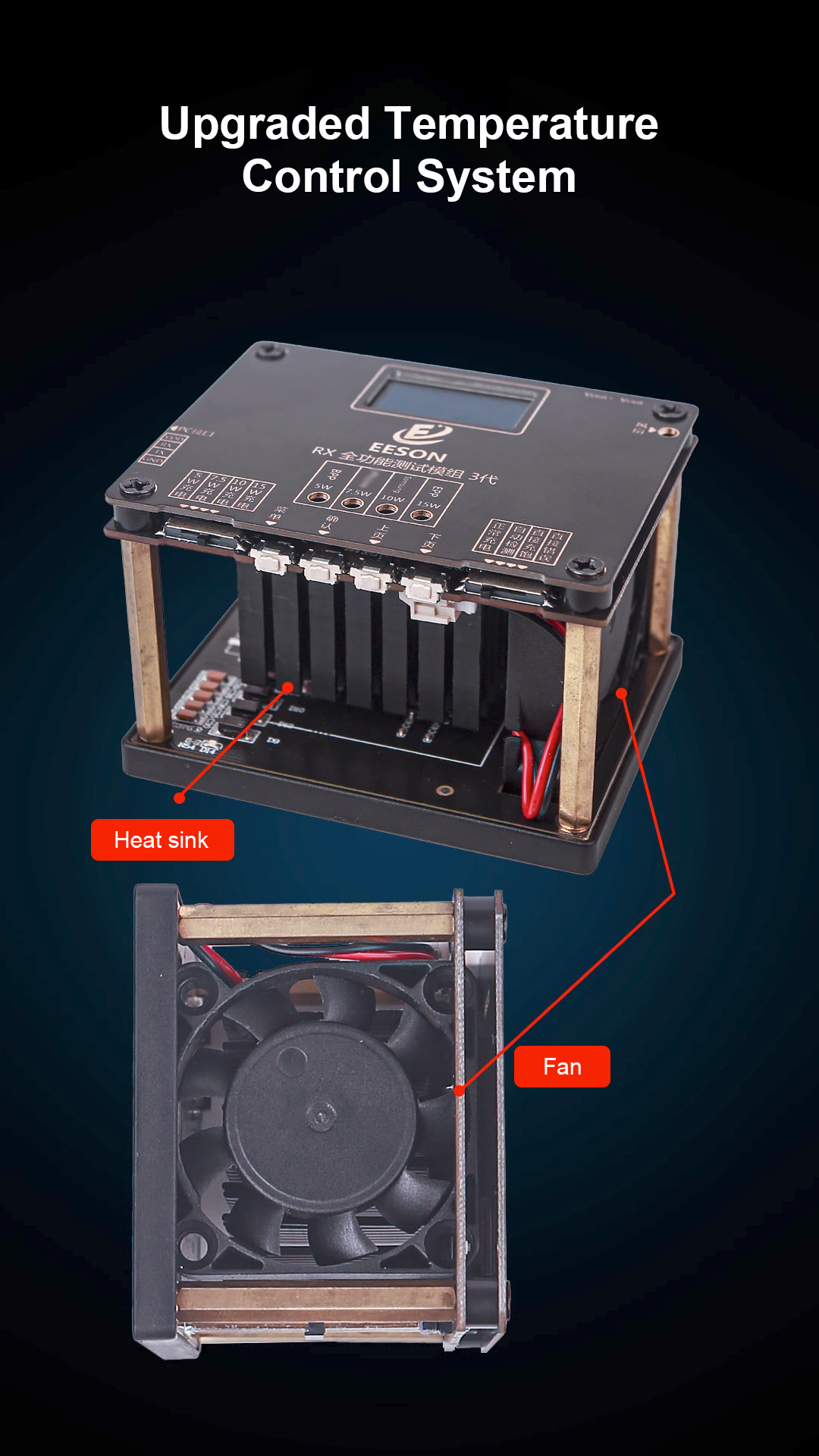

* Stable performance and upgrade temperature control system. No additional power supply is required for the tester. Put it on a wireless charger and it can work very conveniently. Upgraded heat sink and an intelligent temperature control fan. The starting and stopping temperature of the fan can be set, to ensure fast heat dissipation and low temperature operation of the module. It can be used to meet the aging test requirements of production lines.

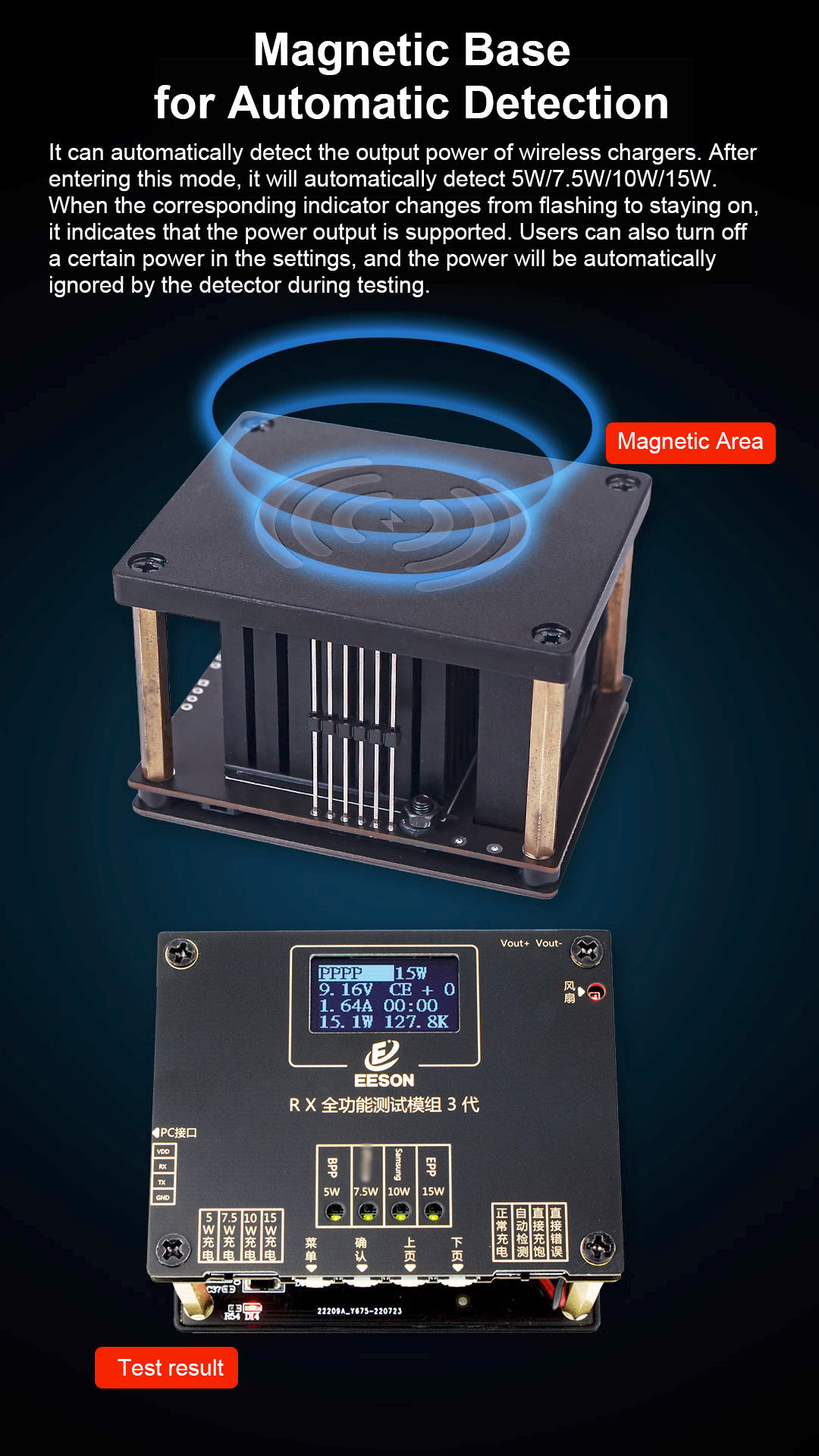

* Magnetic base for automatic detection: It can test the performance of wireless chargers. It can automatically detect the output power of wireless chargers. After entering this mode, it will automatically detect 5W/7.5W/10W/15W. When the corresponding indicator changes from flashing to staying on, it indicates that the power output is supported. Users can also turn off a certain power in the settings, and the power will be automatically ignored by the detector during testing.

Package Included:
* 1 x Wireless Charger Tester

Functions:
1. VRECT, CURRENT (test current and voltage setting):


2. FAN (fan settings):
(1) FAN-> normally on (ON), normally off (OFF) and automatic (AUTO). When the automatic mode is turned on, TEMP can set the automatic fan temperature.
(2) TEMP-> The automatic fan mode is turned on and the fan will turn on when the temperature is exceeded.

3. AUTOTEST:
(1) It can independently turn on and off the automatic test modes 5W, 7.5W, 10W and 15W.
(2) ENDTIME-> fully automatic test mode test completion switch to the next file bit time, the unit is seconds.
(3) RUNTIME-> test mode to determine the PASS and FAIL time, and the unit is seconds.

4. RX menu settings:
(1) EASYEPP->15W file bit simple mode (high compatibility)
(2) BUZZER-> buzzer switch
(3) VIEWER-> Main interface settings after booting
(4) VER-> software version number
(5) EASY10W->10W file bit simple mode (high compatibility)

5. INIT SET (factory reset parameter settings):

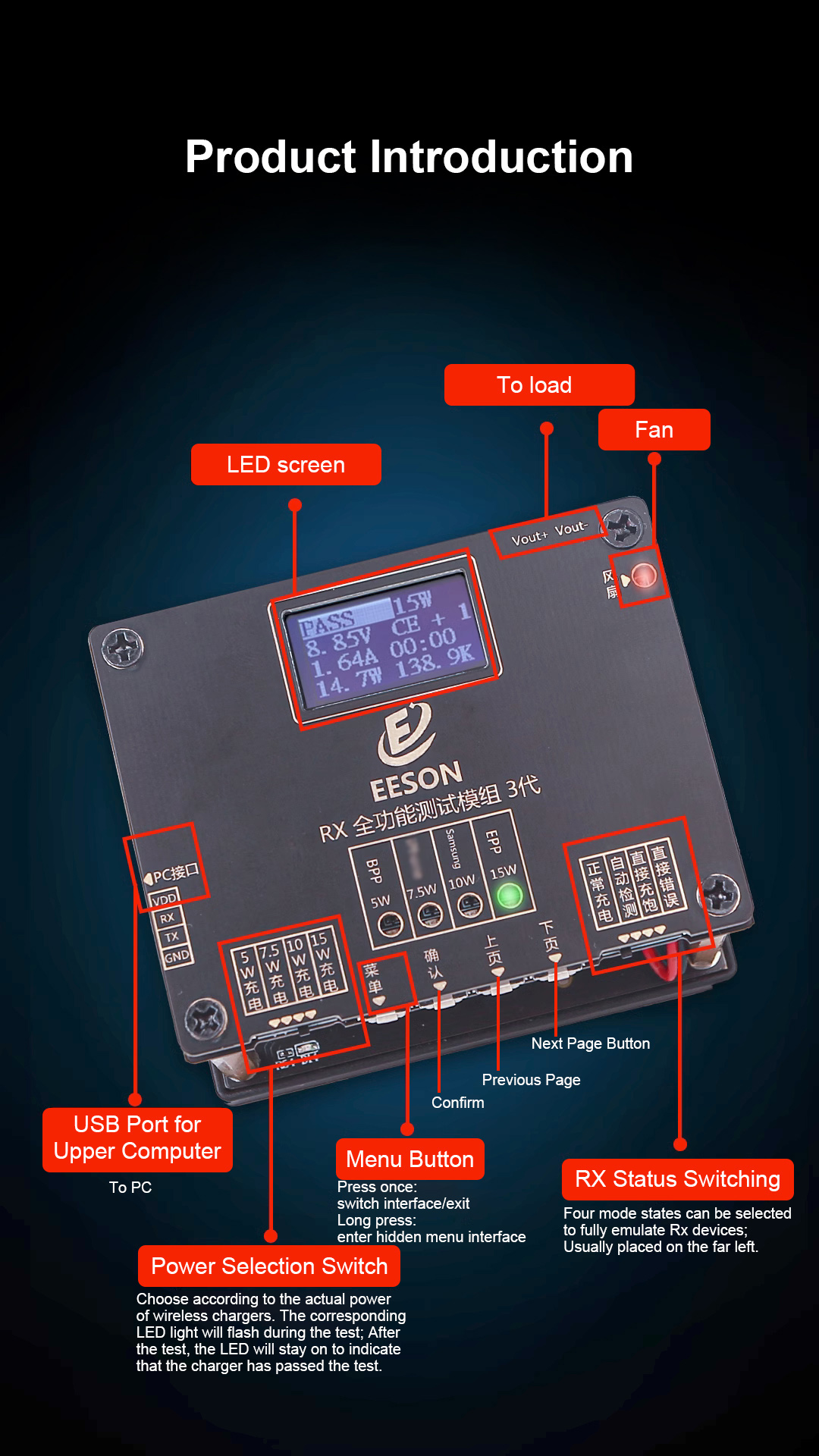

Menu Button

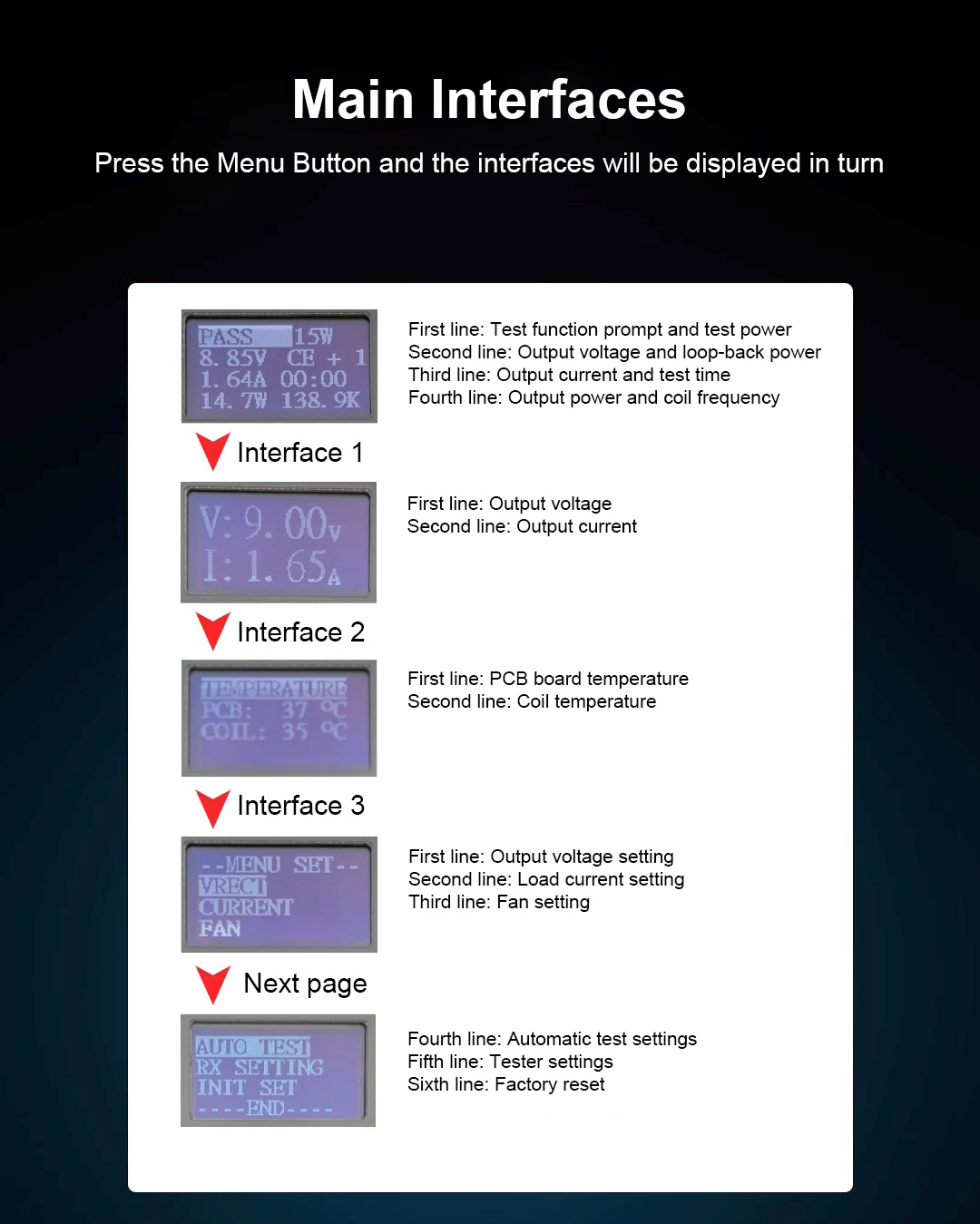

* Short press: switch to display (1) main interface window (2) voltage and current window (3) temperature window.
* Long press: Enter the function setting page.

Confirm Button
* Short press: FOD test mode. FOD will be displayed at the top left of the main screen window.

Previous Page Button:
* Short press: Reserved (non-functional).

Next Page Button:
* Short press: Switch electronic/external load.
