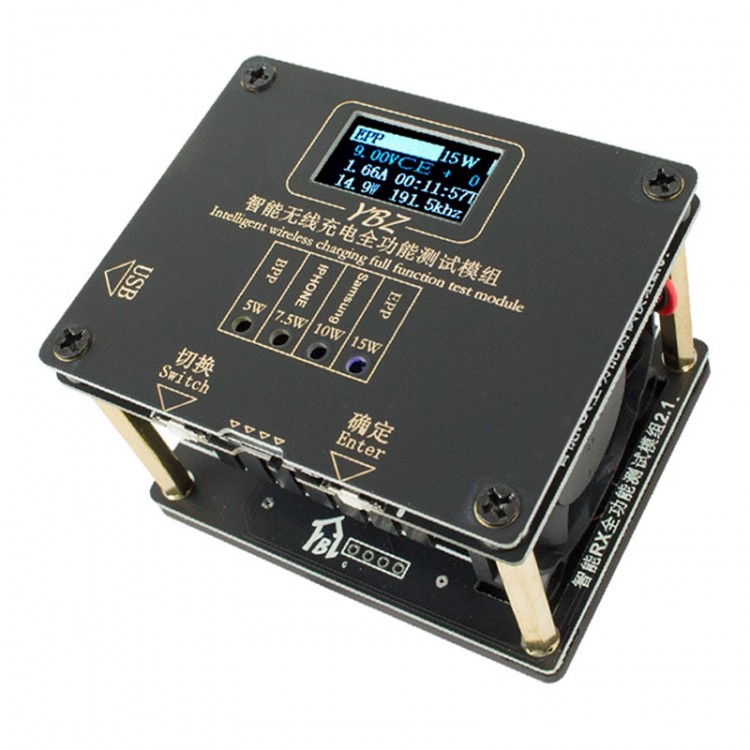

YBZ 15W QI Wireless Charger Tester Wireless Charging Tester Aging Rack Compatible with 10W/7.5W/5W

YBZ 15W QI Wireless Charger Tester Wireless Charging Tester Aging Rack Compatible with 10W/7.5W/5W

Read before purchasing:
- It supports EPP 15W wireless charging test, and is compatible with 10W, 7.5W and 5W.
- The wireless charging tester is compatible with mainstream SOC solutions such as Injoinic, ConvenientPower, Lianzhi, Ismartware, Southchip, Vptek, Beiland, Acutepower, Nuvolta, Chipsvision, for IDT, CR Micro, Sunplus, NewEdge, Fang Xin, Huier, Bee, Zhuoxinwei, for Nuvoton, for ST, Xinlang, Maxic, Newyea and for Richtek.
- Although our products have been compatible with mainstream solutions, there are still a small number of solutions that are incompatible, which is normal. You can contact customer service for technical support.

Features:

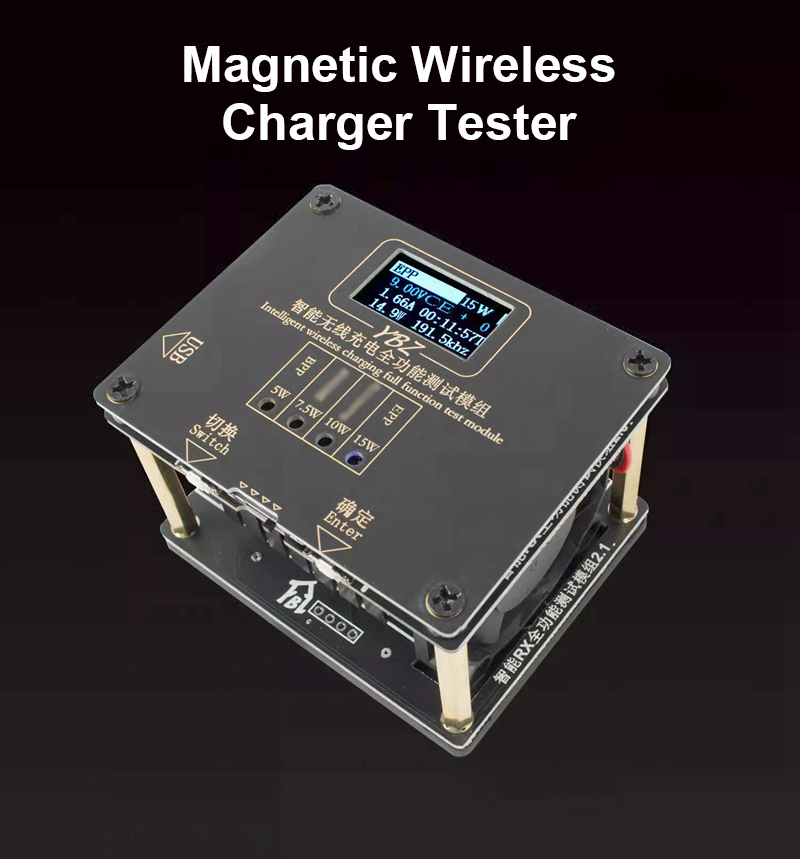

- Intelligent magnetic wireless charging tester
- Smart, efficient, portable and accurate

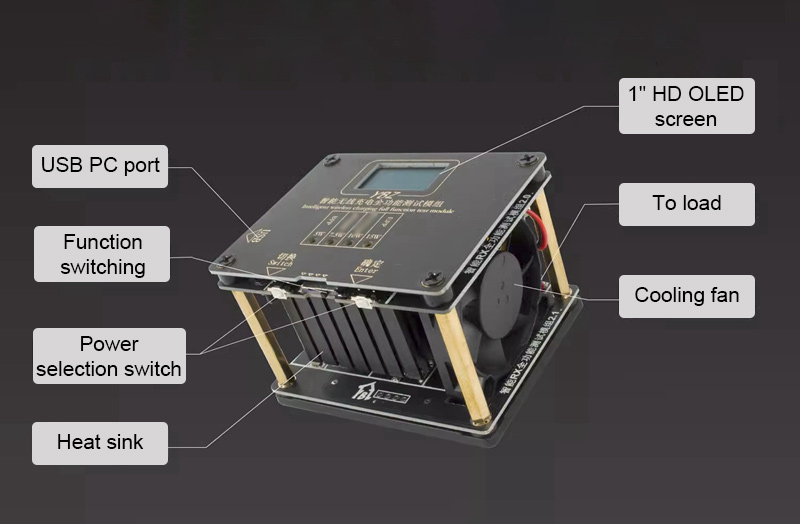

- With 1" HD OLED display
- High-quality MOSFETs are used as built-in load and large heat sinks
- After the intelligent temperature control fan is automatically turned on at 60°C, it can assist in heat dissipation, and the whole test is not afraid of high temperature
- The new operation logic and two function switching buttons bring a super smooth experience
- Power switch supports 5W, 7.5W, 10W and 15W

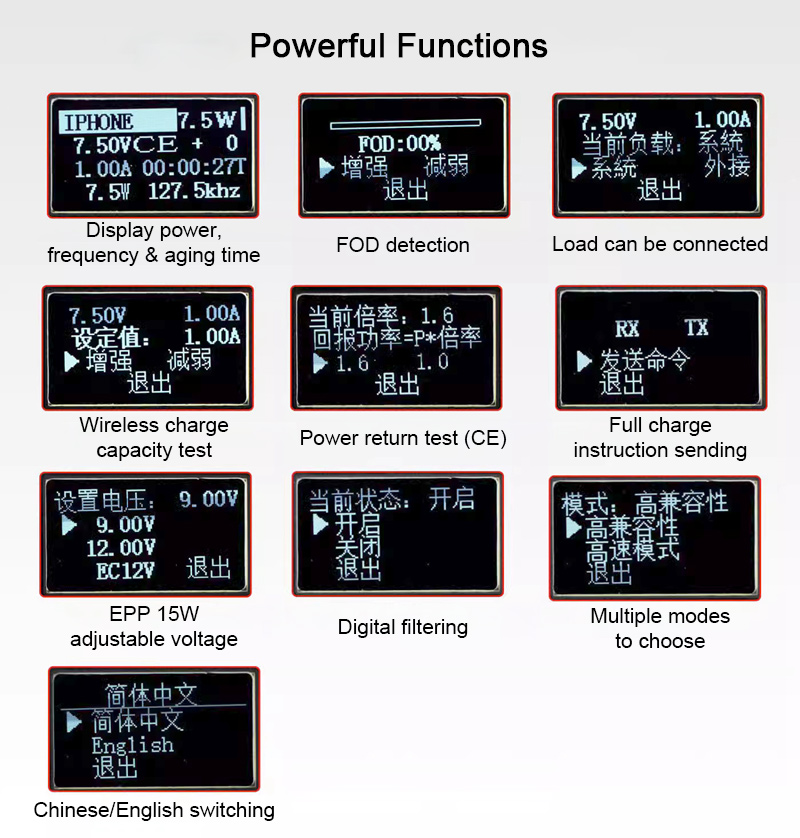

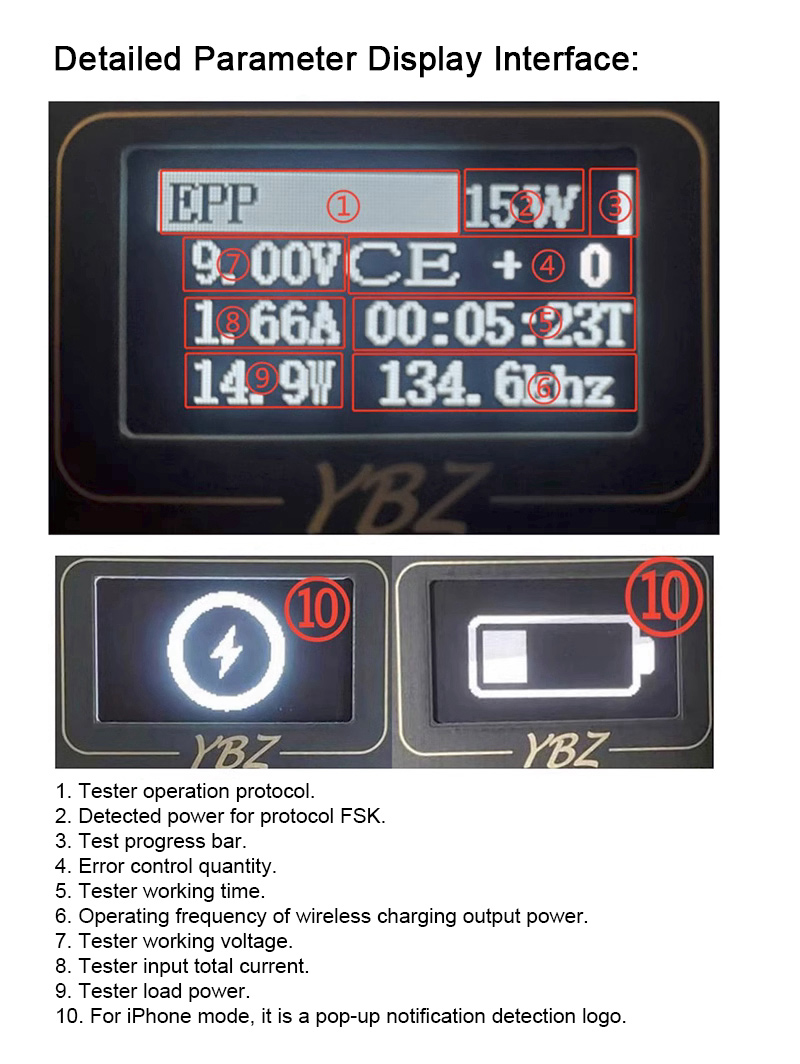

- Compatible with 5W/7.5W/10W/15W. It can test voltage, current, power and frequency

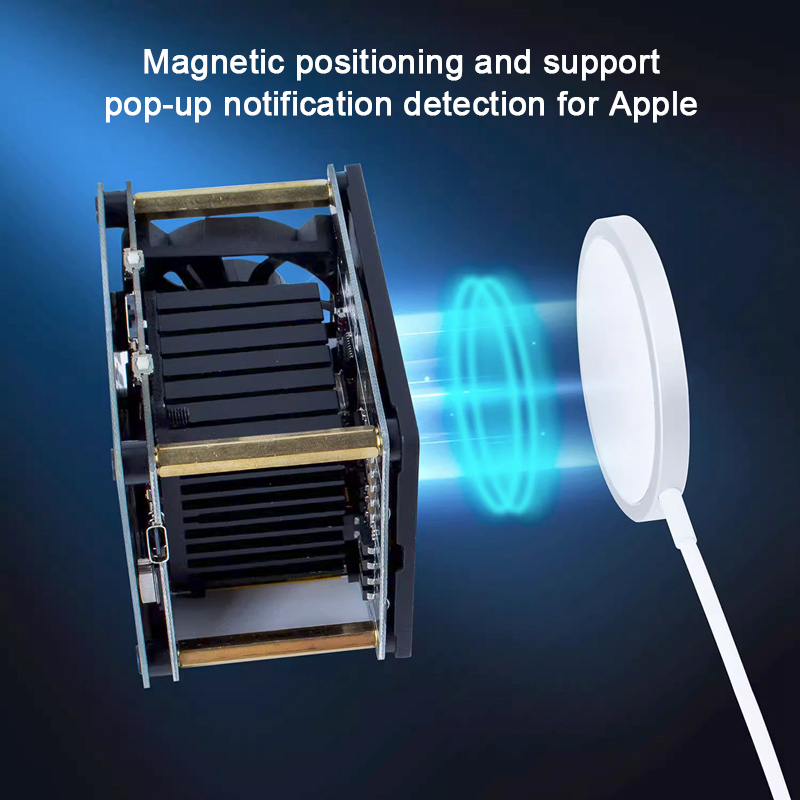

- Magnetic positioning and support pop-up notification detection for Apple

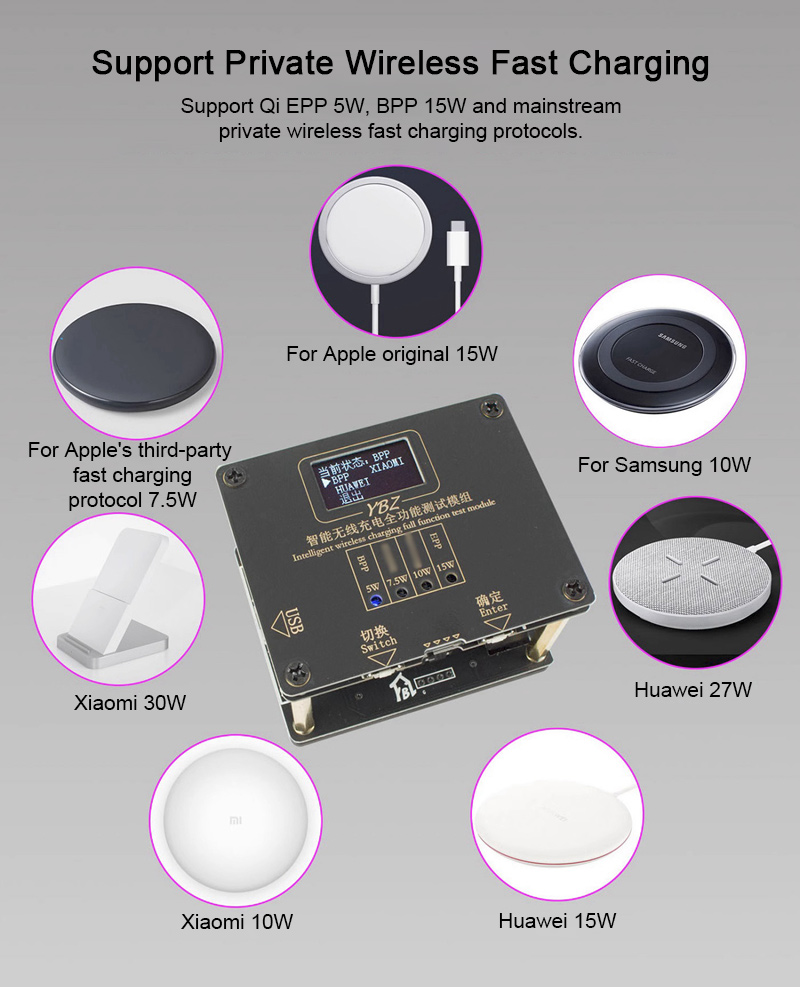

- Support private wireless fast charging: Support Qi EPP 5W, BPP 15W and mainstream private wireless fast charging protocols

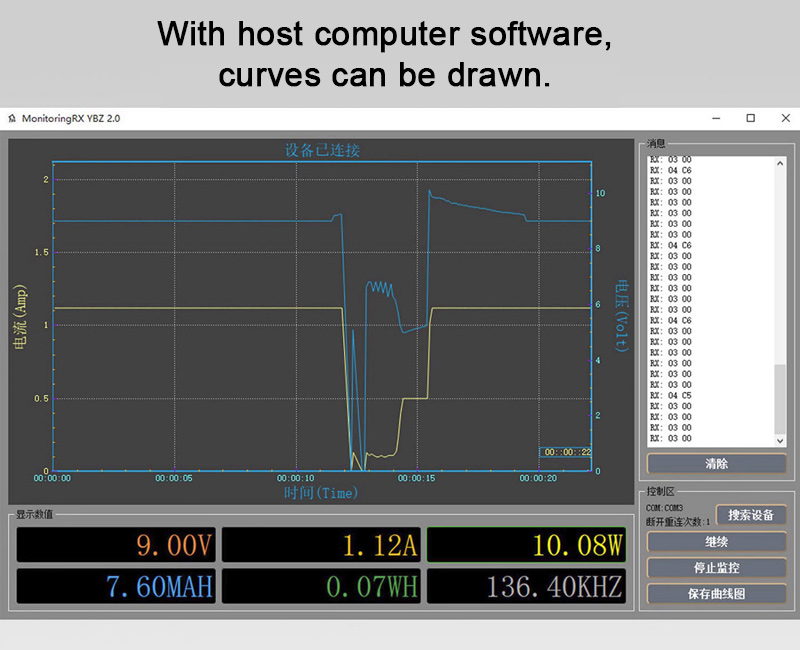

- With host computer software, curves can be drawn

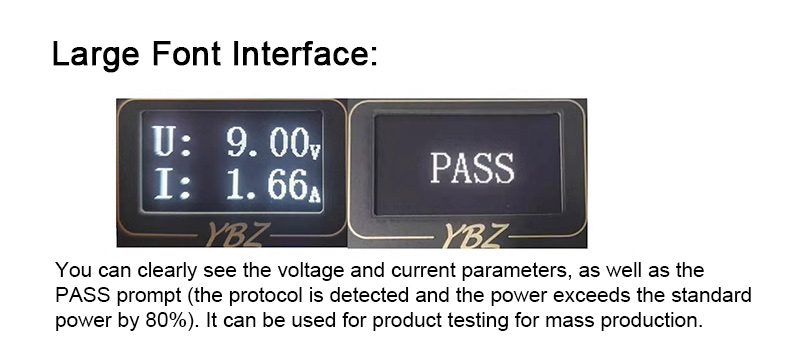

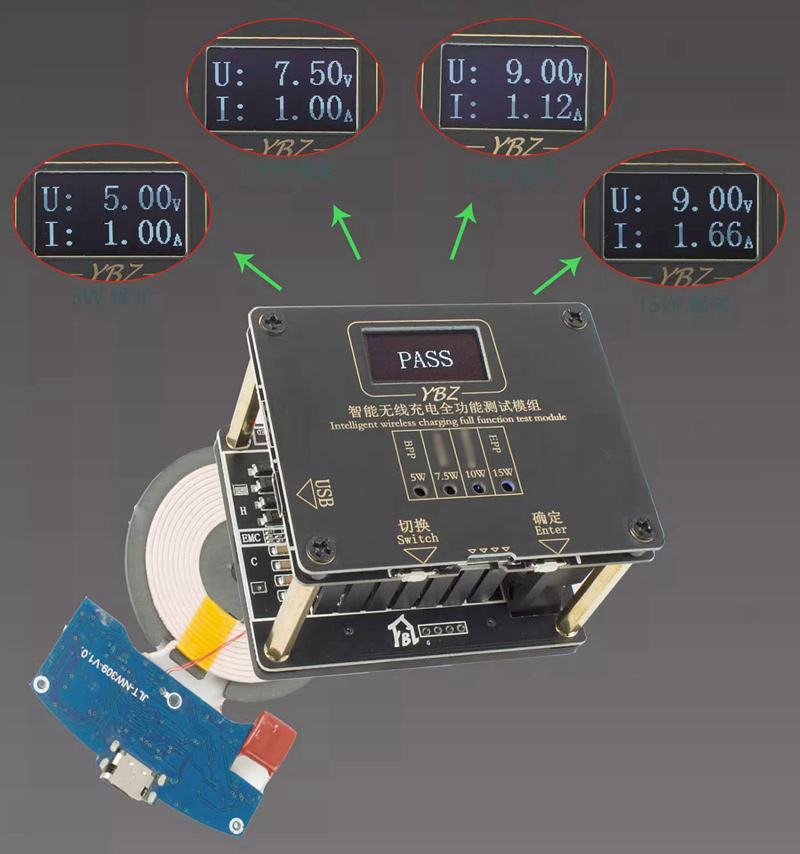

- Large font interface: You can clearly see the voltage and current parameters, as well as the PASS prompt (the protocol is detected and the power exceeds the standard power by 80%). It can be used for product testing for mass production

Specifications:
- Size: 70 x 58 x 45mm/2.8 x 2.3 x 1.8"
- Screen type: 1-inch OLED display
- Language settings: Support Chinese/English switching
- Load device: MOSFET
- Heat dissipation method: heat sink + fan
- BPP 5W protocol: √
- EPP 15W Protocol: √
- For Samsung 10W protocol: √
- For Apple 7.5W protocol: √
- For Apple MagSafe 15W Protocol: √
- Huawei 15W protocol: √
- Huawei 27W protocol: √
- Xiaomi 10W protocol: √
- Xiaomi 30W protocol: √
- Voltage display: √
- Current display: √
- Power display: √
- Aging time measurement: √
- Tx frequency detection: √
- Foreign body detection: √
- Compatibility one-click test: X
- TX full of features: √
- To external load: √
- Magnetic positioning: √
- Light/half/full/overload protection test: √
- EMC, KC certification test: √
- FSK Resolution: √
- EPP 15W output 9V/12V switching: √
- MagSafe pop-up notification: √
- PC software: √

Attention:
- The above test fixtures can support 99% of mainstream wireless charging solutions on the market. The product has been sold for more than 3 years, and the cumulative sales have exceeded 10,000 units!
- The product performance is stable, and it has been highly recognized by the original manufacturers, solution providers, foundries, testing and certification institutions in the industry!

Package Included:
- 1 x Wireless Charger Tester
