5W/7.5W/10W/15W Intelligent Wireless Charging Tester QI Wireless Charger Tester Aging Rack Tool

5W/7.5W/10W/15W Intelligent Wireless Charging Tester QI Wireless Charger Tester Aging Rack Tool

Description:
The operability of the intelligent wireless charging tester has been greatly optimized at the beginning of the design. It embeds the manual into each functional item, such as foreign object detection.

The intelligent wireless charging test module has powerful functions and good stability and enables simple operation. It can be widely used in wireless charger functional testing, compatibility testing, stability testing, and long-term aging. In terms of compatibility, the test fixture has been compatible with fast wireless charging protocol for BPP, Apple, Samsung, EPP, Huawei and LG, and imitates protocol for Samsung S7 and Samsung S9+ in terms of compatibility.

Specifications:
- Compatibility: For BPP (5W), Apple (7.5W), Samsung (10W), Samsung (15W) (pre-compatible), Huawei (15W), LG (15W) and EPP (15W)
- Conversion efficiency: >85% (it is mainly related to TX, and the test fixture has counted and accumulated its own loss into the aging power)
- Working frequency: 100K~240K (frequency compatibility width increased on the basis of QI standard)
- Version number: Smart RX full-featured test module 1.1
- Dimensions: 71 x 57 x 46mm/2.8 x 2.2 x 1.8"
- Operating temperature: 5 to 85°C

Package Included:

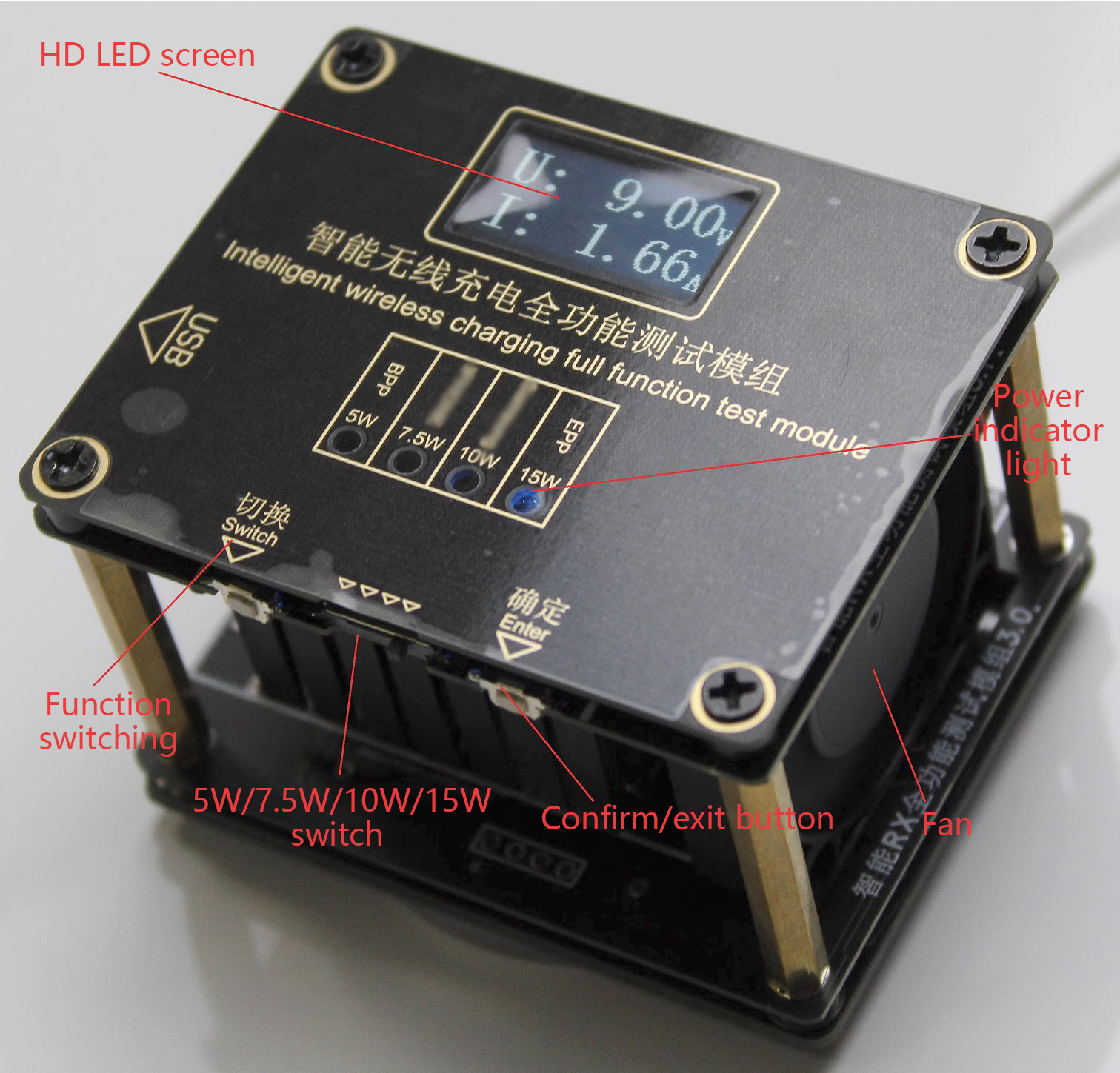

- 1 x Wireless charger tester

Test Items:
1. Compatibility test: For BPP(5W), Apple(7.5W), Samsung(10W), Samsung(15W), Samsung(15W) (pre-compatible), Huawei(15W), LG(15W) and EPP(15W).

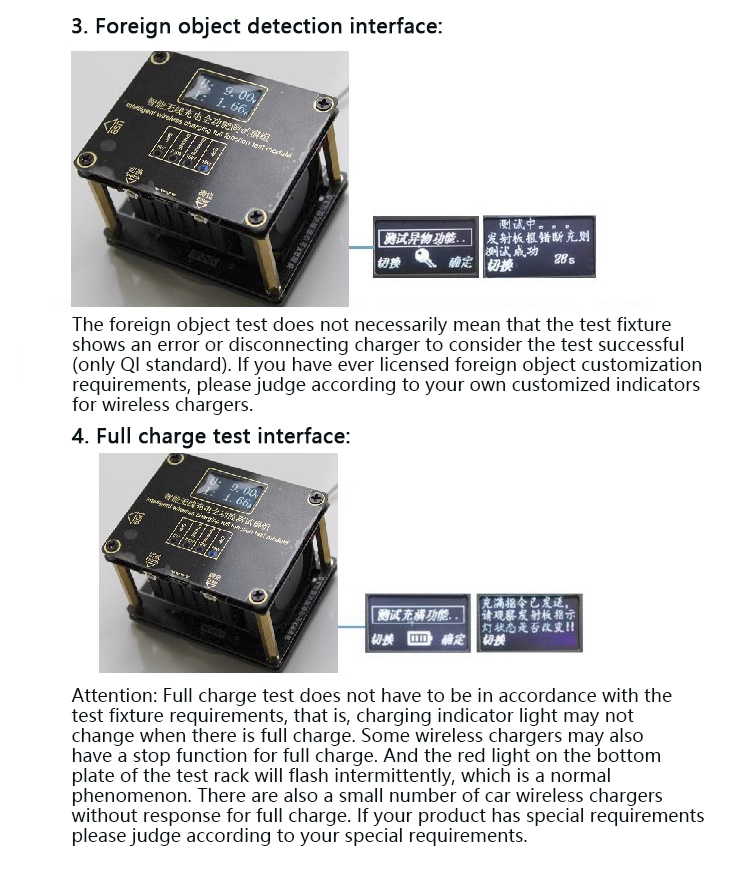

2. QI standard FOD test.
3. Full charge test.
4. Wireless charger frequency monitoring.
5. Aging time monitoring.

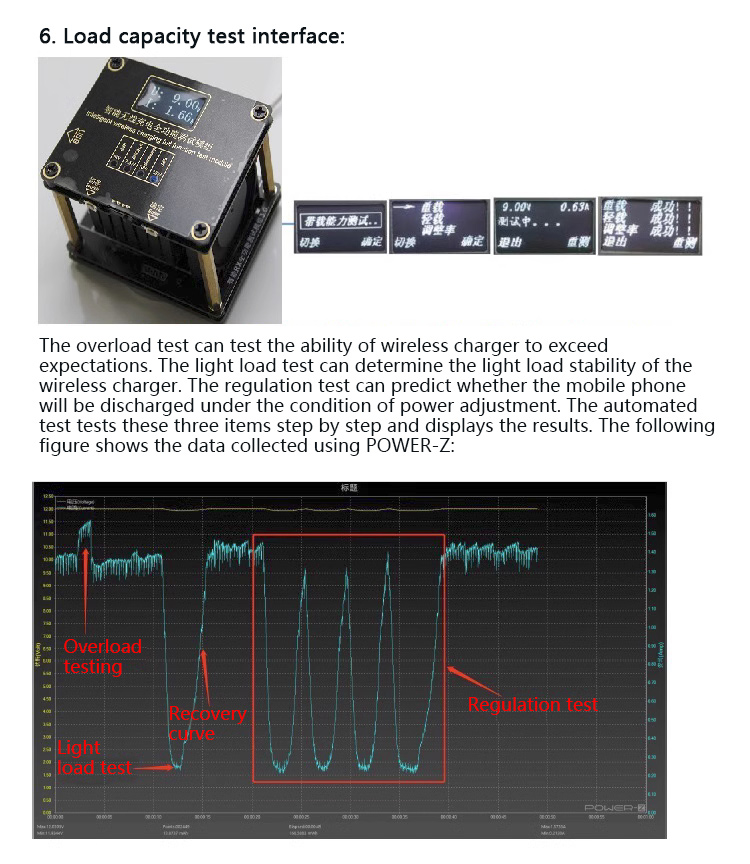

6. Load capacity test (overload, light load and regulation test).

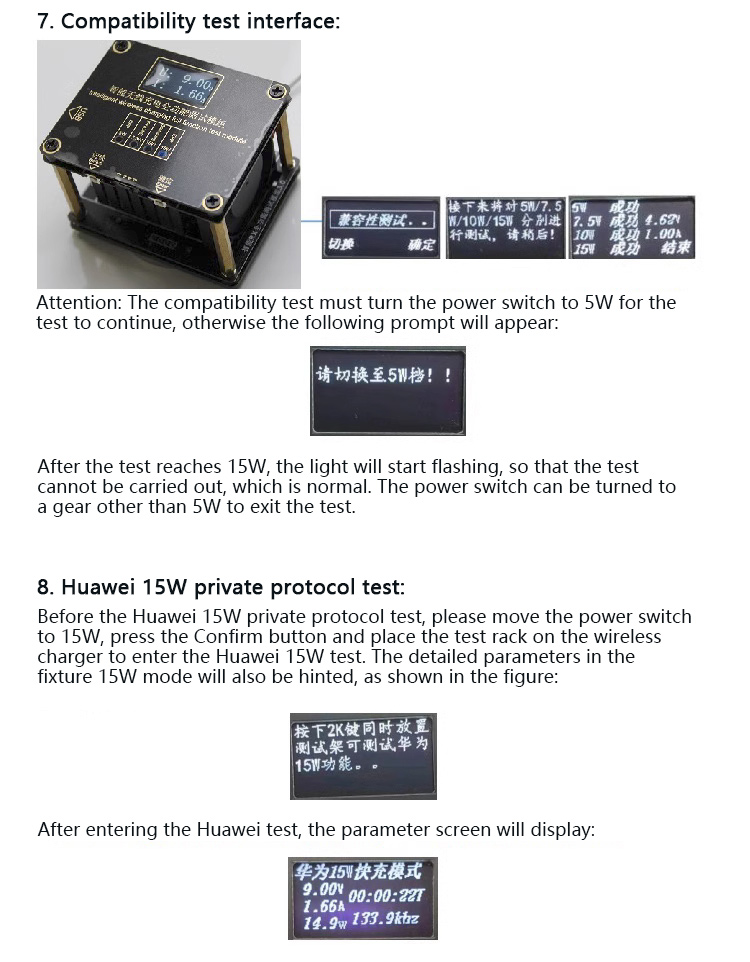

7. Automatic compatibility test.

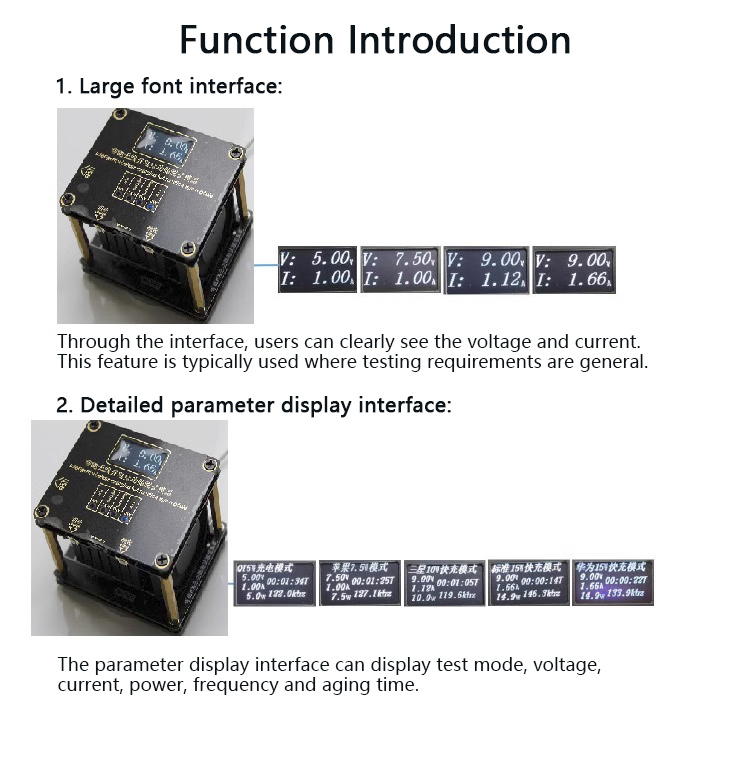

8. Real-time power, voltage and current display.
