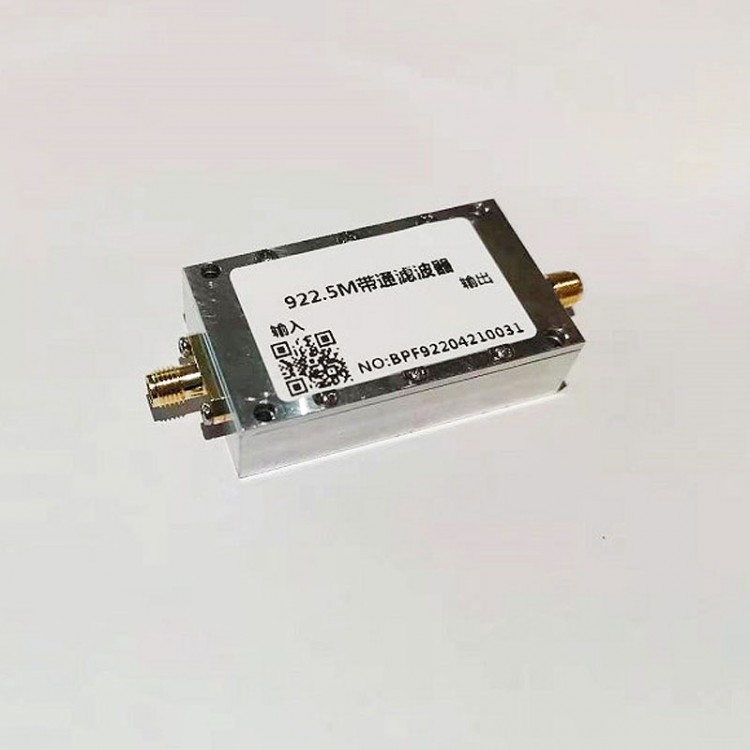

QM-92205-R 922.5M Band Pass Filter RFID Special RF Bandpass Filter SAW Filter Boasts High Rejection
Description:
This filter is suitable for the performance optimization of 922.5MHz RFID receiver. It can effectively filter out-of-band signals, reduce noise, and increase dynamic range. It can be used with our 40dB low-noise amplifier to improve receiving sensitivity. The module adopts CNC shell, with good electromagnetic shielding performance.
Specifications:
- Model: QM-92205-R
- Center frequency: 922.5 MHz
- Pass band (1dB bandwidth): 920.5-924.5 MHz
- Band interpolation loss: ≤3.5 dB
- Maximum carrying power: + 10 dBm
- Interface: SMA-K
- Module size: 53 x 30 x 13mm/2.1 x 1.2 x 0.5" (excluding the size of connectors)
- With mounting holes
Package Included:
- 1 x Band Pass Filter
