Qx-1201 (±20.68kpa) Manometer Gauge Digital Manometer for Positive/Differential/Negative Pressure

Qx-1201 (±20.68kpa) Manometer Gauge Digital Manometer for Positive/Differential/Negative Pressure

Description:

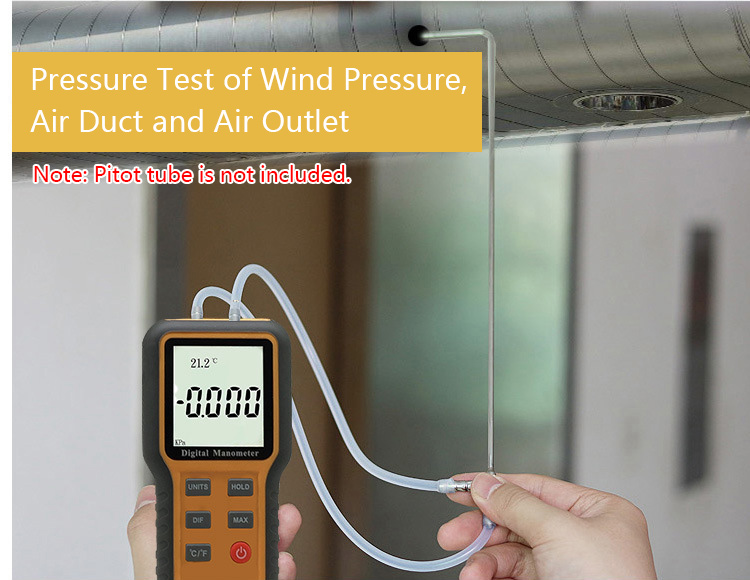

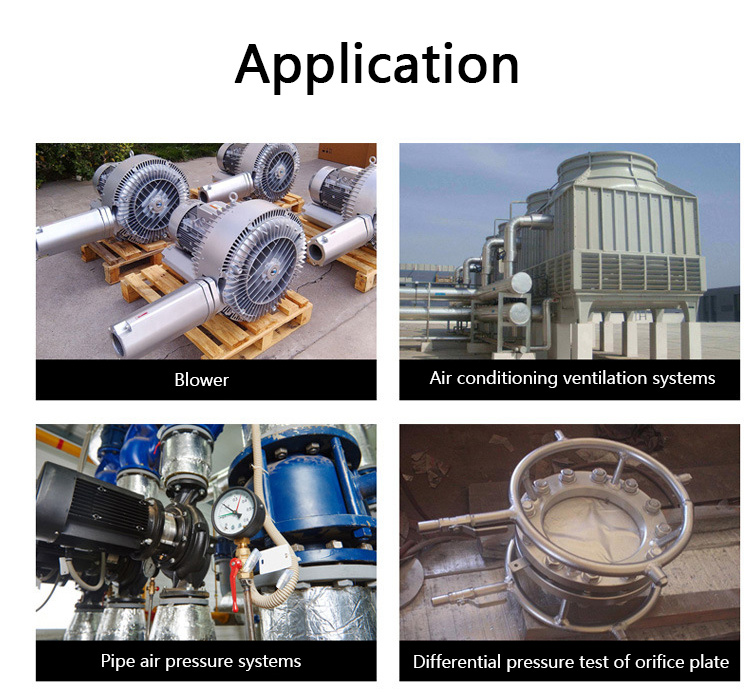

This instrument can measure the air pressure of the single pipe, or differential pressure of two pipes. It is suitable for measuring of ventilation and air condition systems. It is widely used for gas measurement, calibration, and any trouble shooting of any gas pressure systems.

Features:
- Optional pressure range: ±20.68kpa, ±52.21kpa and ±89.6kpa

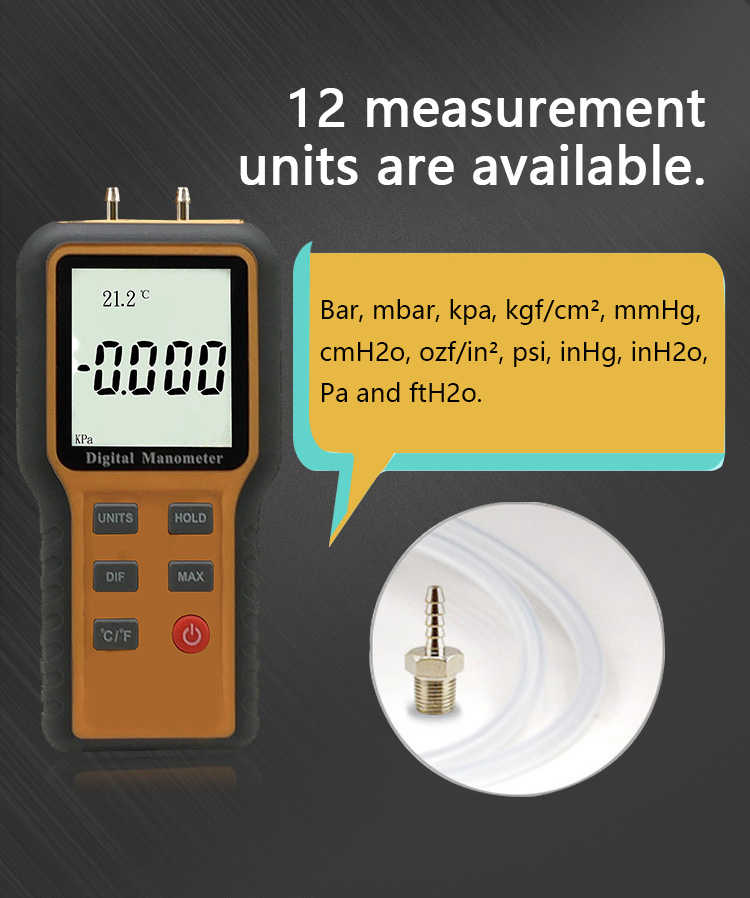

- 12 measurement units are available: bar, mbar, kpa, kgf/cm², mmHg, cmH2o, ozf/in², psi, inHg, inH2o, Pa and ftH2o
- Good quality: durable to use and without rust
- High-end material and fine workmanship
- Data hold function
- Pressure value can be displayed
- With a backlit LCD display
- Instrument zeroing function
- With difference mode and recording mode
- Low electric quantity prompt and automatic shutdown
- Backlight setting: After it is powered on, press the switch button to turn on the backlight, and then press the button again to turn off the backlight

Technical Performance:

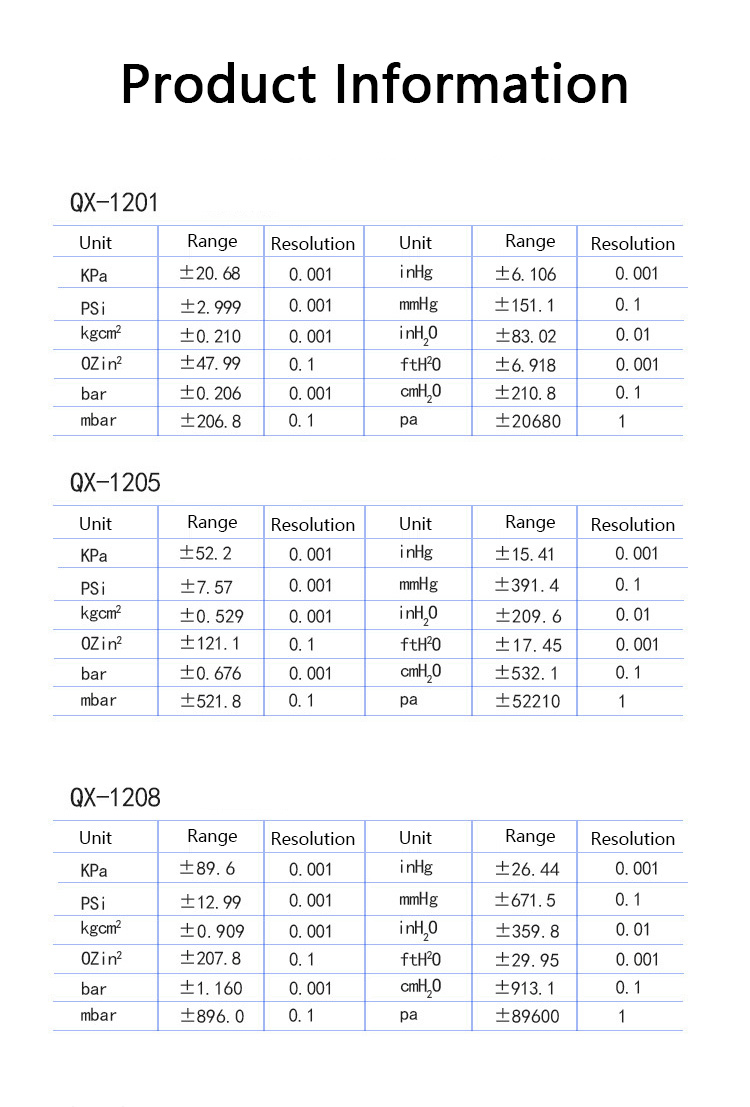

- Optional pressure range: ±20.68kpa, ±52.21kpa and ±89.6kpa
- Optional ranges: ± 2.999PSi/±7.57PSi/±12.99PSi
- Data storage: 100
- Accuracy: ±0.3% FSO (25°C)
- Measurement rate: 0.5 seconds
- Room temperature measurement: °C/°F switching
- Low electric quantity prompt: when it is ≤ 6.8, the prompt will be displayed
- Repeatability: ±0.2% (max. ±0.5% FSO)
- Automatic shutdown: about 15 minutes after no operation
- When the positive pressure range is exceeded, it will display Err0
- When the negative pressure range is exceeded, it will display Err1
- Operating temperature: 0~50°C (32~122°F)
- Storage temperature: -10 to 60°C (14~140°F)

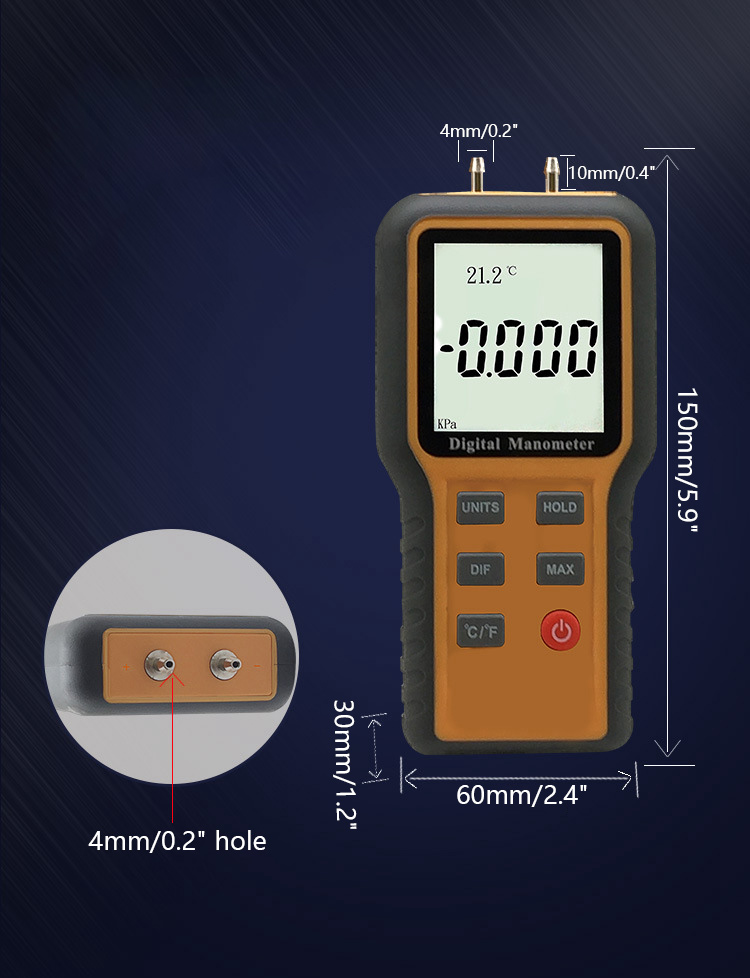

- Dimensions: 164 x 70 x 32mm/6.5 x 2.8 x 1.3"
- Weight: 200g/0.4lb

Package Included:
- 2 x Hoses
- 1 x Carry Bag
- 1 x Pressure connector
- 1 x Main unit
- 1 x English user manual
- 1 x Chinese user manual

Note:
- Battery is not included. A 9V battery is recommended.
- Pitot tube and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
