Radiolink Drone Flight Controller (for PIXHAWK) PIX 2.4.8 for RC Quadcopter and 6-8 Axis Multirotor

Radiolink Drone Flight Controller (for PIXHAWK) PIX 2.4.8 for RC Quadcopter and 6-8 Axis Multirotor

Flight Controller for PIXHAWK:

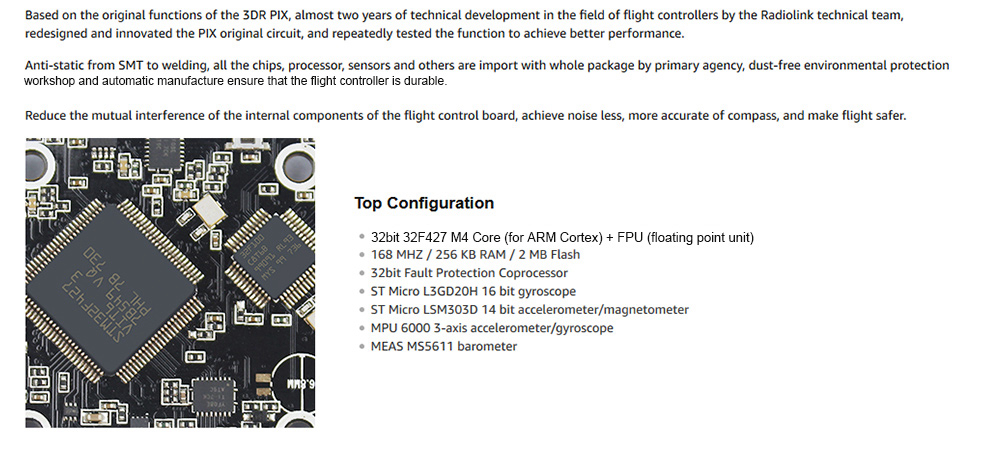

Based on the original functions of the 3DR PIX, almost two years of technical development in the field of flight controllers by the Radiolink technical team, redesigned and innovated the PIX original circuit, and repeatedly tested the function to achieve better performance.

Anti-static from SMT to welding, all the chips, processor, sensors and others are import with whole package by primary agency, dust-free environmental protection workshop and automatic manufacture ensure that the flight controller is durable.

Reduce the mutual interference of the internal components of the flight control board, achieve noise less, more accurate of compass, and make flight safer.

User Instruction Reference:
Link for http://ardupilot.org/planner/docs/mission-planner-overview.html

Flight Controller Features:
- High-end Configuration: Advanced 32F427 M4 Core high-performance processor for ARM Cortex, 32bit fail-safe co-processor, and MPU 6000 3-axis accelerometer.
- Excellent Performance: New layout and technical upgrade base on 3DR PIX. A powerful hardware device can create, you can implement more functions as you want by simple programming.
- Stabilization: Producing by automatic and unique automation software testing, it achieved interference less from inner components, built-in barometer sensor to make altitude hold stabilization.
- Easier Setting: No complicated setup for beginner and professor player, easy to operation calibration settings on Mission Planner, you will have a good experience of using Radiolink flight controller.

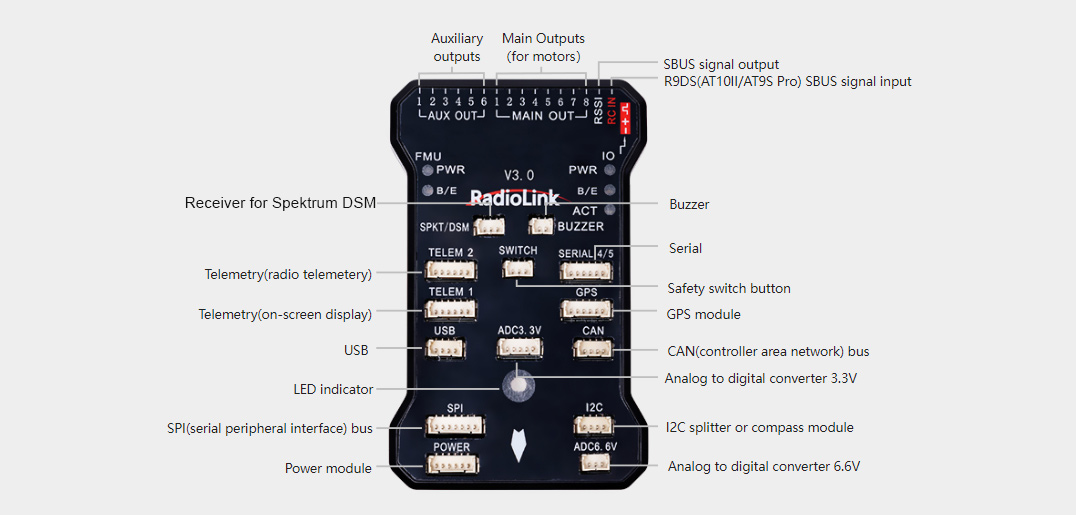

- Multiple Function: Support OSD and GPS module and more, and suitable for Long-wheelbase Quadcopter/6-8 Axis Multirotor.

Flight Controller Description:

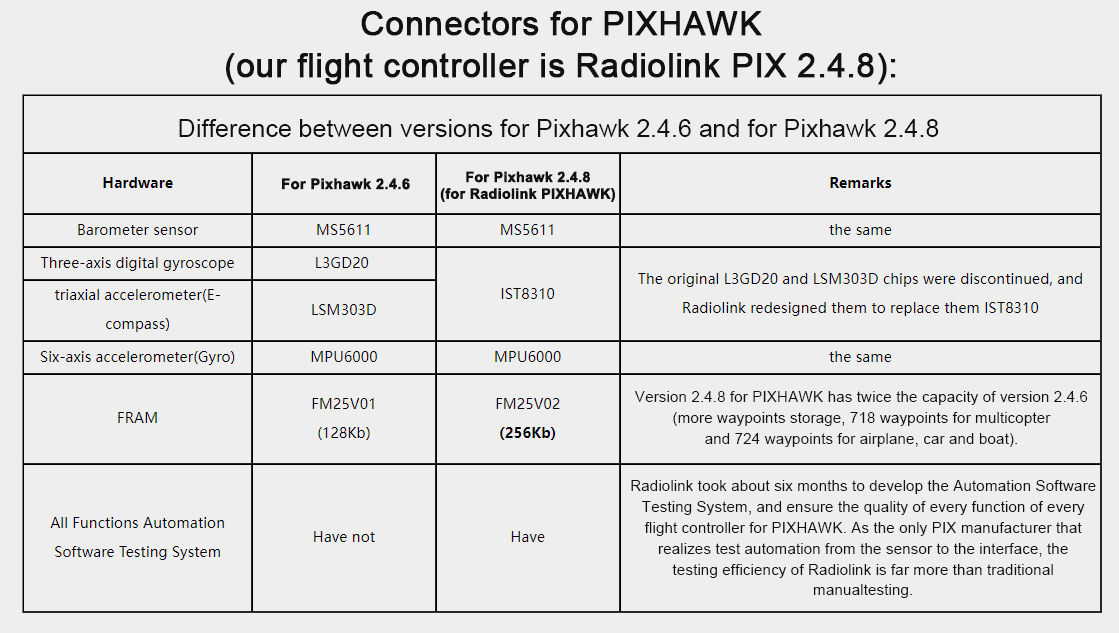

Top Configuration
* 32 bit 32F427 M4 Core (for ARM Cortex) + FPU (floating point unit)
* 168 MHZ / 256 KB RAM / 2 MB Flash
* 32bit Fault Protection Coprocessor
* Micro L3GD20H 16 bit gyroscope
* Micro LSM303D 14 bit accelerometer/magnetometer
* MPU 6000 3-axis accelerometer/gyroscope
* MS5611 barometer for MEAS

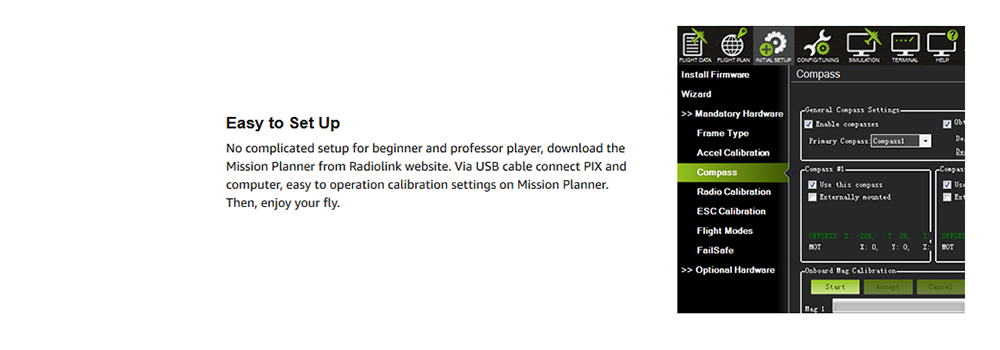

Easy to Set Up
No complicated setup for beginner and professor player, download the Mission Planner from Radiolink website. Via USB cable connect PIX and computer, easy to operation calibration settings on Mission Planner. Then, enjoy your fly.

A Good Choice for DIY Drone
Complete installation tutorial, easy to set up, eliminating the cumbersome and complicated installation and calibration process, making your DIY racing drone easier. The Mission Planner can be downloaded from the official website of the Radiolink brand for debugging.

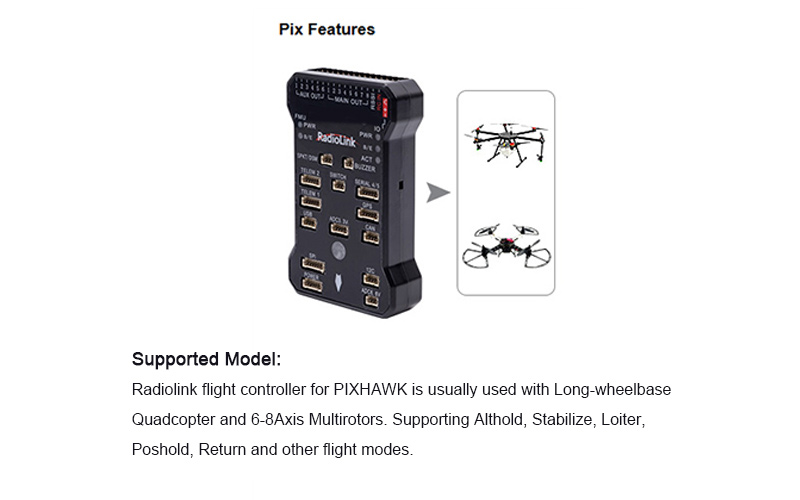

Radiolink flight controller for PIXHAWK supports a variety of fixed-wing and helicopters, vehicle models and boat models. Supporting Althold, Stabilize, Loiter, Poshold, Return and other flight modes.

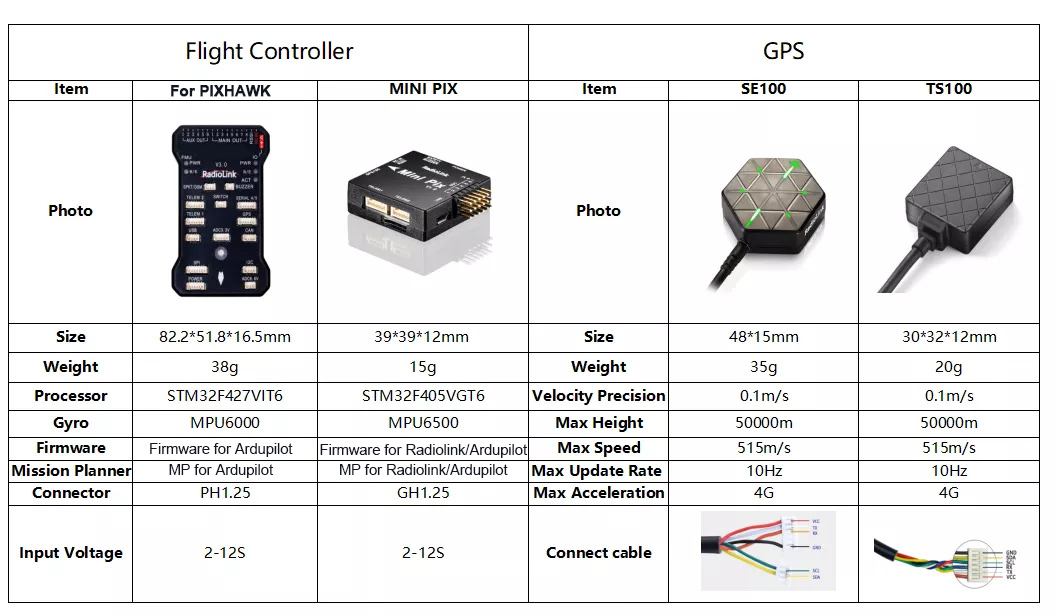

Flight Controller Specifications:

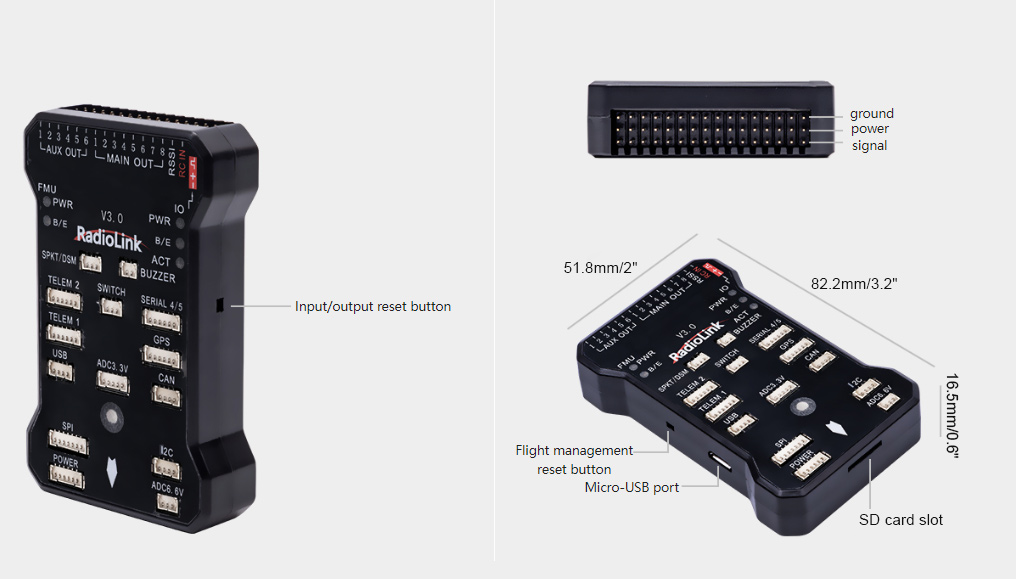

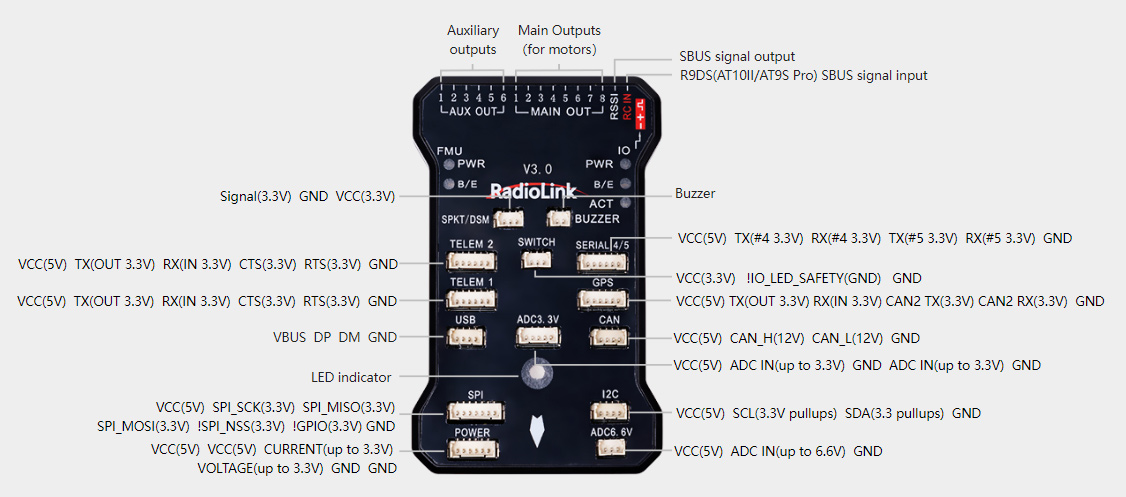

- Connector Port: JST GH connector
- Receiver In: PPM/SBUS
- Transmitter: 6 oneshot/PWM
- USB Voltage: 5v+/-0.3v
- Work Voltage: 5.1v
- Work Temperature Rang: -40 to 80℃
- Support Models: Long-wheelbase Quadcopter/6-8 Axis Multirotor

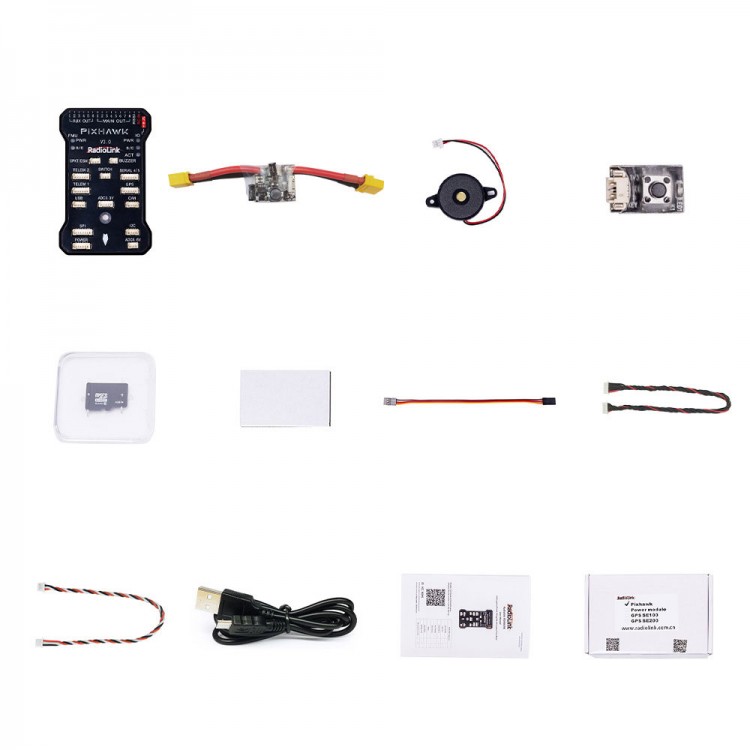

Package Included:
- Flight Controller for PIXHAWK x 1
- Power Module (2s-12s) x 1
- Buzzer x 1
- Safety Switch x 1
- TF Card (4G) x 1
- Double-Sided Adhesive Tape x 2
- Receiver Connection Cable x 1
- Power Module Connection Cable x 1
- Safety Switch Connection Cable x 1
- USB Cable x 1
- User Manual x 1

Note:
- Battery is not included.
