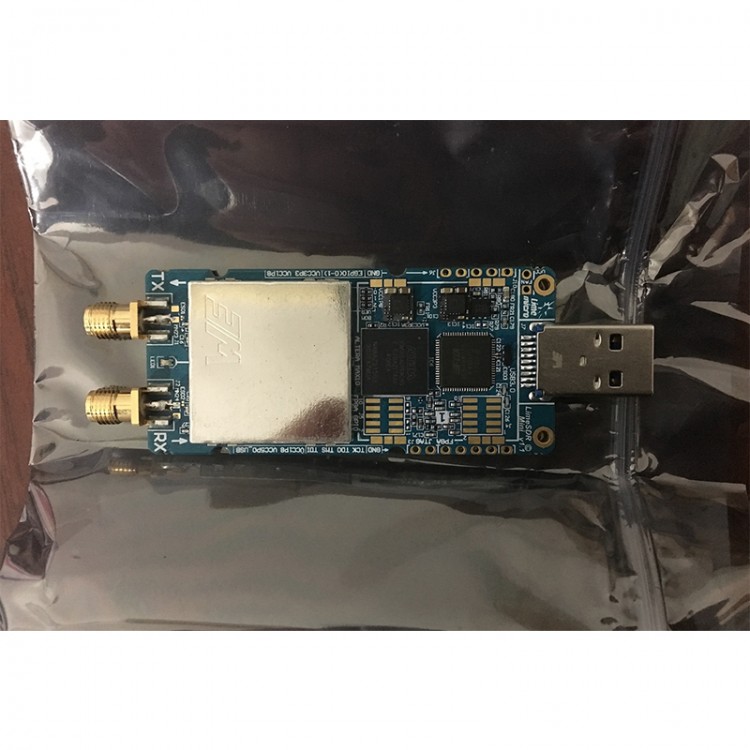

RF Transceiver for Lime SDR Mini LMS8001
Features & Specifications:
- RF transceiver: Lime Microsystems LMS7002M
- FPGA: Altera MAX 10 (10M16SAU169C8G)
169-pin FBGA package
16 K Les
549 KB M9K memory
2,368 KB user flash memory
4 x fractional phase locked loops (PLLs)
45 x 18x18-bit multipliers
130 x general purpose input/output (GPIO)
Single supply voltage
Flash feature
FPGA configuration via JTAG
- EEPROM memory: 2 x 128 KB for RF transciever MCU firmware and data
- Flash memory: 1 x 4 MB flash memory for data
- General user inputs/outputs:
2 x dual color (red + green) LED
8 x FPGA GPIO pinheader (3.3 V)
- Connectivity:
USB 3.0 Type-A (FTDI FT601 controller)
2 x coaxial RF (SMA) connectors (each can be switched between high and low frequency bands)
U.FL connector for external clock source
FPGA GPIO headers
FPGA JTAG connector
- Clock system:
30.72 MHz onboard VCTCXO
Possibility to tune VCTCXO with onboard DAC
External clock input via U.FL connector
- Board dimensions: 69 mm x 31.4 mm
Package includes:
1 x Mini RF Transceiver
