RF Transceiver for Lime SDR Mini LMS8001 Spots New

Features & Specfications
- RF transceiver: Lime Microsystems LMS7002M
- FPGA: Altera MAX 10 (10M16SAU169C8G)
  169-pin FBGA package
  16 K Les
  549 KB M9K memory
  2,368 KB user flash memory
  4 x fractional phase locked loops (PLLs)
  45 x 18x18-bit multipliers
  130 x general purpose input/output (GPIO)
  Single supply voltage
  Flash feature
  FPGA configuration via JTAG
- EEPROM memory: 2 x 128 KB for RF transciever MCU firmware and data
- Flash memory: 1 x 4 MB flash memory for data
- General user inputs/outputs:
  2 x dual color (red + green) LED
  8 x FPGA GPIO pinheader (3.3 V)
- Connectivity:
  USB 3.0 Type-A (FTDI FT601 controller)
  2 x coaxial RF (SMA) connectors (each can be switched between high and low frequency bands)
  U.FL connector for external clock source
  FPGA GPIO headers
  FPGA JTAG connector
- Clock system:
  30.72 MHz onboard VCTCXO
  Possibility to tune VCTCXO with onboard DAC
  External clock input via U.FL connector
- Board dimensions: 69 mm x 31.4 mm

Package includes:

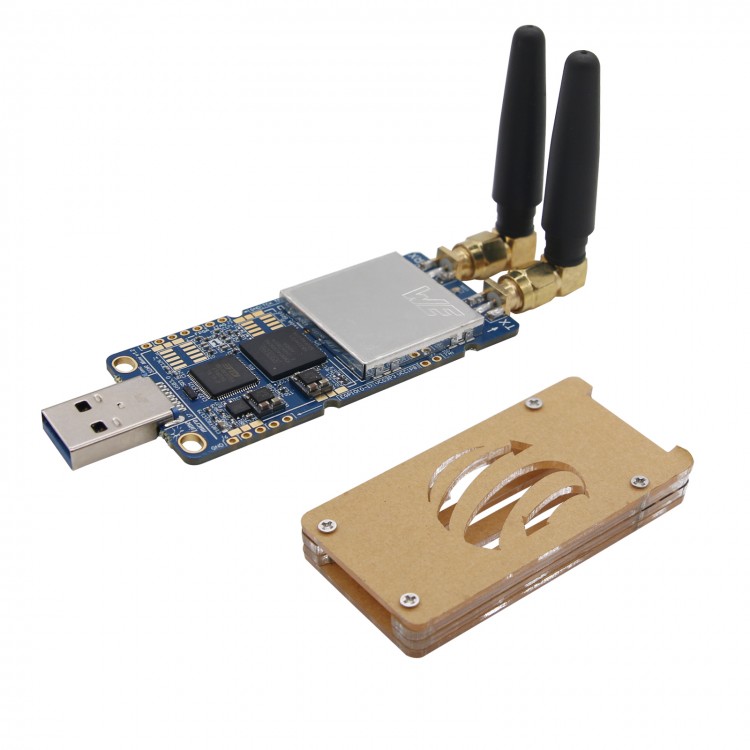

1 x Mini Transceiver & Acrylic Shell & Antenna
