RF Wideband Amplifier LNA 0.1M-2G Gain 60DB Two-Stage Amplification Professinal Audio AMP Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.87
  • Price in reward points: 189 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.49 $18.12 $17.55 $16.79 Contact US
Quantity:

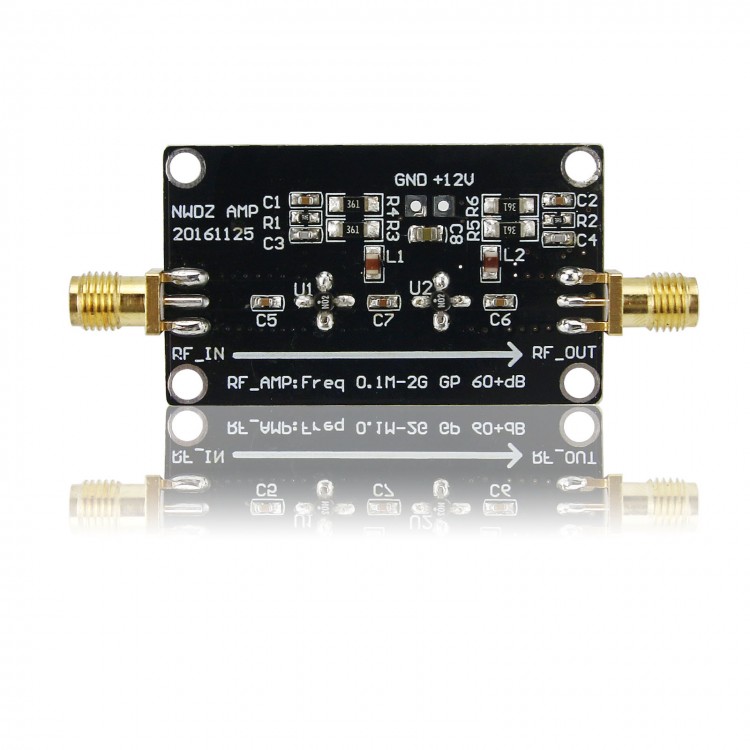

RF Wideband Amplifier LNA 0.1M-2G Gain 60DB Two-Stage Amplification Professinal Audio AMP Module


Description:

- The RF Amplifier has the advantages of wide frequency range, high gain, low noise figure, etc.
- Using two cascaded, it is suitable for weak signal detection LNA low noise.
- With the characteristic of excellent performance, uniformity and reliability.
- Higher gain flatness when working within 500M, and low power consumption
- The gain can be adjusted with the power supply voltage

Specification:

- Low noise factor NF=2.0, can be used as RF preamplifier
- Working frequency: 0.1M-2G
- Power gain: 60dB 500M
- Noise figure NF: 2dB 300M
- Maximum output power: +10 dBm (10mW) 1dB compression point
- Working current: 70mA (12V)
- Supply voltage: 12V recommended, (9-15V)
- System Impedance: 50 ohms
- Size: 7.5 x 3cm / 2.95 x 1.18in
- colour:black
- Material:metal+pc

Package Contents:

1 * RF Wideband Amplifier

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
