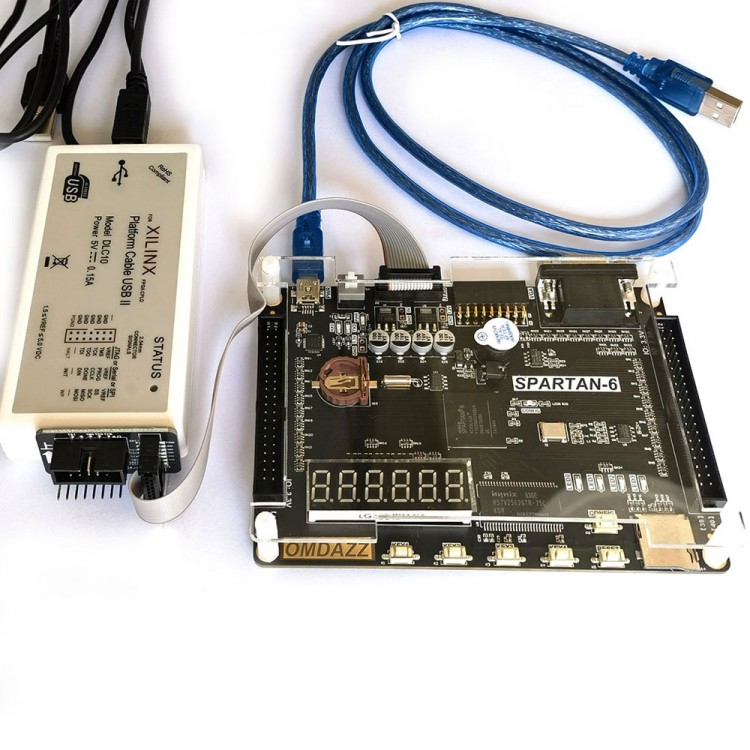

XC6SLX16 FPGA Development Board 50M Crystal Oscillator 256Mbit SDRAM+16Mbit FLASH for Xilinx

Availability: In stock, usually dispatched in 1 business day

  • Price:$89.04
  • Price in reward points: 890 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $87.26 $85.48 $82.81 $79.25 Contact US
Quantity:
Buy it now Add cart

You might like

FPGA Development Board Boasts Main Chip Spartan-6 XC6SLX16-2FTG256C 256Mbit SDRAM & 16Mbit Flash

FPGA Development Board Boasts Main Chip Spartan-6 XC6SLX16-2FTG256C 256Mbit SDRAM & 16Mbit Flash

$58.30

(0)
FPGA Development Board with Main Chip Spartan-6 XC6SLX9-2FTG256C 256Mbit SDRAM and 16Mbit Flash

FPGA Development Board with Main Chip Spartan-6 XC6SLX9-2FTG256C 256Mbit SDRAM and 16Mbit Flash

$58.30

(0)
ALINX AX309 Xilinx FPGA Development Spartan6 XC6SLX9 Spartan-6 advanced Kit

ALINX AX309 Xilinx FPGA Development Spartan6 XC6SLX9 Spartan-6 advanced Kit

$216.60

(0)
Xilinx Siga-S16 FPGA Development Board Spartan6 DDR2 with Downloader 5V/2A power supply

Xilinx Siga-S16 FPGA Development Board Spartan6 DDR2 with Downloader 5V/2A power supply

$164.99

(0)
ALTERA FPGA CYCLONE IV Core Module Development Board 256Mbit SDRAM EP4CE15

ALTERA FPGA CYCLONE IV Core Module Development Board 256Mbit SDRAM EP4CE15

$84.86

(0)
XILINX FPGA SPARTAN6 LX16 DDR3 Development Board 1G DDR3 128M FLASH Gigabit Ethernet for Arduino

XILINX FPGA SPARTAN6 LX16 DDR3 Development Board 1G DDR3 128M FLASH Gigabit Ethernet for Arduino

$223.16

(0)
Unwelded New SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader for Xilinx

Unwelded New SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader for Xilinx

$102.43

(0)
Altera CYCLONE IV Core Board Development Board EP4CE15 FPGA Stamp Module

Altera CYCLONE IV Core Board Development Board EP4CE15 FPGA Stamp Module

$98.36

(0)

XC6SLX16 FPGA Development Board 50M Crystal Oscillator 256Mbit SDRAM+16Mbit FLASH for Xilinx

Specification:
- Voltage: 5V, USB interface power supply
- Product size: 90 x 130mm
- Crystal oscillator: 50M
- PCB layer: 4 layers
- Extended IO number: 68
- SDRAM capacity: 256Mbit
- FLASH capacity: 16Mbit
- VGA color: 65536
- IO port level: 3.3V

Peripheral Interface:
- USB interface power supply, it also is a USB to serial port.
- A large-capacity 256Mbit SDRAM, can be used as data buffer.
- A 16Mbit SPI FLASH, can be used as FPGA configuration files and user data storage.
- A camera interface, you can connect 5 million pixel camera such as OV5640.
- A 16bit VGA interface, supports 65536 colors, you can display color images and other information.
- An RTC real-time clock, with battery holder (battery is not included).
- An IIC interface EEPROM 24LC04.
- Four LEDs.
- Four user keys.
- A Reset key, reset program for FPGA.
- A CONFIG key, connects to the dedicated FPGA_PROGRAM_B pin, for reconfiguration of the FPGA program.
- On-board 50M active crystal, provides a stable clock source for the development board.
- Two 40-pin standard AX expansion port (2.54mm pitch), 34 IO ports, one 5V power supply, two 3.3V power supply, three GND.
- A JTAG interface, FPGA debugging and program curing.
- A Micro SD card connector, support SPI mode.
- A 6bit digital tube.

Package Included:
- 1 x Development Board
- 1 x USB Charging Cable
- 1 x USB Programmer Cable
