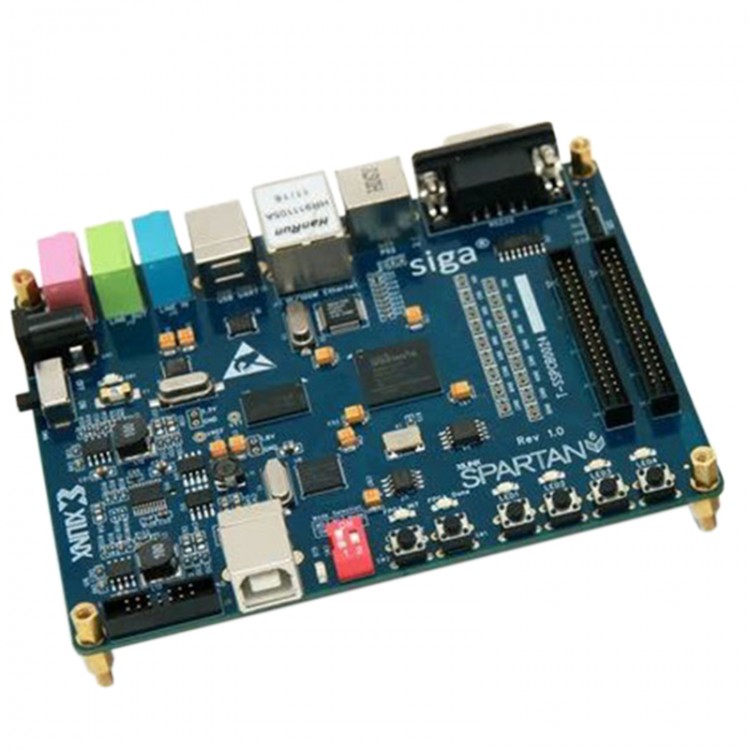

Xilinx Siga-S16 FPGA Development Board Spartan6 DDR2 with Downloader 5V/2A power supply

Xilinx Siga-S16 FPGA Development Board Spartan6 DDR2 with Downloader 5V/2A power supply

Features:
- Fast Ethernet interface
- 1GB DDR2 SDRAM
- USB2.0 interface
- Multi function audio interface
- Tantalum capacitor

Specification:
FPGA: XC6SLX16-2CSG324 Spartan-6 series @Xilinx

FPGA configuration:
8MB SPI Flash@Numonyx
14pin double row spacing 2.0mm JTAG interface

Memory:
128MB DDR2 SDRAM@Micron
8MB SPI Flash@Numonyx

Interface resource:
10/100M Ethernet RJ-45 interface, use chip RTL8201@Realtek
USB2.0 high speed communication, CY68013A@ Cypress
Audio interface, support microphone input, audio input and stereo audio output, WM8731@Wolfson
USB to UART communications, CP2102@Silicon Labs
RS232 DB9 interface (female)
PS/2 keyboard and mouse interface
A standard SD card

Extended interface:
2channel 40pin 2.0mm IDC GPIO interface
One way FPC 60pin (with two IDC40 multiplexing)
External I2C user interface (Header 1x4)

Clock:
50MHz oscillator onboard

Control and display:
4 keys
2 way dial switch
4 LED

Power Supply:
5V/2A power adapter
DDR2 power solution @TI
FPGA power solution @MPS

Package included:
- 1 x Downloader
- 1 x Siga-S16 Development Board
- 1 x 5V/2A power supply
- 2 x CD
- 1 x usb cable
- 1 set Pillar screw
