Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $83.36 | $81.66 | $79.11 | $75.70 | Contact US |

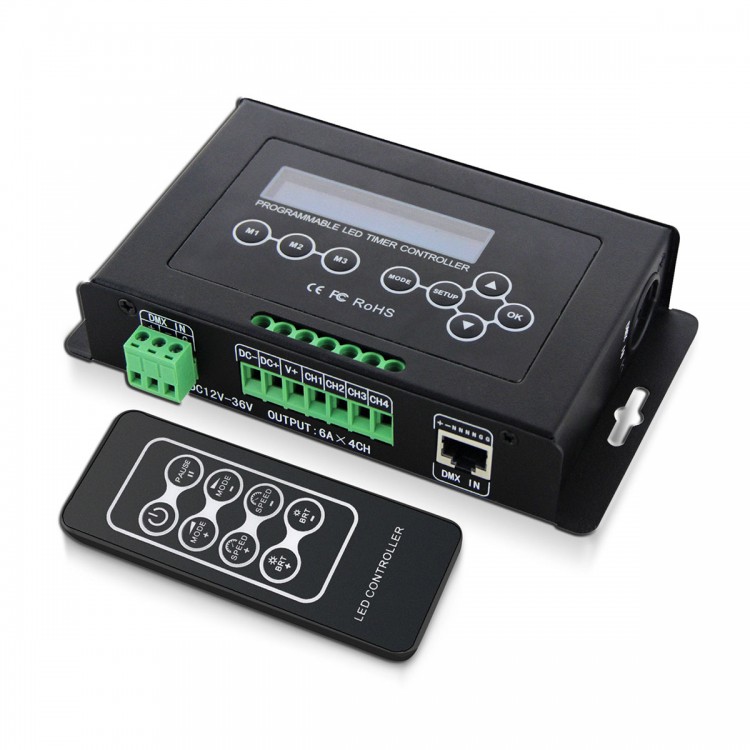

RGB RGBW Timer Controller DMX512 DC12V to DC36V LED Programmable Light Control BC-300
Manual: Click here
Description:
Welcome to use our RGB/RGBW timer controller, it is a constant voltage overall color change controller, can be configured as RGB/RGBW controller. With LCD display, easy to operate. Built-in real time clock system and a strong DIY & combination function can meet your various control requirements.
Specifications:
- Working Voltage : DC12-36V
- DMX interface : 6A x 4CH
- Dimensions : DMX512
- Output Current : XLR-3, RJ45, Terminal block
- Input Signal : -20 deg C-55 deg C

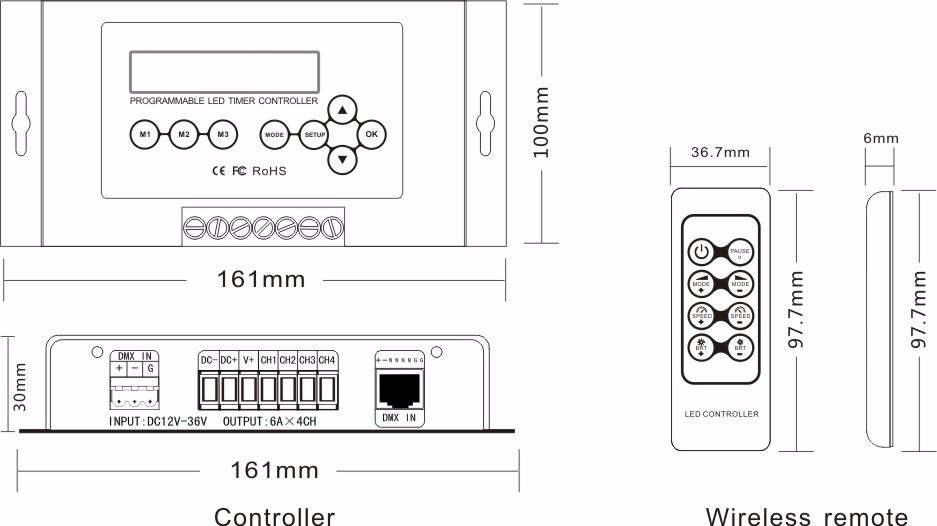

- Working Temp : 161mmx100mmx30mm
- Weight(N.W) : 480g
Features:
- With LCD screen, easy to operate.
- 4096 grey scales, lamplight soft and stable, without flickers.
- 40 built-in Modes, 4 DIY programming Modes, 4 combined modes and 1 decoder mode,it can combine hundreds of control patterns.
- Multilevel of speed and brightness adjustable.
- Built-in real time clock system, your program can be set to play at anytime.
- Configured as RGB controller or RGBW controller, convenient for stocking
Safety warning:
- In order to use it properly and safety, please read user's manual carefully before installation.
- Please don't install this controller in lightening, intense magnetic and high-voltage fields.
- To reduce the risk of component damage and fire caused by short circuit, make sure correct connection
- Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
- Don't connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on.
- Please don't open controller cover and operate if problems occur.
- The manual is only suitable for this model; any update is subject to change without prior notice.
Package list:
- 1 x Timer Controller
- 1 x Remote controller
