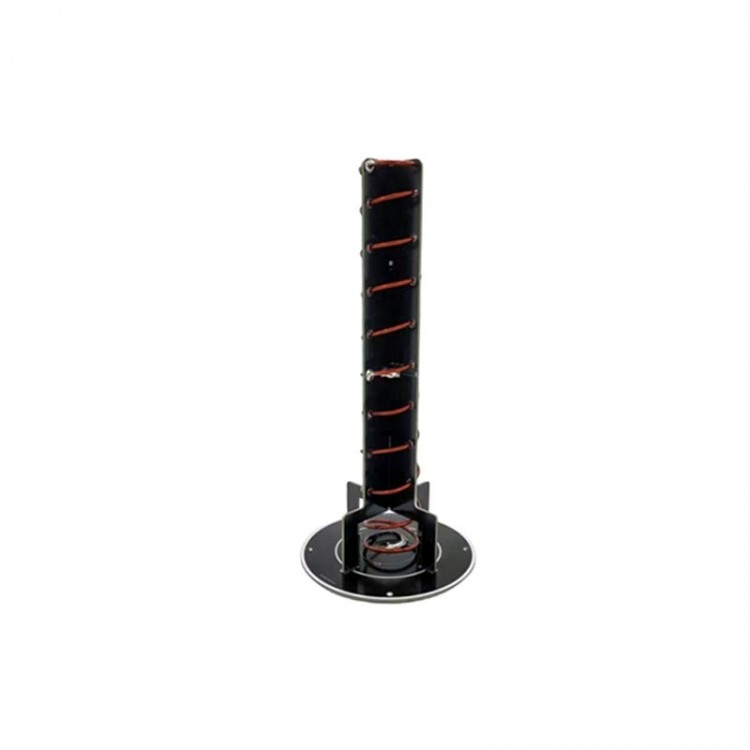

Right-handed Polarization 2.4GHz 15dBi Directional High Gain Spiral Antenna Image Transmission Remote Control Range Extender
Specification:
- Working frequency: 2390 - 2500MHz
- Antenna type: circular polarized directional antenna
- Characteristic impedance: 50ohms
- Gain: 15.2dBi
- VSWR: < 1.5
- Withstand maximum power: 80W
- Radiation angle: 53° (at -3dB)
- Axial ratio: <1dB
- Connector type: SMA female connector
- Material: FR4 board & copper enamel wire
- Product size: 10cm (diameter) x 20cm (height)
- Net weight: 110g
Package Included:
- 1 x Antenna
