| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $18.57 | $18.19 | $17.62 | $16.87 | Contact US |
BPF-10.7M Bandpass Filter 10.7M+/-0.5M 50ohms High Quality RF Accessory with SMA Female Connector
$21.59
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

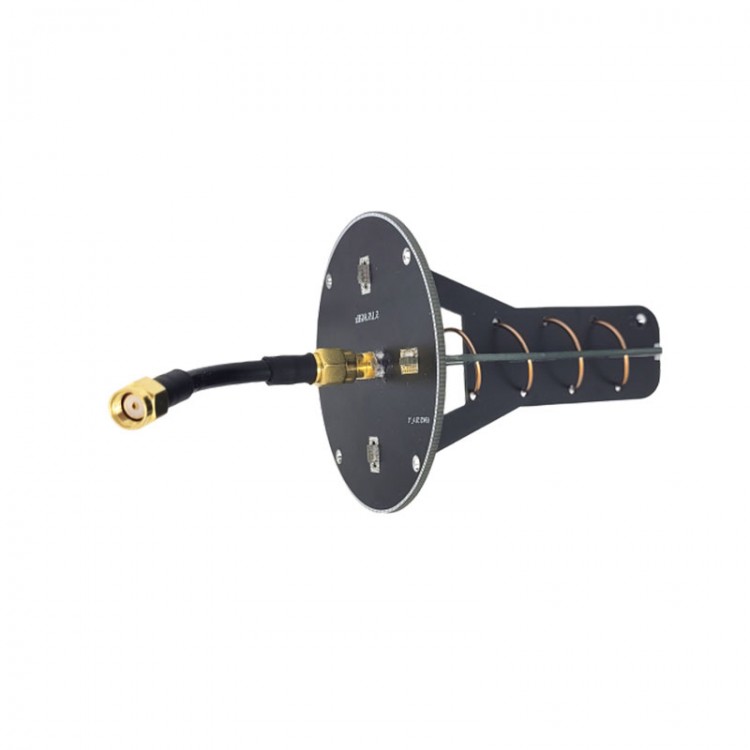

Sinistral 5.8GHz Directional Antenna 13.8dBi High Gain Left-handed Polarization Spiral Antenna with RP-SMA-J Connector
Specification:
- Frequency bandwidth: 5GHz - 6GHz
- Polarization: circular polarization antenna
- Impedance: 50ohm
- Gain: 13.8dBi
- Radiation angle: 42 degree
- SWR: (5.5GHz - 6GHz) < 1.2
- Maximum withstand power: 50W
- Connector: RP-SMA-J connector
Precaution:
- This antenna is suitable for long-distance communication due to its high gain and narrow radiation angle in the directional pattern. If close range communication requires alignment between the transmitting and receiving antennas, deviation from the radiation range will not achieve communication effectiveness. Suitable for remote control of long-distance crossing machine image transmission.
Package Included:
- 1 x Directional Antenna
