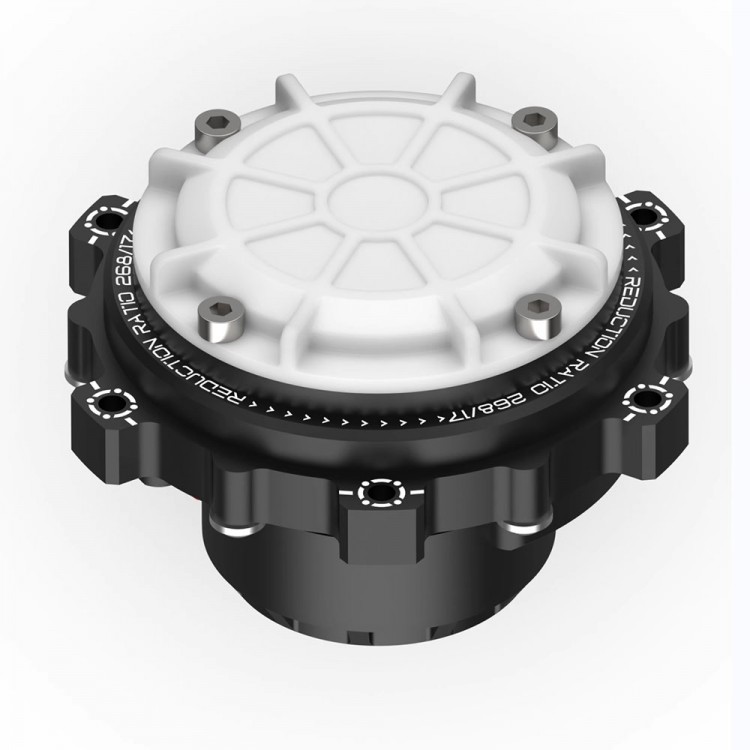

RoboMaster Lightweight NW-type Planetary Reduction Gearbox for Robot Driving Wheel with KA020XPO Non Rubber Seal Bearing
Description:
- This product is a NW type planetary gearbox designed specifically for lightweight competition robots, with a reduction ratio of 268/17. After being combined with the rotor of the M3508 motor, this product provides a more compact size, a more reasonable reduction ratio, a simpler installation method, and a lighter weight compared to the original M3508 motor. It is suitable for use in the drive wheel part of robots and is the best choice for lightweight design.
Specification:
- Max speed: 587rpm
- No-load current: 0.63A
- Rated speed: 571rpm
- Rated torque: 2.46N.m
- Rated voltage: 24V
- Rated current: 10A
- Max efficiency: 70%
- Max torque: 3.69N.m
- Max current: 2.5A
- Net weight: 336.4g
Package Included:
- 1 x Reduction Gearbox
Note:
- The M3058 rotor is not included.
