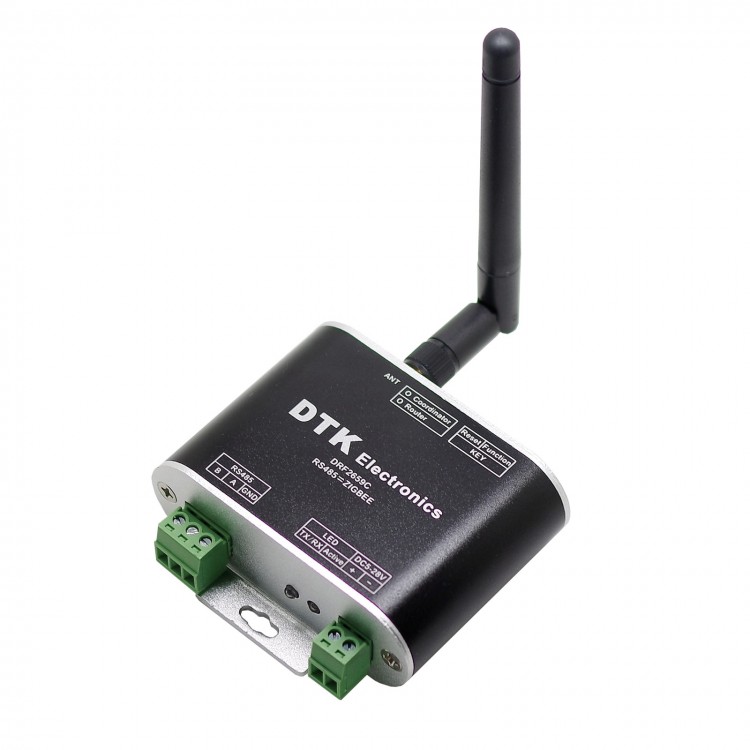

RS485 to ZigBee Wireless Module CC2630 Chip 1.6KM DRF2659C DC5V-28V

RS485 to ZigBee Wireless Module CC2630 Chip 1.6KM DRF2659C DC5V-28V

Product Details:
- This Zigbee module uses the CC2630 chip
- CC2630 chip is a dual ARM core-32-bit CPU chip, Cortex-M3 is responsible for handling
- Zigbee protocol, Cortex-M0 is responsible for wireless communication processing.
- Can form a larger and more stable network, and support a larger capacity data packets
- Zigbee module can set up a standard Mesh network for data transmission
- Automatically join the network (No need to set the Router, press function keys for three times, it can automatically find Coordinator and join the network)
- Automatic routing will automatically get the best routing path
- Dynamic routing maintenance, when a routing path is damaged, it can regain the best routing path
- Transparent data transmission, also can transport point to point to any node
- With the power of dual ARM-32-bit CPU, the module can support 200 automatic routing, in the application of different directions of street lighting control, a network can connect up to 500 lights (control lights on and off)
- The Zigbee module, with the DTK application software, can clearly know the structure of the entire ZigBee network (all nodes of the routing relationship, and all nodes between the signal strength), convenient for user to debug and form network

Specifications:
- Model: DRF2659C
- Size: 70mm x 50.5mm x 24mm
- Input Voltage: DC5V-28V
-Temperature Range: -40℃-+85℃
- Wireless Frequency: 2.4GHz (2460MHz)
- Serial Port Baud Rate: 115200bps
- Transmission Range: 1.6 km
- Working Current: average 25mA (@5V)
   when transmitting max 200mA (@5V)
- Receiving Sensitivity: -98dBm
- Configurable Point: Can be configured as Coordinator, Router
- Main Chipset: CC2630
- Comes with antenna
- Color: Black
- Material: Aluminum alloy housing
- G.W.: 0.25 kg

Package Included:
- 1 x RS485 to Zigbee Module
- 1 x Antenna
