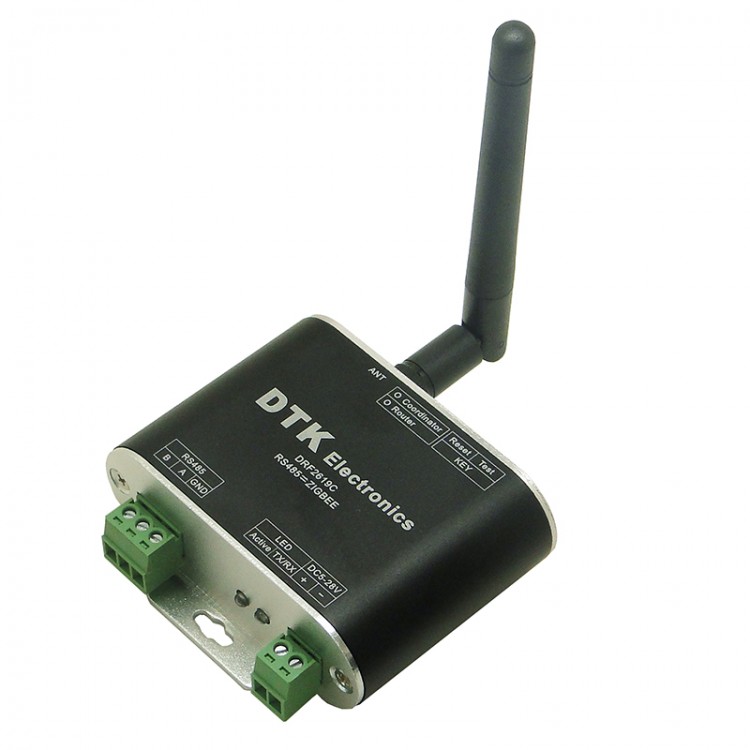

RS485 to Zigbee DRF2619C DC 5V-28V Wireless Module 1.6km Transmission CC2530 Chip
Specification:
- Model: DRF2619C
- Main functions: RS485, ZigBee wireless module
- Inside it intergartes DRF1605H, the function is the same as DRF1605H
- The visual transmission distance: 1.6 km
- Voltage: 5-28V
Feature:
- Input Voltage: DC 5V~28V
- Temperature Range: -40 ~ 85 Deg C
- Serial rate: 38400bps (default), can select 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
- Wireless Frequency: 2.4G(2460MHz), The user can change channels via a serial port instructions (2405MHz-2480MHz, step length: 5MHz)
- Wireless protocol: Zigbee 2007
- Transmission distance: Visible, open, transmission distance 1600M
- Working current: Launch: 150mA (Max), 100mA (on average) receiving : 55mA (Max) Standby: 45 mA (Max)
- Serial sensitivity: -110dBm
- Main chip: CC2530F256, 256KFLASH, T1 Company’s latest generation of Zigbee Soc Chip.
- Nodes can be configured: Can be configured to coordinator, Router. The factory default is: Router, PAN ID=0X199B, Channel=22(2460MHz)
- Interface: RS485 (D-/B, D-/A, GND ), Power supply (VCC, GND)
- Size: 70*50*24mm (Excluding antenna and fixed part)
Package included:
- 1 x Zigbee Wireless Module DRF2619C
- 1 x 2.4G Zigbee antenna
- 1 x CD
