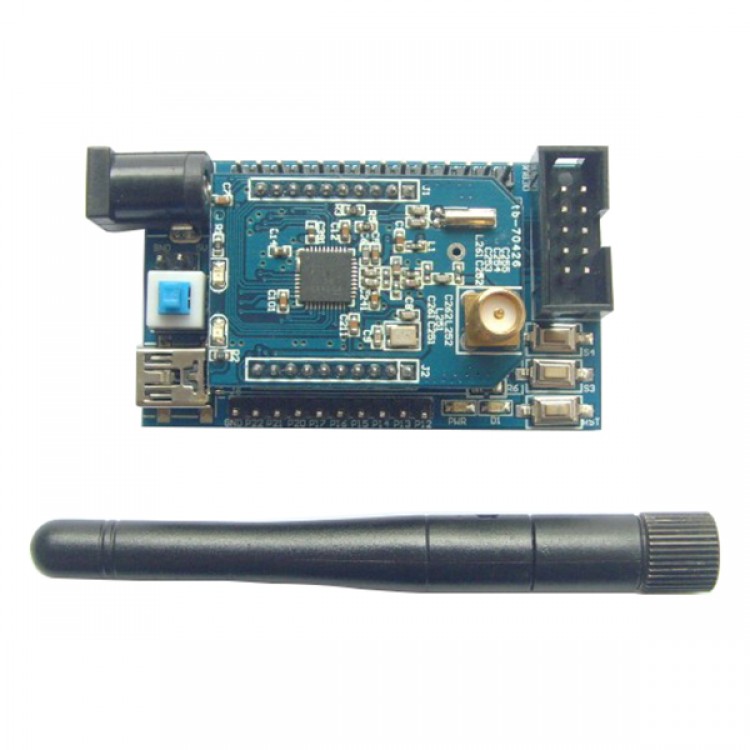

CC2530 ZigBee Wireless Development Board Development Kit
Description:
- This is a compact, powerful CC2530 module, comes with a battery box with antenna. it integrated USB and TTL interface,you can easily
choose the communication way, when you use the USB interface, you can use the USB to supply power .Integrated on the module port
10 core programming, using the CC2530 Debugger to modify and debug module internal procedures, at the same time, in order to
facilitate other external device, the module provide CC2530 I / O port, user-friendly.
Performance parameters:
- Input voltage: DC 2-3.6V/USB 5V
- Temperature Range:-40C - 85C
- Communication Interface: USB / TTL
- Wireless Frequency: 2.4GHz
- Transmission distance: the viewing distance of 200 meters
- Emission current: 34mA (max)
- Receiver current: 25mA (max)
- Receiver sensitivity:-96DBm
- Main chip: CC2530F256, 256K Flash, TI, the latest version of ZigBee SOC chip
