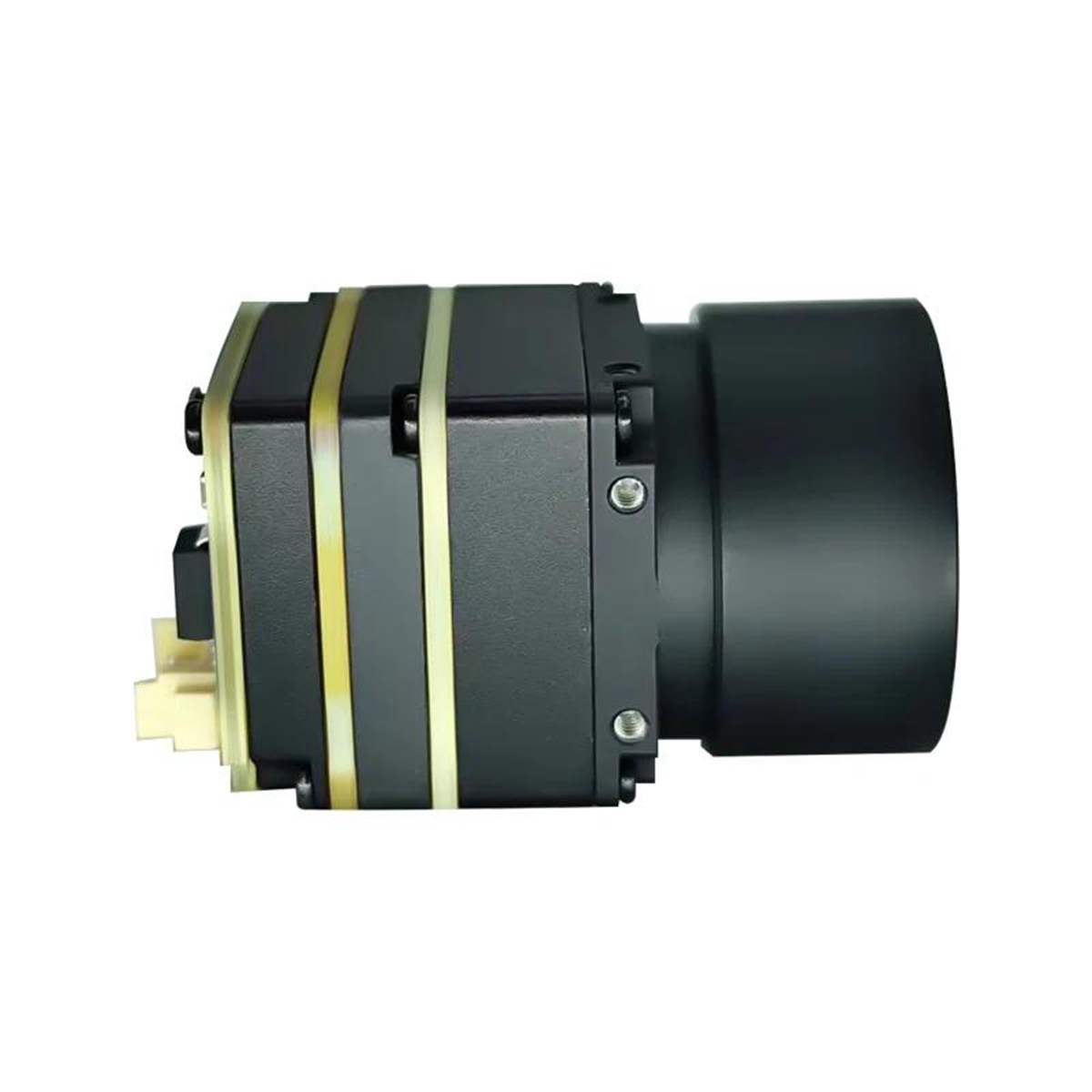

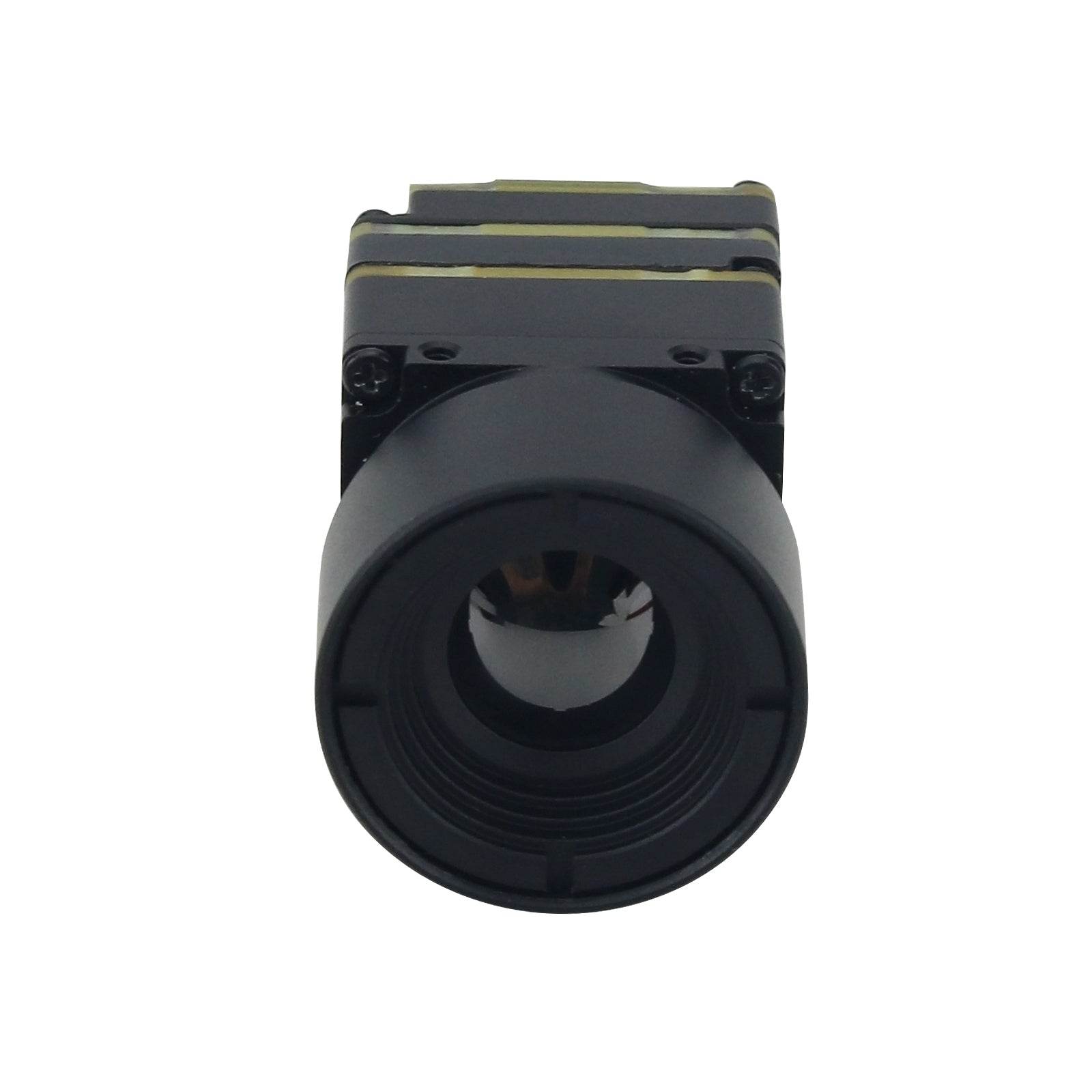

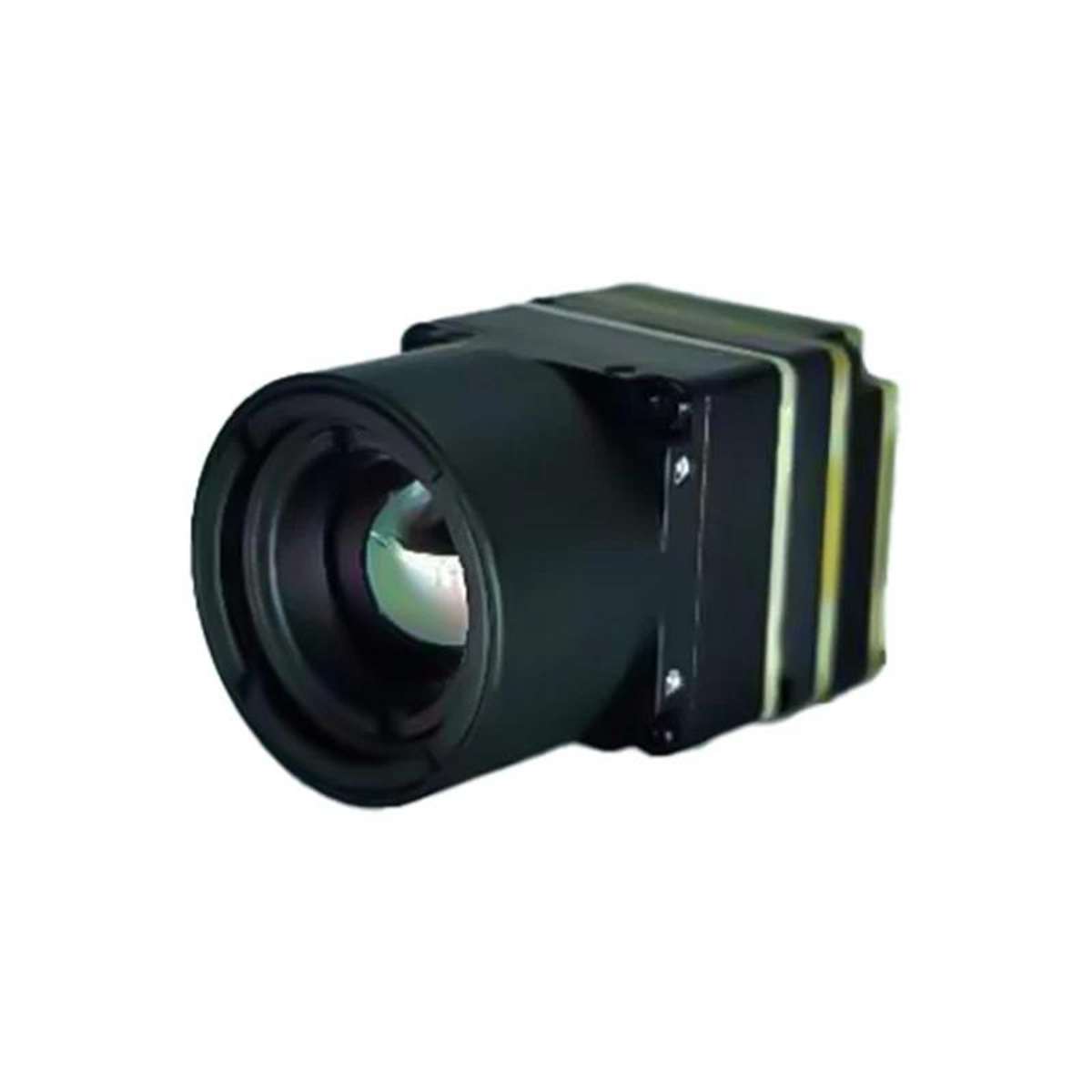

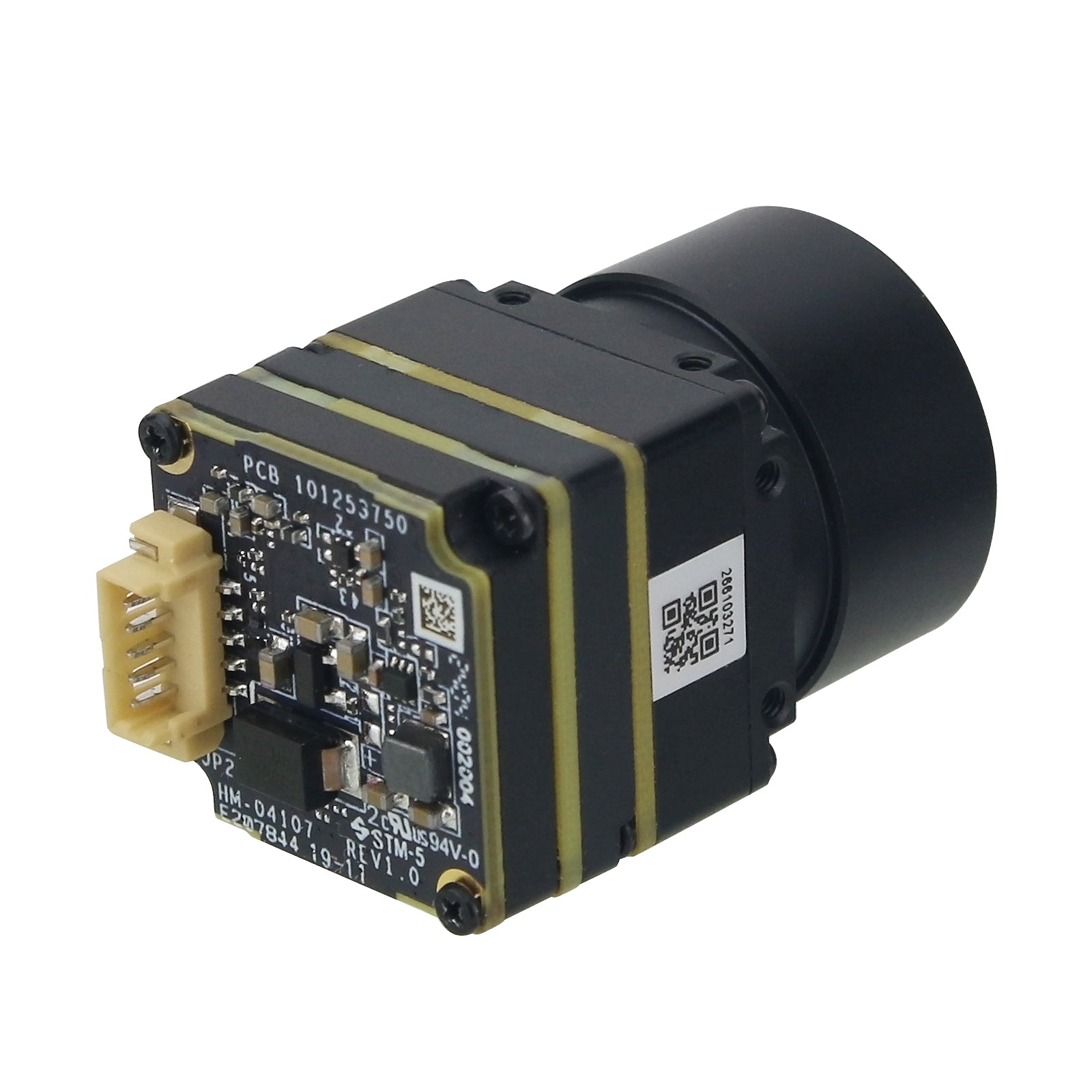

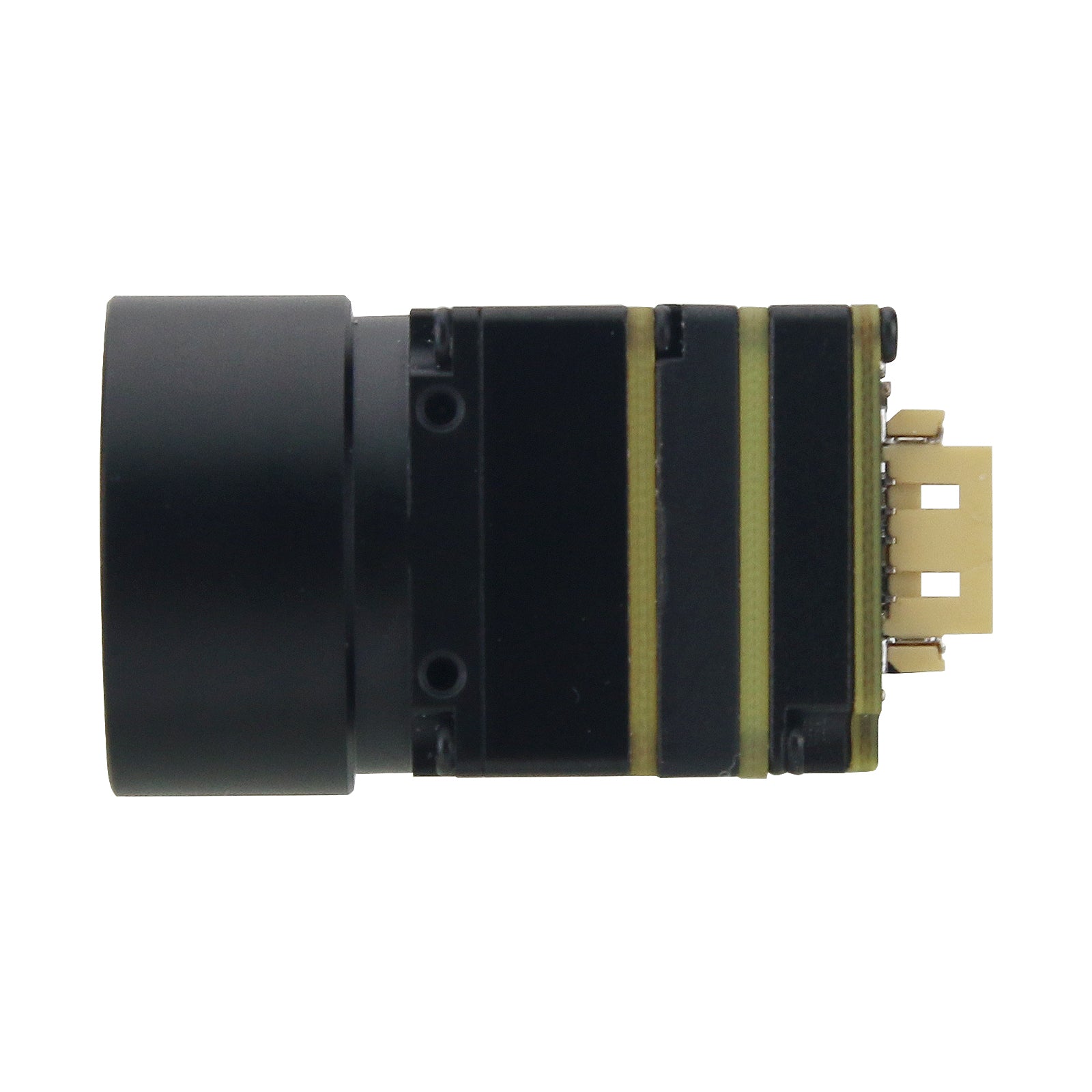

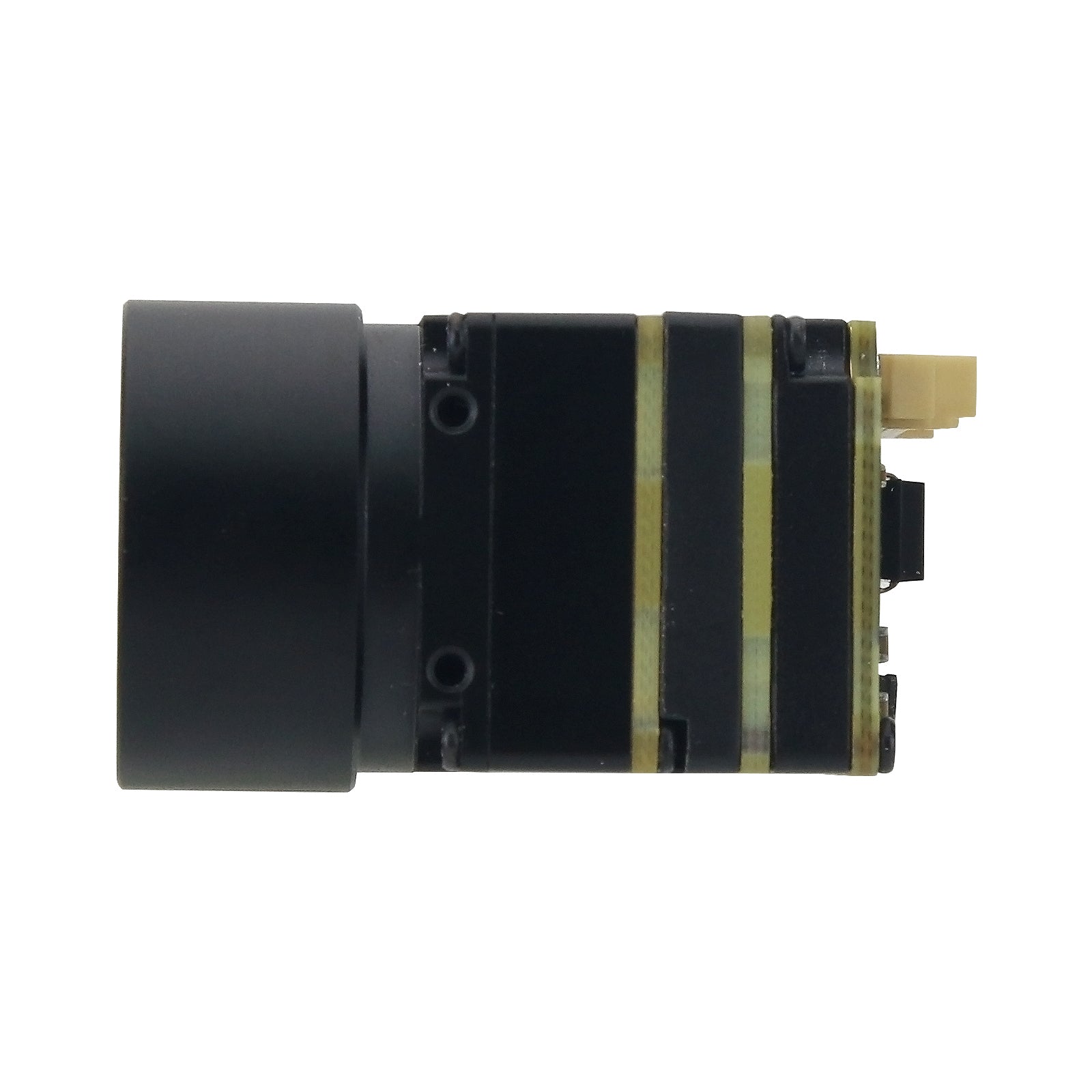

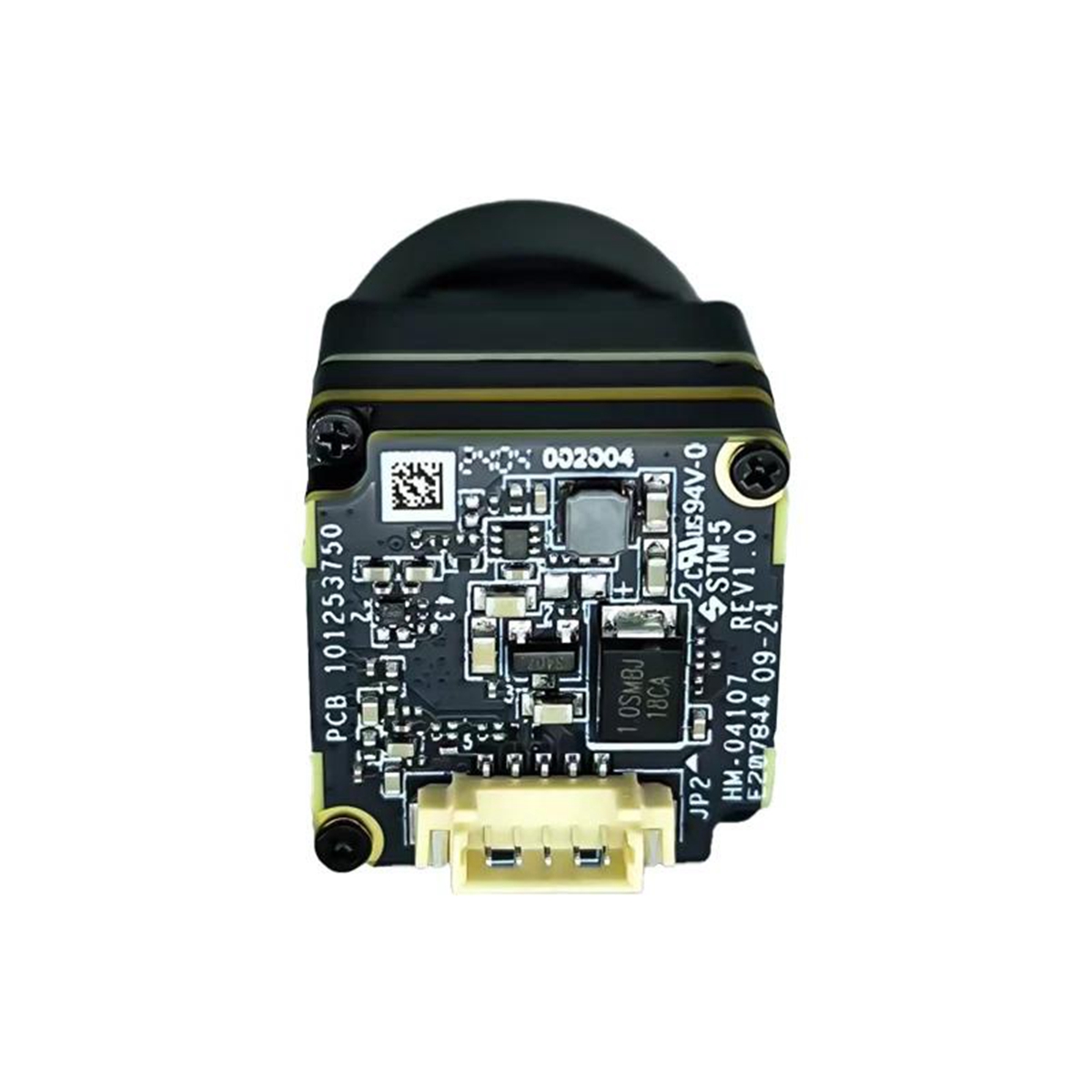

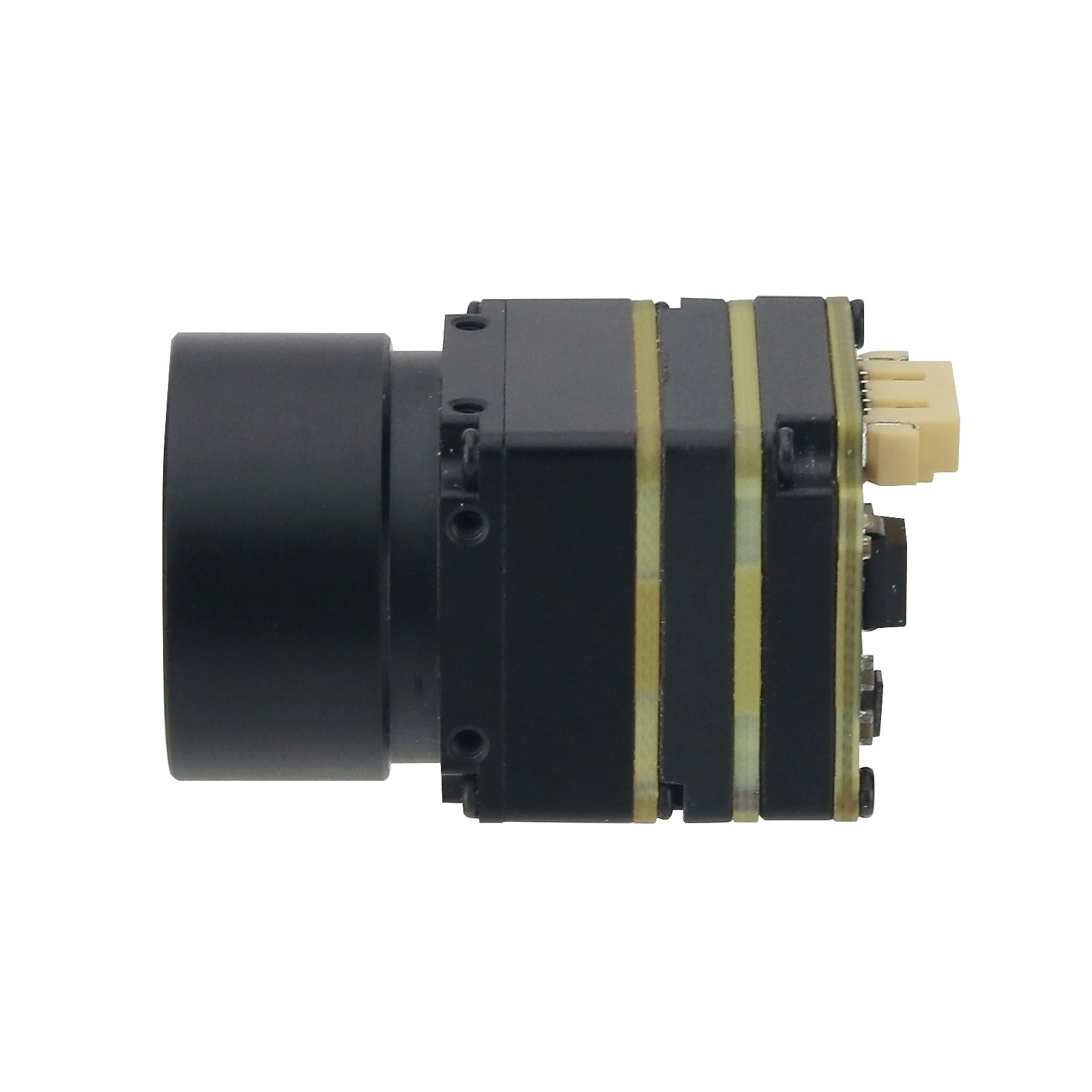

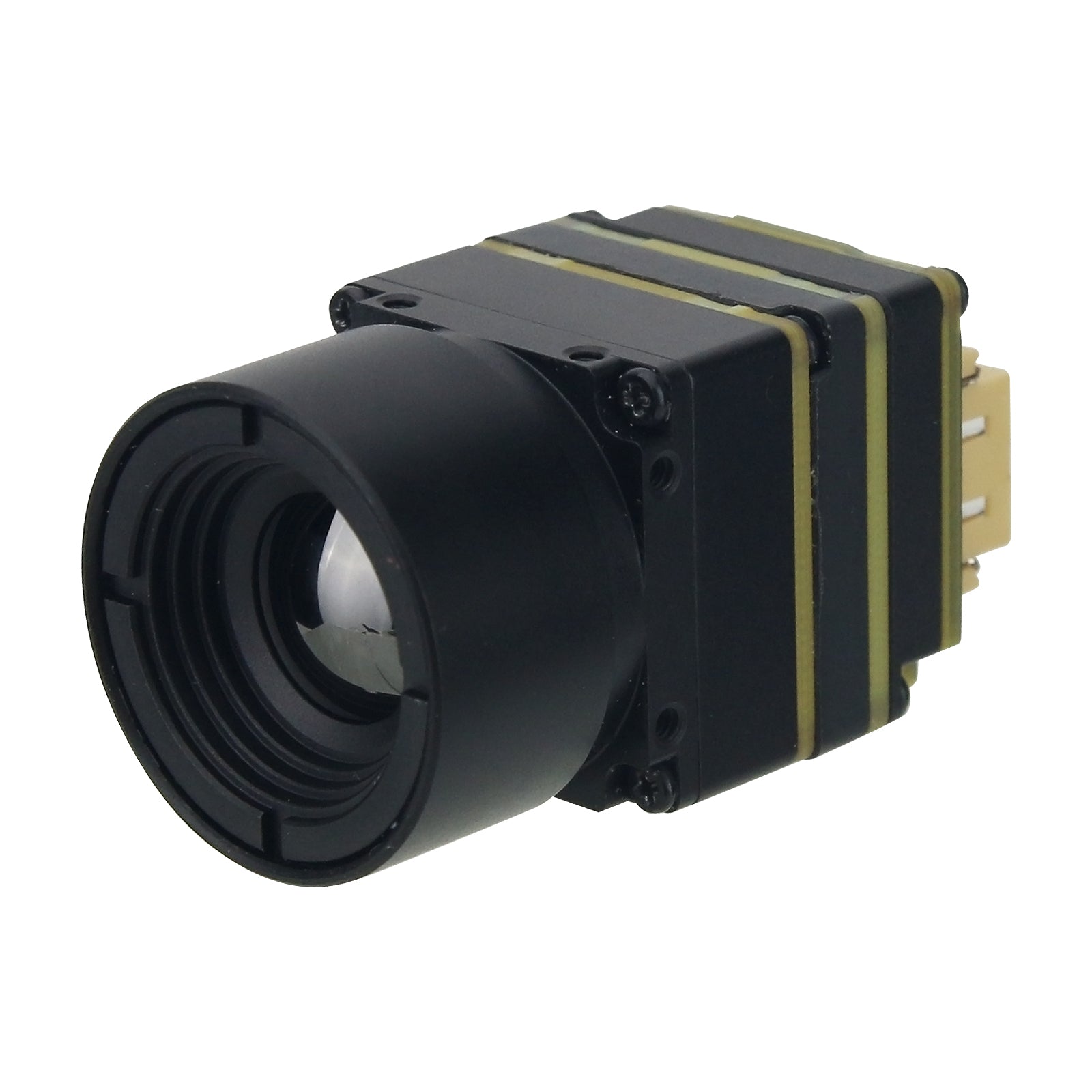

TZT 384X288 9.7MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module

TZT 384X288 9.7MM Lens Thermal Imager for FPV Drones with CVBS Interface Longwave IR 12um Micro Camera Module

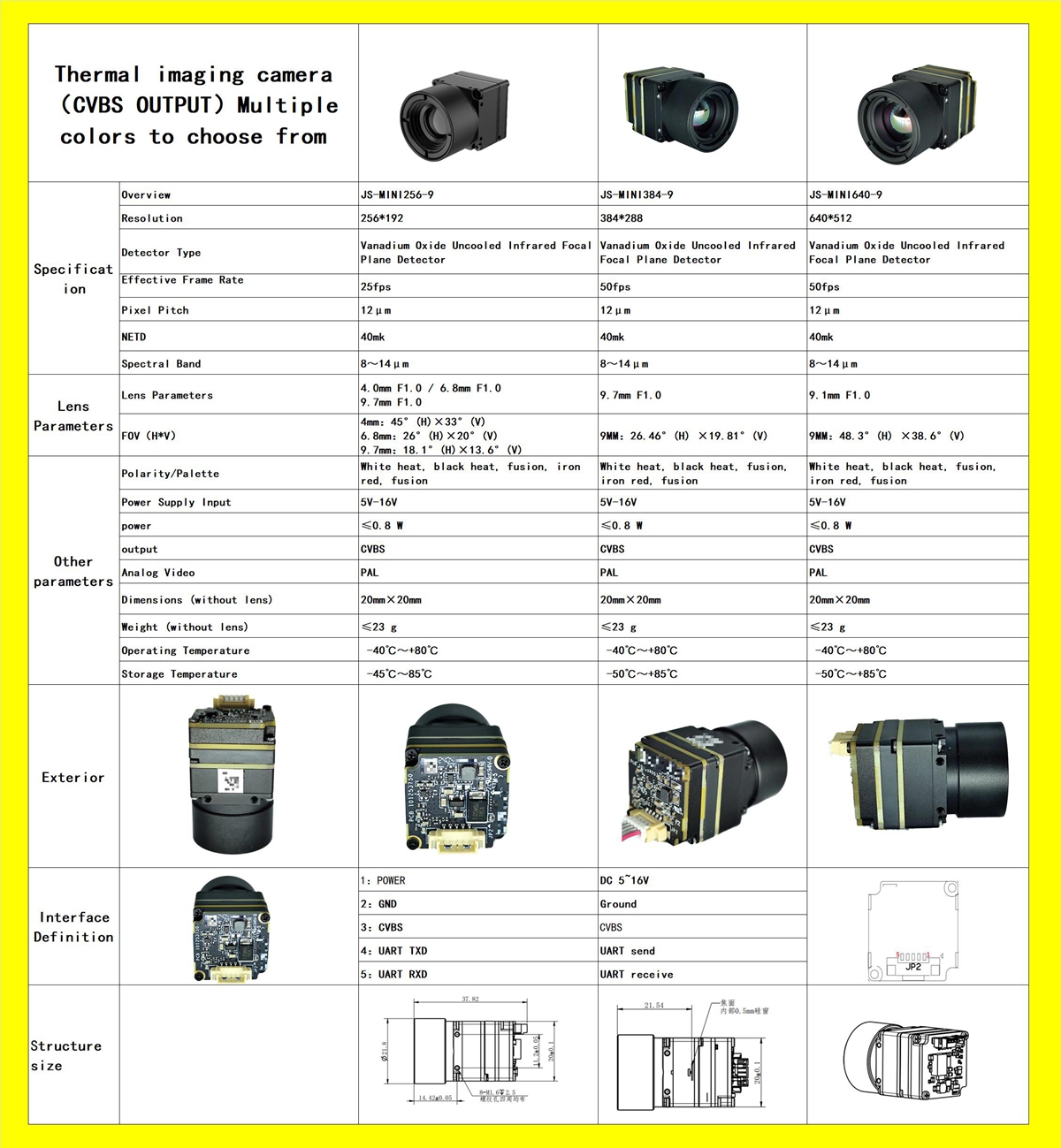

Specification:
- Resolution: 384 x 288
- Detector type: vanadium oxide uncooled infrared focal plane detector
- Effective frame rate: 50fps
- Pixel pitch: 12um
- NETD: 40mk
- Spectral band: 8 - 14um
- Lens parameters: 9.7mm F1.0
- FOV (HxV): 9mm: 26.46°(H) x 19.81°(V)
- Polarity/palette: white heat, black heat, fusion, iron red, fusion
- Power supply input: 5V - 16V
- Power: ≤0.8W
- Output: CVBS
- Analog video: PAL
- Product size (without lens): 20mm x 20m
- Weight (without lens): ≤23g
- Operating temperature: -40℃ ~ 80℃
- Storage temperature: -50℃ ~ 85℃

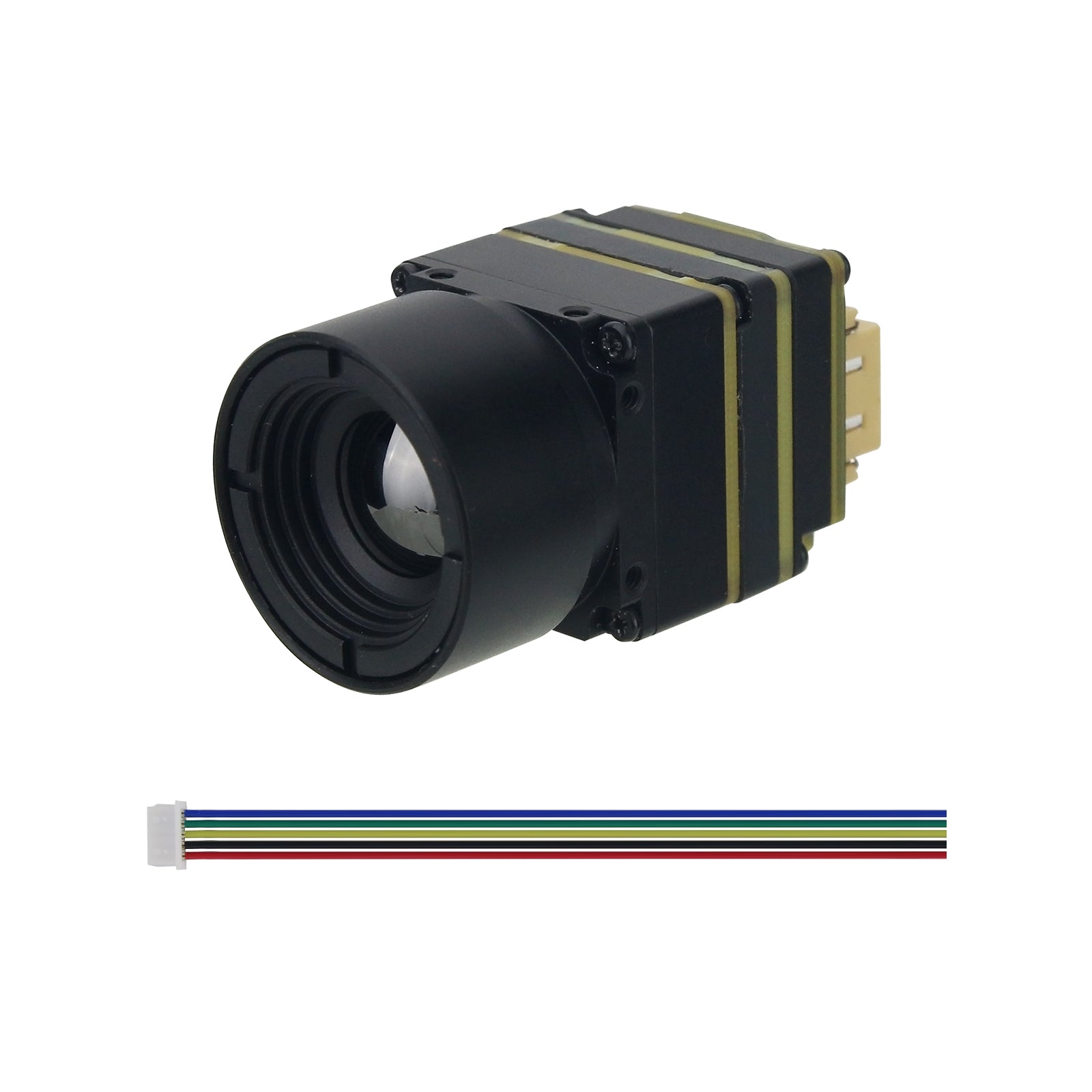

Package Included:
- 1 x Thermal Imager
