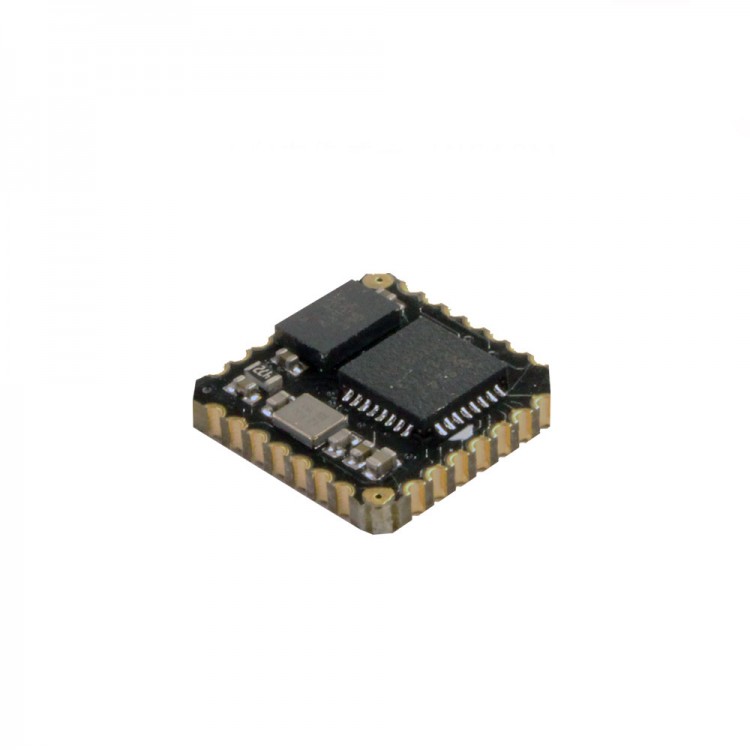

• Gyroscope Module Small Size Accelerometer 6 Axis Attitude Sensor Dip Angle Module Inertial Navigation

Gyroscope Module Small Size Accelerometer 6 Axis Attitude Sensor Dip Angle Module Inertial Navigation

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.95
  • Price in reward points: 330 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.29 $31.63 $30.64 $29.33 Contact US
Quantity:

Gyroscope Module Small Size Accelerometer 6 Axis Attitude Sensor Dip Angle Module Inertial Navigation


Specification:
- Product Modle: HI216M
- Size: 12*12*3mm
- Support: PLCC28
- Apply to: Intelligent Robot/VR Stabilization Platform/UAV,etc
- Angle of Pitch: -+90 degree
- Rolling Angle: -+180 degree
- Course Angle: -+180 degree
- Static Accuracy(Rolling angle&Angle of pitch): 0.3°RMS
- Dynamic Accuracy(Rolling angle&Angle of pitch): 1.0°RMS
- Dynamic Accuracy(Course angle): Low Drift
- Output Rate(Attitude&Course angle): 100Hz(Max.)
- Output Rate(Raw Data): 500Hz(Max.)
- Data Resolution: Rolling Angle: -+0.01degree;Angle of Pitch: -+0.01degree;Course Angle: -+0.10degree;

Electric Characteristic:
- Voltage: 3.3V
- Working Current: 0.02A
- Power Dissipation: 66mW
- Data Output Interface: Serial Port,115200(Adjustable)
- Temperature: -20~85 degree
