SAS3416-16i HBA 16-Port SAS/SATA/NVMe Expansion Card LSI SAS3416 Chip with Mini SAS SD SFF8643 Interface

Availability: In stock, usually dispatched in 1 business day

  • Price:$198.22
  • Price in reward points: 1982 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $194.26 $190.29 $184.34 $176.42 Contact US
Quantity:

SAS3416-16i HBA 16-Port SAS/SATA/NVMe Expansion Card LSI SAS3416 Chip with Mini SAS SD SFF8643 Interface

Specification:

- Model: AS3416-16i
- Connector: 4 Mini-SAS HD x 4 SFF-8643
- IO Controller: LSI SAS 3416
- Host bus type: PCI Express 3.1 x 8
- Port number: 16 ports
- Data transmission rate: 12Gb/s
- Supported devices: SAS/SATA: 1024; NVMe: 24
- PCI data burst speed: half-duplex x 8, PCIe3.0, 8000MB/s

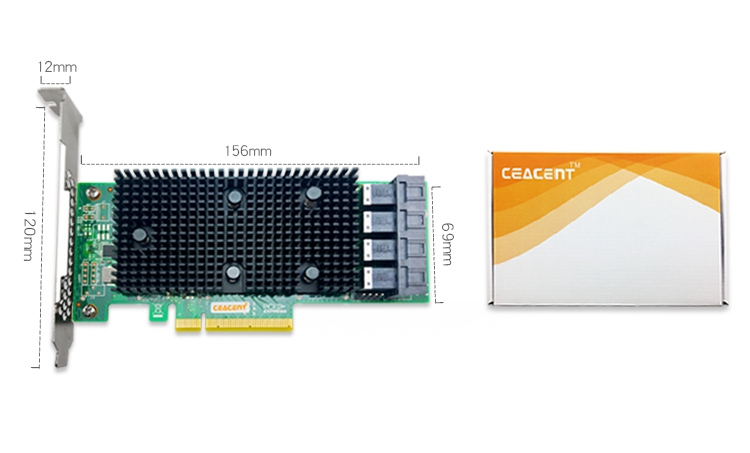

- Size: 156 x 69mm
- Weight: 320g
- PCI power: 11.95W (typical)
- Cable stand: purified copper
- MTBF: 40℃> 4,500,000 hours
- Bracket mount: full height/half height
- Operating temperature: 0℃ ~ 55℃
- Working humidity: 20% ~ 80%
- Supported operating system: for Microsoft Windows, for VMware vSphere/ESxi, for Red Hat Enterprise Linux, for SUSE Linux, for Ubuntu Linux, for Citrix XenServer, for CentOS Linux, for Debian Linux, for Oracle Enterprise Linux, for Fedora, for FreeBSD.

Package Included:
- 1 x Expansion Card
