Ultra-compact X635 Expansion Board Carrier Board HDMI to CSI-2 for CM4 M.2 NVME SATA SSD for Raspberry Pi
Description:
- The X635 is a ultra-compact carrier board specifically designed for Raspberry Pi compute module CM4.
- It supports M.2 NVMe SSD expansion board which offers an easy and fast way to create storage solution.
- At the same time, it adds HDMI to CSI-2 bridge that converts HDMI stream to MIPI CSI-2 TX. The CM4 has been designed without video streaming input port except CSI-2 for camera input, and this carrier board can be used with CM4 in several applications that required video input.
Caution:
- Don't power via X635 USB-C socket when connect another PC to X635 USB-A.
- To enable the CM4 to be updated via rpiboot, You have to put a jumper over the pins of "nBOOT" and "GND" on the 6-pin header.
- Please use only the screws(M2x3mm) for mounting the SSD come with this kit. Other screw size(length>3mm) will damage your Micro-SD card or the card socket.
Features:
- Takes in HDMI input and converts to CSI-2 that looks like a camcorder input
- HDMI Full HD acquisition based on the TC358743 chip
- HDMI input: 1080p30, 1080p25, 720p30, 720p25
- Supports HDMI audio acquisition via i2s
- Gigabit Ethernet socket supporting Power over Ethernet (POE) expansion
- HDMI output port supporting 4K display
- M.2 2242 KEY M socket for NVMe SSD storage expansion
- Supports booting from MicroSD, eMMC and faster M.2 2242 NVME SSD
- USB2.0 Type-A connector for external USB hub and programming the CM4 eMMC
- 26pin expansion header includes power pins and GPIO pins
- Small size measuring just 55 x 70 x 18mm
Power supply description:
- Power supply through 5V Type-C of X635
- But if the PC is connected to the X635 USB-A, the PC's USB will power the X635, so there is no need to connect additional power to the X635 Type-C.
User Manual:
- Details: wiki.geekworm.com/X635
- Hardware: wiki.geekworm.com/X635-Hardware
- Software: wiki.geekworm.com/X635-Software
- Heatsink use: https://item.taobao.com/item.htm? spm=a21dvs.23580594.0.0.1d293d0dyAuUuZ&ft=t&id=642011770900

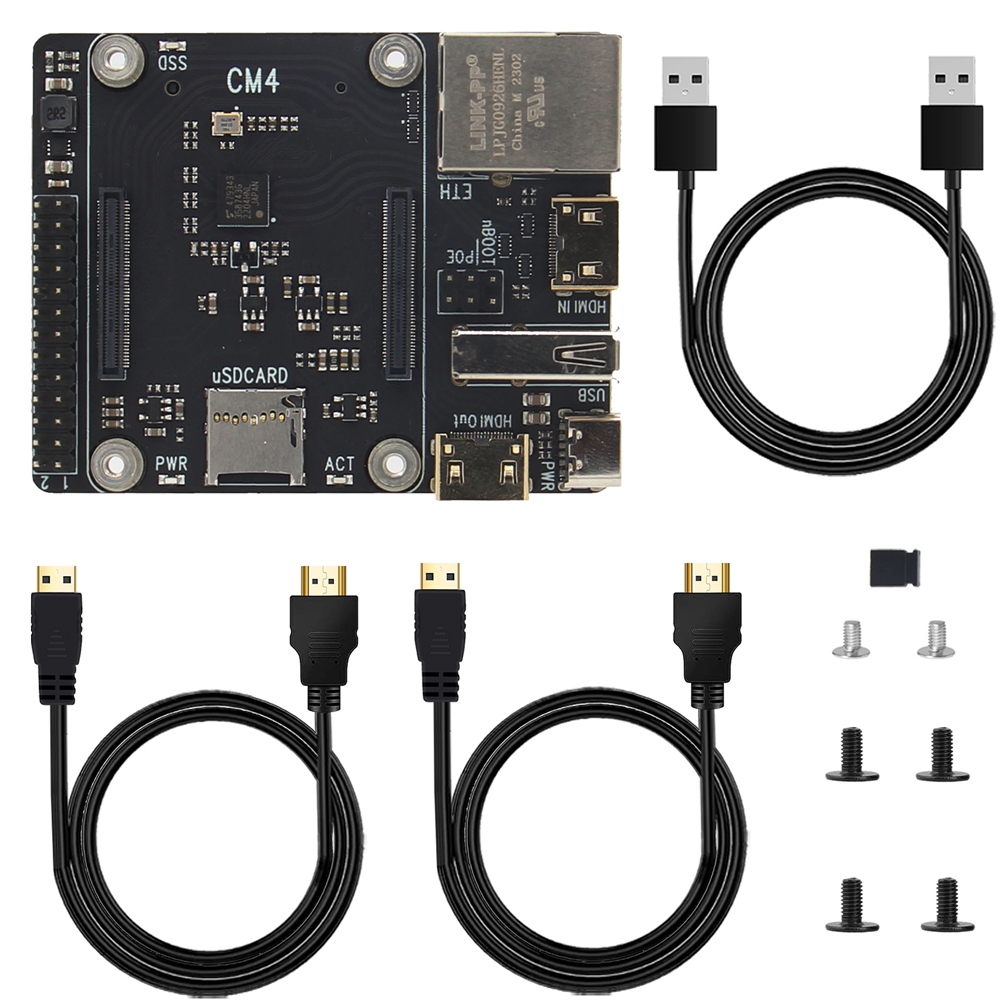

Package Included:
- 1 x X635 V1.2 Expansion Board
- 1 x USB2.0 to USB2.0 Cable (Length: 45cm/17.72inch)
- 2 x Mini HDMI to HDMI Cable (Length: 50cm/19.69inch)
- 1 x Screws Pack
