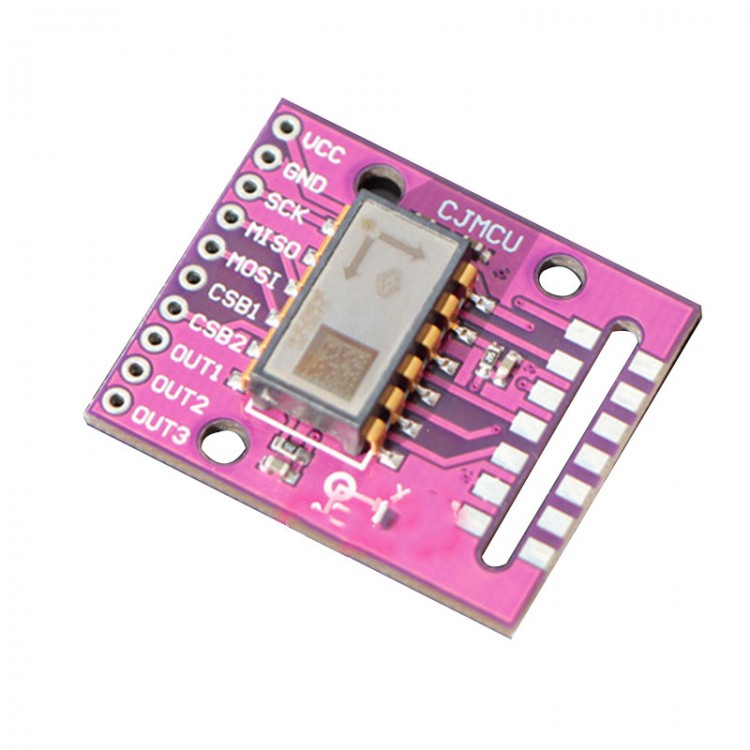

SCA100T-D02 CJMCU-100 High Precision Dual Axis Tilt Sensor Module +- 90 Degree for DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$34.60
  • Price in reward points: 346 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.91 $33.22 $32.18 $30.79 Contact US
Quantity:

SCA100T-D02 CJMCU-100 High Precision Dual Axis Tilt Sensor Module +- 90 Degree for DIY

Specifications:

- Model: SCA100T-D02 CJMCU-100
- Axis number: biaxial
- Bandwidth: 18Hz
- Sensitivity: 35mV/degree; 2V/g;
- Temperature drift: + 0.008 degrees C
- Range: +- 90 degrees; +- 1g
- Output mode: SPI; simulation
- Power supply: +5V

Description:
CJMCU-100 a measurement of the angle of 90 degrees in the dual axis tilt sensor chip, the product is based on 3D-MEMS technology, to provide the level of instrument / instrument level measurement performance. The measuring axis of the internal two sensor is parallel to the mounting plane and is orthogonal to each other. The low temperature drift, high resolution, low noise and robust design make the SCA100T an ideal choice for the horizontal instrument. The tilt angle sensor is better able to resist vibration, and can withstand up to 20000g shock.
Detailed description of the parameters to the official website of the chip manual.

Package including:
- 1*Tilt Sensor Module
