| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $41.74 | $40.89 | $39.61 | $37.91 | Contact US |

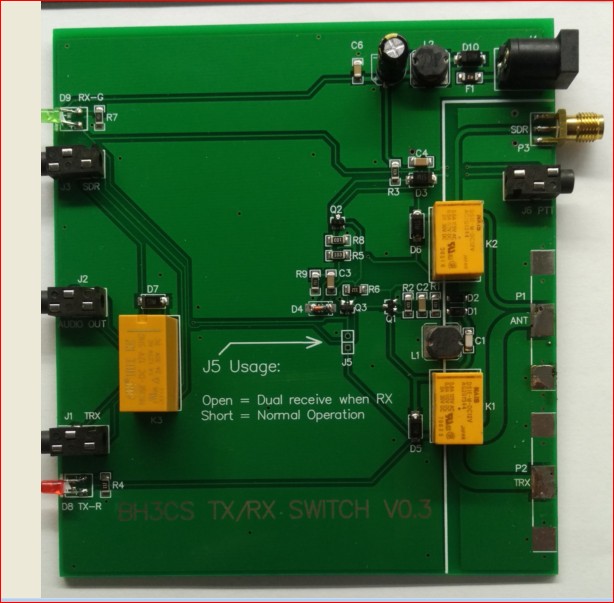

SDR Transceiver Switch Antenna Sharer Sharing Device 160MHz TR Switch Box
Specification:
Impedance: 50Ω
Frequency range: DC-160MHz
Maximum TX power: 100W
RF sense threshold:<10mW (1.8MHz-30MHz tested)
ON time < 20ms / Release time: < 190ms
Insertion loss: < 0.3dB @ 144MHz (0.2dB typical)
RX isolation: > 38dB @ 144MHz (40dB typical)
Power supply: 13.8V DC 200mA
Function: gas discharge protection
Weight: 430g
Package List:
1 x Host
1 x Power Cable
1 x 60cm SMA to SMA Cable
1 x 4PTT Control Cable
